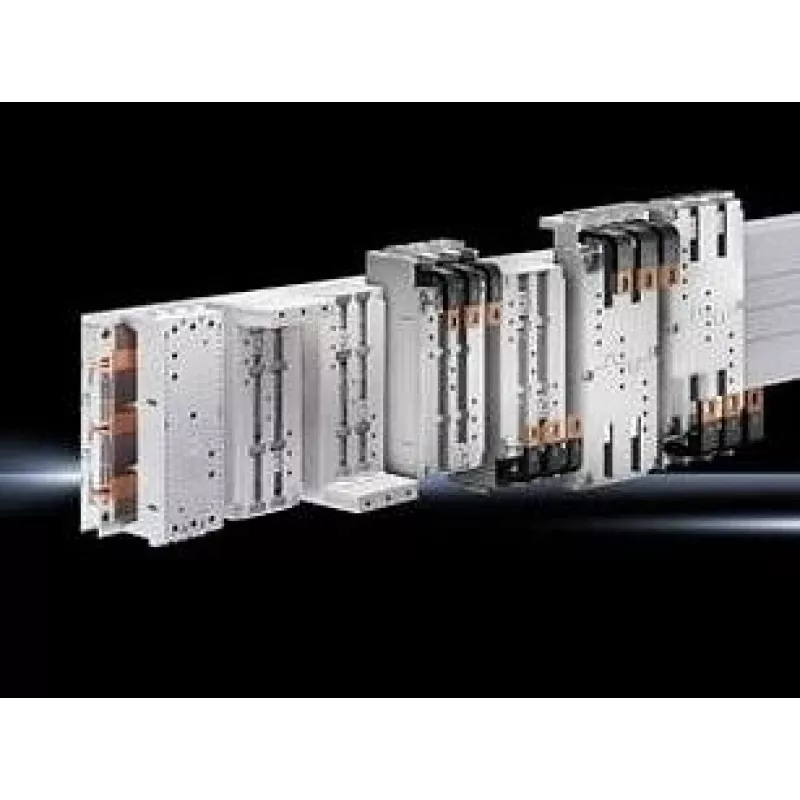

Rittal SV Device Adapter 9342.400 for Busbar Mounting, 72x210mm, Polyamide, RAL 7035

Mounting circuit breakers and switchgear directly onto busbar systems often requires custom brackets or time-consuming modifications. The Rittal SV Device Adapter 9342.400 eliminates this hassle by providing a ready-to-use, snap-on interface for your SV busbar assembly. Its compact 72 mm x 210 mm footprint and robust polyamide construction make it an essential component for building safe, organized power distribution panels.

Who is it for

Panel builders, electrical installers, and maintenance technicians working with Rittal SV busbar systems will appreciate this adapter's straightforward installation. It is ideal for control cabinets, machine enclosures, and industrial power distribution units where space is at a premium and reliability is non-negotiable.

Main features

• Compatible with Rittal SV busbar systems with 60 mm spacing
• Accepts busbar thicknesses of 5 mm and 10 mm
• Durable grey polyamide body, RAL 7035 finish
• Vertical mounting orientation for efficient use of panel depth
• IP20 protection rating when installed correctly within an enclosure
• Operating temperature range from -5 °C to +55 °C

Specifications

• Product type: Device adapter
• Series: SV
• Width: 72 mm
• Height: 210 mm
• Depth: 40 mm
• Material: Polyamide
• Colour: Grey (RAL 7035)
• Busbar spacing: 60 mm
• Busbar thickness compatibility: 5 mm, 10 mm
• Mounting type: Direct on busbar
• Installation position: Vertical
• Protection category: IP20
• Operating temperature: -5 °C to +55 °C

Tips

Before ordering, verify that your busbar system matches the SV series with 60 mm spacing. For optimal safety, always install the adapter inside a properly rated enclosure to maintain the IP20 protection. Pair with Rittal SV busbar supports and end caps for a complete, code-compliant assembly.
