Rittal SV 3572.005 Laminated Copper Busbar 2000 mm, 120 mm², 2000 A, Flexible, Uninsulated, for RiLine60

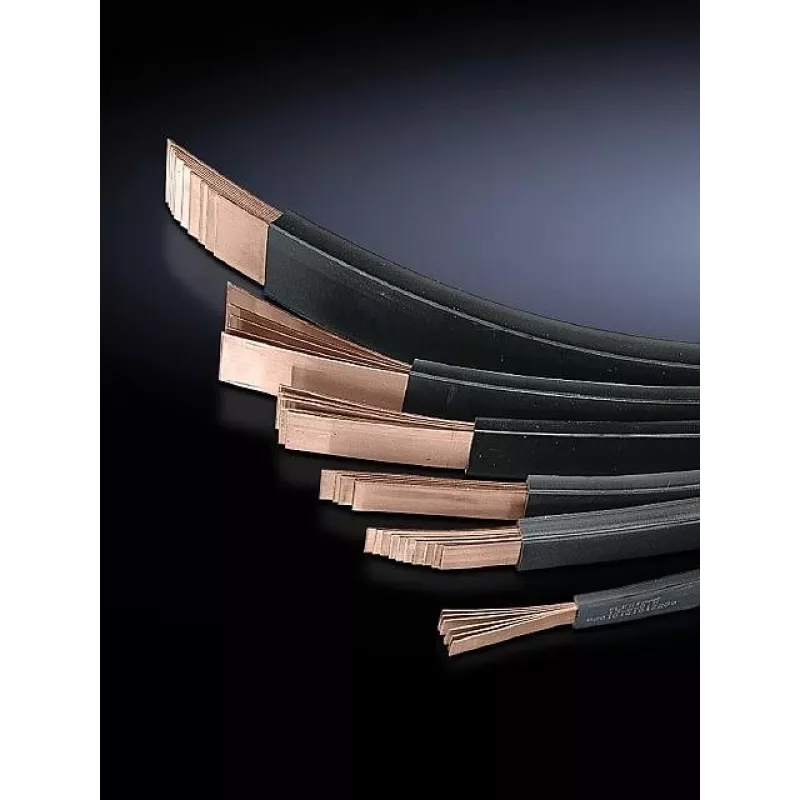

The Rittal SV 3572.005 stands out among power distribution components due to its laminated copper construction, which combines high current-carrying capacity with remarkable flexibility. Unlike rigid busbars, this 2000 mm bar can be easily bent and shaped to fit complex layouts in switchgear and controlgear assemblies, simplifying installation and reducing the need for custom-fabricated connectors.

Highlights

• Laminated design with 10 individual copper laminations, each 0.6 mm thick, providing flexibility without compromising conductivity.
• High current rating of up to 2000 A, suitable for demanding power distribution tasks.
• Made from electrolytic copper (E-Cu) for excellent electrical performance and corrosion resistance.
• Designed for seamless integration with Rittal RiLine60 busbar systems, ensuring compatibility with a wide range of components.
• Uninsulated copper surface allows for direct connection and custom insulation as needed.

In daily use

In practical applications, the SV 3572.005 proves invaluable in control cabinets and power distribution units where space is limited and routing is complex. Its flexibility allows electricians to route the busbar around obstacles and through tight spaces without the need for specialized bending tools. The 2000 mm length provides ample material for multiple connections, and the 120 mm² cross-section ensures low voltage drop even under high loads. The natural copper finish is ready for immediate use or can be insulated with heat-shrink tubing or other protective coverings according to project requirements.

Full specifications

• Material: E-Cu (Electrolytic Copper)
• Busbar type: Laminated
• Length: 2000 mm
• Nominal cross-section: 120 mm²
• Rated current (max.): 2000 A
• Number of laminations: 10
• Individual lamination width: 20 mm
• Individual lamination thickness: 0.6 mm
• Total copper width: 20 mm
• Total copper thickness: 6 mm
• Flexibility: Flexible
• Application: Power distribution in switchgear and controlgear
• Compatibility: Rittal RiLine60 busbar systems
• Insulation status: Uninsulated
• Colour: Copper (Natural)
• Weight per meter: 1.075 kg/m

Final note

For professionals seeking a reliable, high-current busbar that adapts to the demands of modern electrical installations, the Rittal SV 3572.005 delivers both performance and versatility. Its laminated copper construction ensures long-term durability and ease of use, making it a smart choice for any RiLine60-based system.
