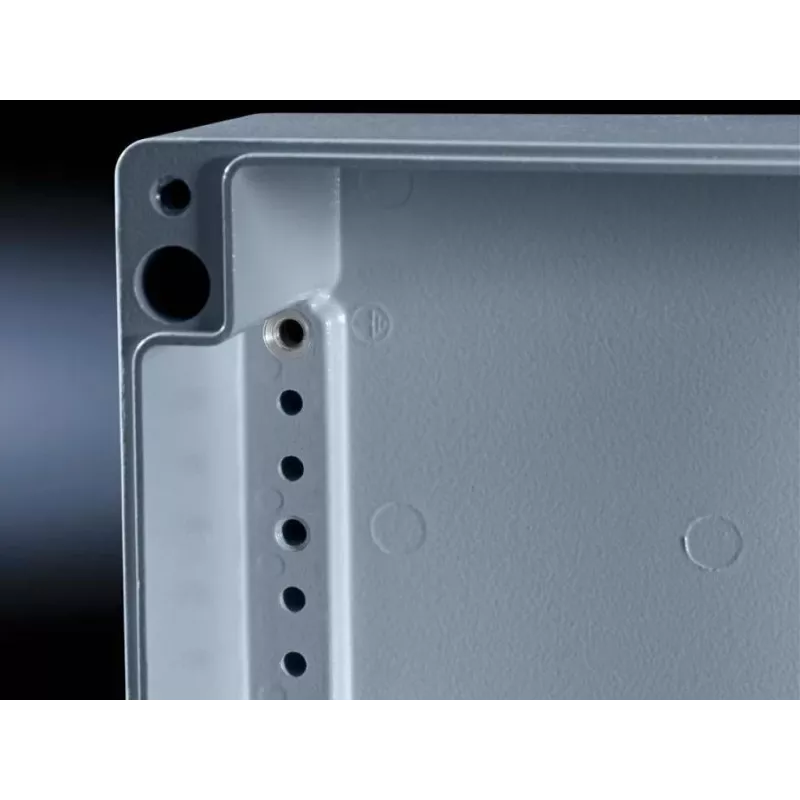

Rittal 9119.210 Universal Enclosure 330 x 181 x 230 mm Die-cast Aluminium Silver Grey RAL 7001 IP66 IK08

Built for demanding industrial environments, the Rittal 9119.210 universal enclosure combines rugged die-cast aluminium construction with a compact yet spacious 330 x 181 x 230 mm footprint. Unlike flimsy sheet-steel boxes, this unit delivers IP66 protection and IK08 impact resistance, ensuring reliable safeguarding of electrical and electronic components even under harsh conditions.

Highlights

• Die-cast aluminium body with powder-coated silver grey finish (RAL 7001)
• IP66 protection against dust and powerful water jets
• IK08 impact resistance for mechanical durability
• Includes mounting plate and gland plate for easy installation
• Wall-mountable design with screw-fastened cover
• Wide operating temperature range from -40 °C to +80 °C

In daily use

This universal enclosure simplifies installation and maintenance. The included mounting plate provides a stable base for DIN rails, terminals, or custom assemblies, while the gland plate allows clean cable entry without compromising the seal. The screw-fastened cover ensures a secure closure, and the powder-coated surface resists corrosion and scratches, keeping the enclosure looking professional even in tough settings.

Full specifications

• External dimensions: 330 mm height x 181 mm width x 230 mm depth
• Material: Die-cast aluminium
• Colour: Silver grey (RAL 7001)
• Protection rating: IP66
• Impact resistance: IK08
• Surface finish: Powder-coated
• Mounting plate: Included
• Gland plate: Included
• Cover fastening: Screw-fastened
• Mounting type: Wall-mountable
• Operating temperature range: -40 °C to +80 °C
• Supply includes: Enclosure with cover, cover screws, mounting plate, gland plate, sealing

Final note

For engineers and installers who refuse to compromise on protection and longevity, the Rittal 9119.210 delivers a robust, ready-to-use housing that stands up to the toughest conditions.
