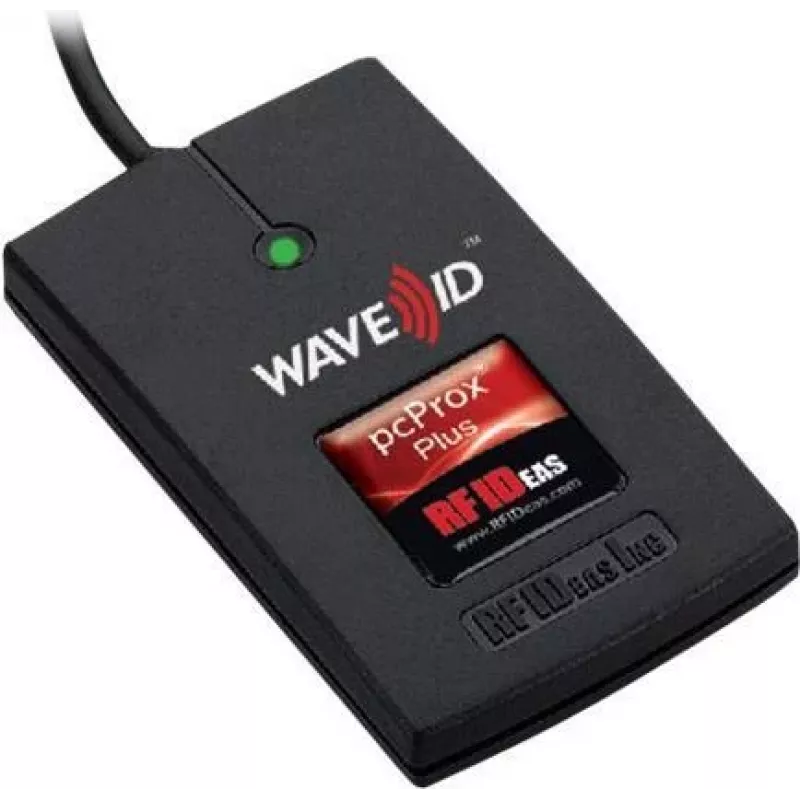

RF IDeas WAVE ID Plus Keystroke RA FactoryTalk V2 Black Surface Mount Reader

RFID proximity card reader with dual-frequency support for 125 kHz and 13.56 MHz credentials, delivering keystroke emulation over USB for seamless integration with Rockwell Automation FactoryTalk environments. Its surface-mount design and black ABS housing make it a discreet yet durable addition to industrial workstations.

Advantages

Supports a broad range of card technologies including HID Prox, iCLASS, MIFARE, and PIV/CAC, ensuring compatibility with existing badge systems. Keystroke emulation eliminates the need for custom drivers or middleware, allowing rapid deployment. The tri-color LED and audible beeper provide clear user feedback, while the wide operating temperature range (-30°C to 65°C) suits harsh industrial settings.

Suitable for

• FactoryTalk View SE/ME operator stations requiring secure user authentication
• AssetCentre workstations tracking tool and equipment access
• Manufacturing floors, warehouses, and clean rooms with varying environmental conditions
• Organizations standardizing on Rockwell Automation software and HID or MIFARE badges

Key specifications

• Frequencies: 125 kHz (LF) and 13.56 MHz (HF)
• Interface: USB 2.0, HID keystroke emulation
• Read range: 2.5 – 7.6 cm (1 – 3 inches)
• Operating temperature: -30°C to 65°C (-22°F to 150°F)
• Humidity: 5% to 95% non-condensing
• Power: 5V DC via USB, <100 mA
• Housing: ABS plastic, black
• Certifications: FCC, CE, RoHS, IC

Recommendations

Pair with FactoryTalk AssetCentre for centralized audit trails and badge management. For optimal read performance, mount on a flat, non-metallic surface away from electromagnetic interference. Field-upgradable firmware ensures compatibility with future card technologies.
