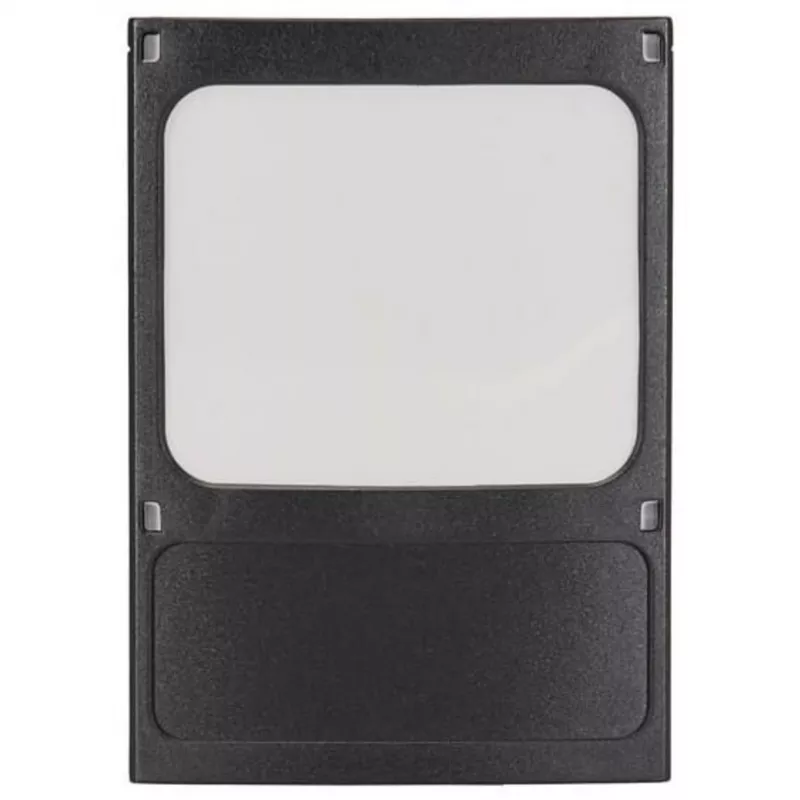

Raytec VAR-I8-LENS-12050 Interchangeable Lens - 120° x 50° Elliptical - Black - for VARIO i8 Series

The Raytec VAR-I8-LENS-12050 is a high-quality interchangeable lens designed specifically for the Raytec VARIO i8 Series illuminators. This elliptical beam lens provides a wide 120° horizontal by 50° vertical coverage, allowing you to customize the light distribution for optimal illumination in CCTV, security, and surveillance applications. Crafted from high-grade optical polymer with a durable ABS plastic housing, this lens ensures excellent optical clarity and light transmission. Its quick-change, slide-in design makes installation simple and user-replaceable, while maintaining the illuminator's IP rating for environmental suitability.

Advantages

Customize your illuminator's beam pattern with ease using the Raytec VAR-I8-LENS-12050. The elliptical beam shape is ideal for covering wide areas with a controlled vertical spread, reducing light spill and improving efficiency. The high-grade optical polymer lens delivers superior light transmission, enhancing the performance of your VARIO i8 illuminator. The durable ABS housing and quick-change mechanism ensure long-lasting reliability and hassle-free installation.

Suitable for

• CCTV and security surveillance systems requiring tailored illumination
• Area illumination where a wide horizontal and narrow vertical beam is needed
• Raytec VARIO i8 Series illuminator users seeking beam shaping flexibility

Key specifications

• Product Type: Interchangeable Lens
• Compatibility: Raytec VARIO i8 Series Illuminators
• Beam Angle: 120° x 50° (Elliptical)
• Optical Design: Wide Angle, Elliptical Beam
• Lens Material: High-grade Optical Polymer
• Housing Material: Durable ABS Plastic
• Colour: Black
• Application: CCTV, Security, Surveillance, Area Illumination
• Installation Type: Slide-in / User-replaceable
• Series: Raytec VARIO i8
• Function: Beam Shaping and Light Distribution
• Purpose: To customize illuminator coverage
• Environmental Suitability: Designed to maintain illuminator's IP rating when installed
• Manufacturer: Raytec
• Manufacturer Part Number (MPN): VAR-I8-LENS-12050
• EAN: 5055877500202
• Optical Clarity: High
• Light Transmission: Optimized for LED Illumination
• Weight: 0.05 kg
• Mounting Mechanism: Quick-change

Recommendations

For optimal performance, ensure compatibility with Raytec VARIO i8 Series illuminators. This lens is designed to be user-replaceable and maintains the illuminator's IP rating when properly installed. Always follow the manufacturer's installation guidelines.
