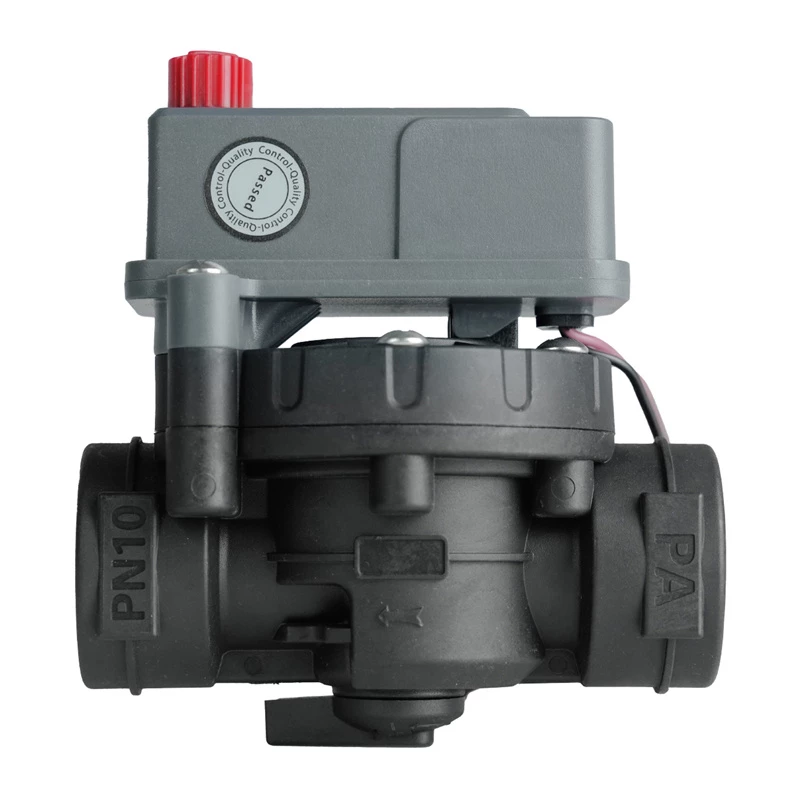

RAINPOINT 1 Inch AC Electronic Irrigation Valve

The RAINPOINT 1 AC Electronic Irrigation Valve is a high-quality solenoid valve designed for automated irrigation systems. Engineered for reliability and efficiency, this 1-inch valve ensures precise water control for gardens, lawns, and agricultural applications.

Advantages

This valve features a durable high-grade nylon body reinforced with fiberglass, providing long-lasting performance even in demanding environments. The encapsulated low-power solenoid offers excellent energy efficiency and is rated IP68 for waterproof protection. With a manual override flow control knob, you can easily adjust water flow or operate the valve manually if needed.

Suitable for

• Automated garden and lawn irrigation systems
• Agricultural irrigation
• Greenhouse watering
• Landscape irrigation

Key specifications

• Valve Type: Electronic Solenoid Valve
• Connection Size: 1 inch
• Connection Type: Female Thread (BSP)
• Operating Voltage: 24V AC
• Operating Pressure Range: 0.5 - 10 bar (7.25 - 145 PSI)
• Max Flow Rate: 30 m³/h (500 L/min)
• Body Material: High-grade Nylon with Fiberglass
• Diaphragm Material: NBR (Nitrile Butadiene Rubber)
• Solenoid Type: Encapsulated, Low Power
• Manual Override: Yes (Flow Control Knob)
• Filtration Requirement: 120 mesh
• Operating Temperature Range: 4°C to 60°C
• Power Consumption: 4.8 VA
• Ingress Protection (IP) Rating: IP68 (Solenoid)
• Mounting Orientation: In-line

Recommendations

For optimal performance, install a 120 mesh filter upstream of the valve. Ensure the power supply provides stable 24V AC. This valve is compatible with most standard irrigation controllers.
