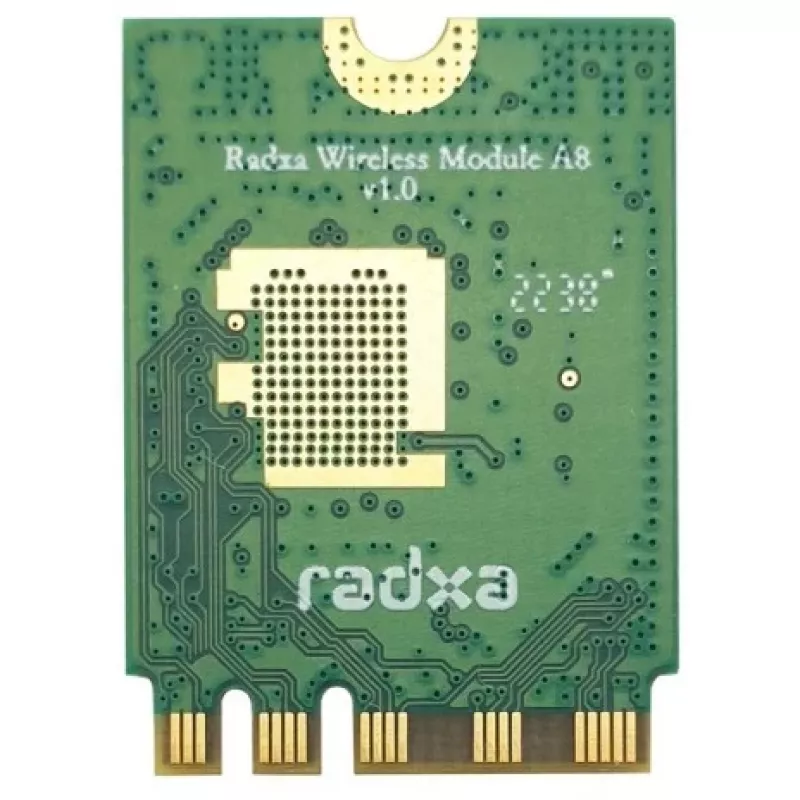

RADXA RA007-A8 M.2 WiFi 6 and Bluetooth 5.2 Wireless Module (Intel AX200)

Upgrading your single-board computer or embedded system with reliable, high-speed wireless connectivity can be a challenge, especially when space is at a premium. The RADXA RA007-A8 M.2 WiFi 6 and Bluetooth 5.2 Wireless Module solves this by packing the powerful Intel Wi-Fi 6 AX200 chipset into a compact M.2 2230 Key E form factor. This module delivers next-generation Wi-Fi 6 performance with data rates up to 2.4 Gbps, ensuring smooth streaming, fast file transfers, and low-latency gaming or industrial IoT communications. Bluetooth 5.2 adds efficient, stable connections for peripherals like keyboards, mice, and audio devices, all while consuming minimal power.

Who is it for

This module is ideal for makers, developers, and system integrators working with Radxa Rock Pi boards or any device featuring an M.2 Key E slot. It's perfect for building high-performance wireless routers, IoT gateways, media centers, or robotics projects that demand robust connectivity. Whether you're deploying a fleet of industrial sensors or creating a portable entertainment system, the RA007-A8 provides the wireless backbone you need.

Main features

• Wi-Fi 6 (802.11ax) technology with 2x2 MIMO for faster, more efficient connections
• Dual-band operation on 2.4 GHz and 5 GHz frequencies, including 160 MHz channel support
• Bluetooth 5.2 for modern, low-energy peripheral connectivity
• Compact M.2 2230 Key E form factor for easy integration into space-constrained designs
• Advanced security with WPA3 encryption support
• Backward compatible with 802.11a/b/g/n/ac networks

Specifications

• Chipset: Intel Wi-Fi 6 AX200 (AX200NGW)
• Interface: PCIe for Wi-Fi, USB for Bluetooth

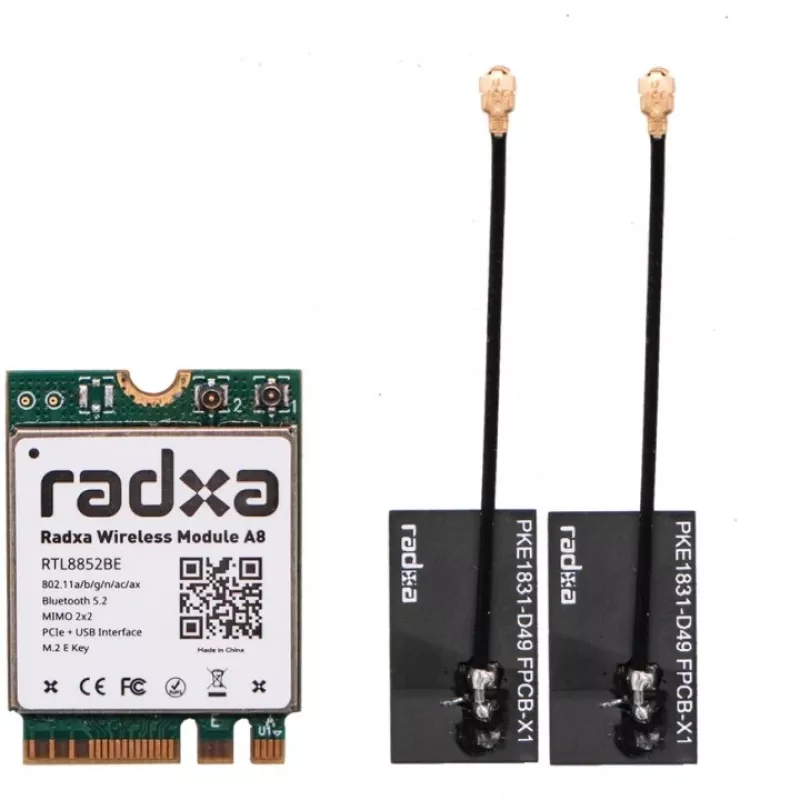

• Antenna connectors: 2x MHF4 (IPEX MHF4 compatible)
• Maximum data rate: 2.4 Gbps
• Operating temperature: 0°C to 80°C
• Power supply: 3.3V
• Supported operating systems: Windows 10/11, Linux (Kernel 5.1+), Chrome OS

Tips

Ensure your host device provides a standard M.2 Key E slot and appropriate antenna connections. For optimal performance, use antennas with MHF4 connectors and position them for clear signal paths. When installing on Linux, kernel version 5.1 or newer is required for native driver support.
