Rack Cabinet Lanview RCCTV001 0U IP66 White 25kg

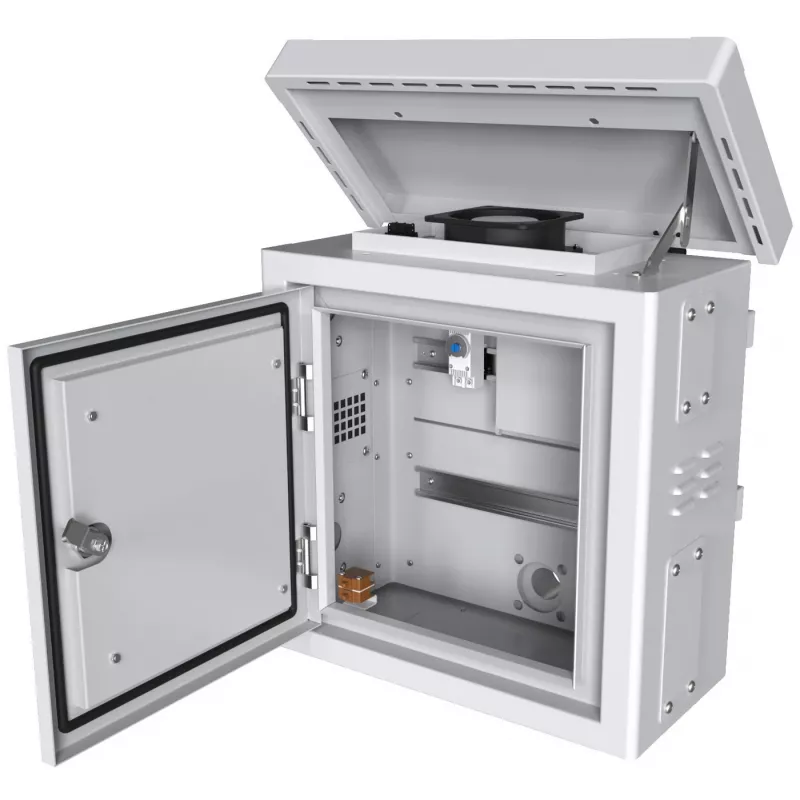

W:450 x D:250 x H:500 mm. The Lanview RCCTV001 Radius Series pole-type camera cabinet is a 0U, IP66-rated outdoor enclosure designed to protect surveillance equipment from dust, water and external impact. Finished in white and weighing 25 kg, the cabinet includes four camera installation points (one movable), a double-wall structure with gaskets, DIN rails for mounting devices, and an easily opened hinged top cap for internal access.

Advantages

The double-wall construction and door and top-cap gaskets provide enhanced weather and dust protection by creating an insulated barrier between inner and outer walls. An integrated fan module with two fans and a thermostat maintains airflow and temperature control, and includes a replaceable ventilation filter to reduce dust and water ingress while preserving sufficient ventilation. Oval corners reduce wind impact and the pole-mount design enables straightforward external installation without special tools.

Suitable for

• Outdoor CCTV and camera installations
• Remote surveillance points exposed to rain and dust
• Environments requiring IP66-rated protection for electronics

Key specifications

• Dimensions: Width 450 mm × Depth 250 mm × Height 500 mm
• Weight: 25 kg
• Rack capacity: 0U
• Protection rating: IP66
• Colour: White
• Camera installation points: 4 (one movable)

How to use

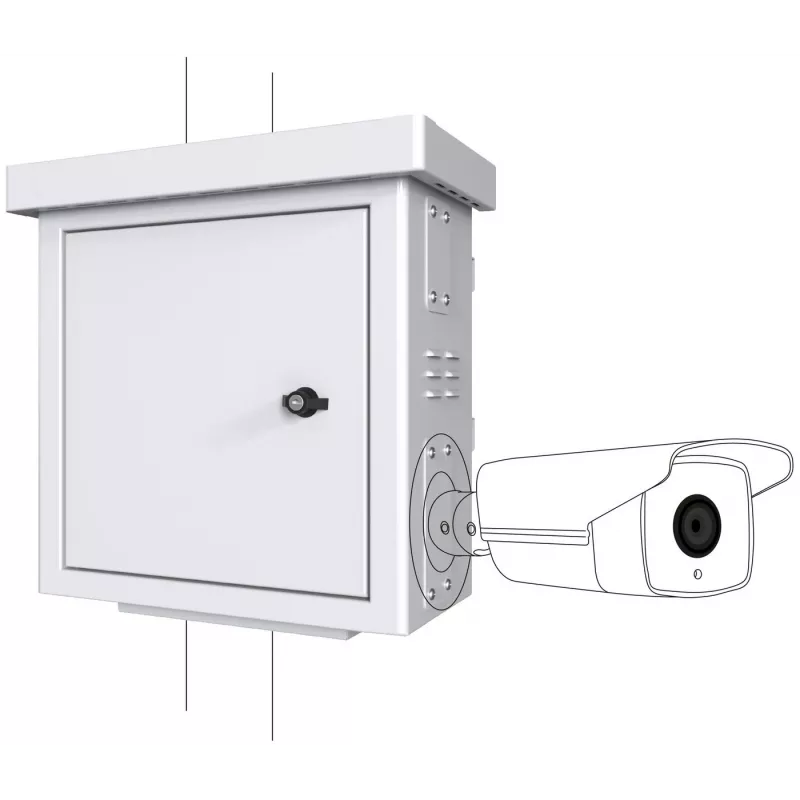

Complete internal assembly of devices and cables on the supplied DIN rails, fit the fan module and filter as needed, then secure the cabinet to a pole using the pole-mount fixtures. The hinged top cap opens from inside the cabinet to allow access to fans and internal components for maintenance. Ensure the ventilation filter is installed correctly and the thermostat settings match the operating range of installed equipment.

Recommendations

Install the Lanview RCCTV001 in a location where the pole and fastenings meet local load and wind-resistance requirements. Regularly check and replace the ventilation filter and verify fan operation and thermostat settings to maintain IP66 performance and reliable cooling.
