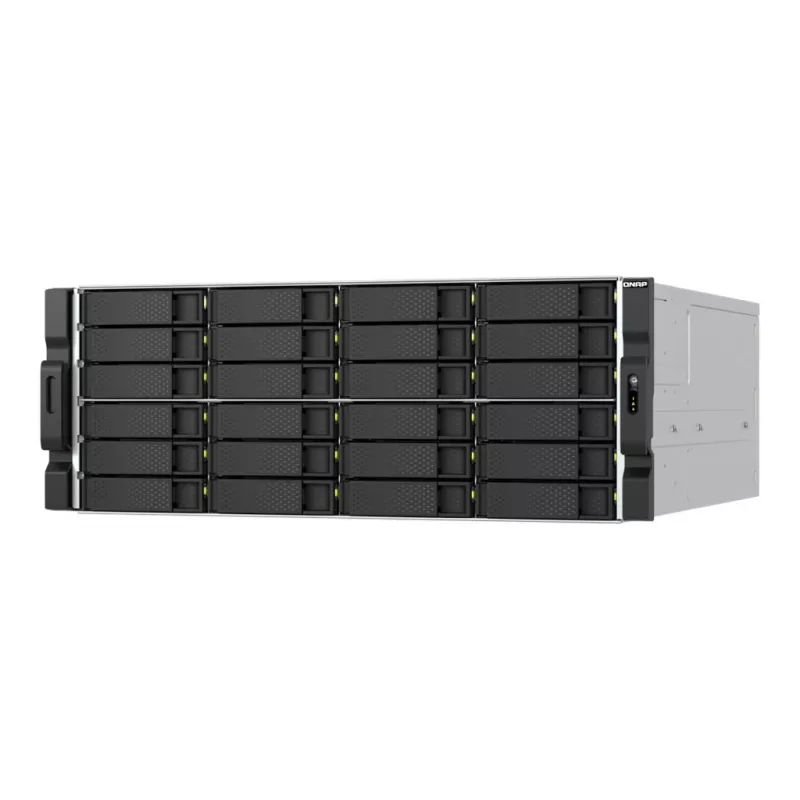

QNAP TS-h2477AXU-RP-R7-32G 4U Rackmount NAS Server, 24-Bay 3.5 inch SATA, AMD Ryzen 7, 32GB RAM, Dual 800W PSU

The QNAP TS-h2477AXU-RP-R7-32G is a high-performance 4U rackmount NAS server engineered for demanding enterprise storage environments. With 24 hot-swappable drive bays and a powerful AMD Ryzen 7 processor, this server delivers exceptional throughput and reliability for virtualization, backup, and large-scale data management.

Advantages

This NAS leverages the ZFS-based QuTS hero operating system, providing advanced data integrity, snapshot capabilities, and inline deduplication. The dual 10GbE ports ensure lightning-fast network connectivity, while the redundant 800W power supplies guarantee maximum uptime. With 32GB of DDR4 RAM (expandable to 128GB) and PCIe expansion slots, it offers ample room for growth.

Suitable for

• Virtualization environments requiring high IOPS and reliability
• Centralized backup and disaster recovery solutions
• Media production teams handling large 4K/8K files
• Large-scale file sharing and collaboration

Key specifications

• Processor: AMD Ryzen 7 3700X (8-core/16-thread, up to 4.4 GHz)
• Memory: 32 GB UDIMM DDR4 (2 x 16 GB), 4 slots, max 128 GB
• Drive Bays: 24 x 3.5-inch SATA 6Gb/s, hot-swappable
• M.2 Slots: 2 x M.2 2280 PCIe Gen3 x4 NVMe
• Network: 2 x 10GbE (10GBASE-T), 2 x 2.5GbE
• PCIe Expansion: 1 x Gen3 x8, 3 x Gen3 x4
• USB Ports: 2 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 2 Type-A
• Form Factor: 4U Rackmount
• Power Supply: Dual 800W Redundant
• Operating System: QuTS hero (ZFS-based)
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single

Recommendations

For optimal performance, install QNAP's high-quality SATA SSDs or enterprise-grade HDDs and configure a RAID 10 or RAID 6 array. Use the M.2 slots for NVMe caching to accelerate random I/O. Ensure the rack has adequate ventilation and a stable power supply to maximize reliability.
