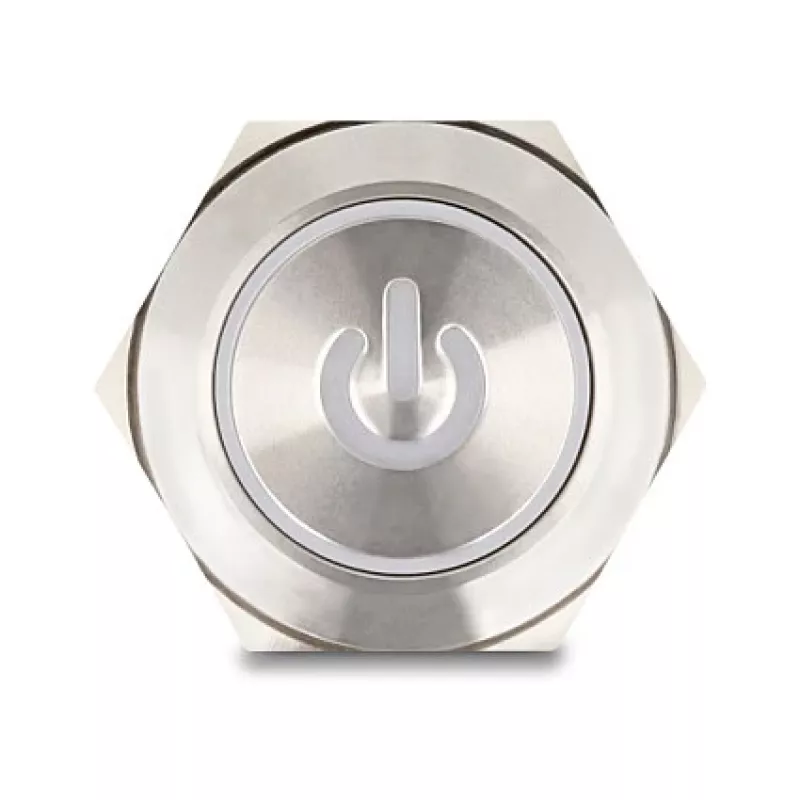

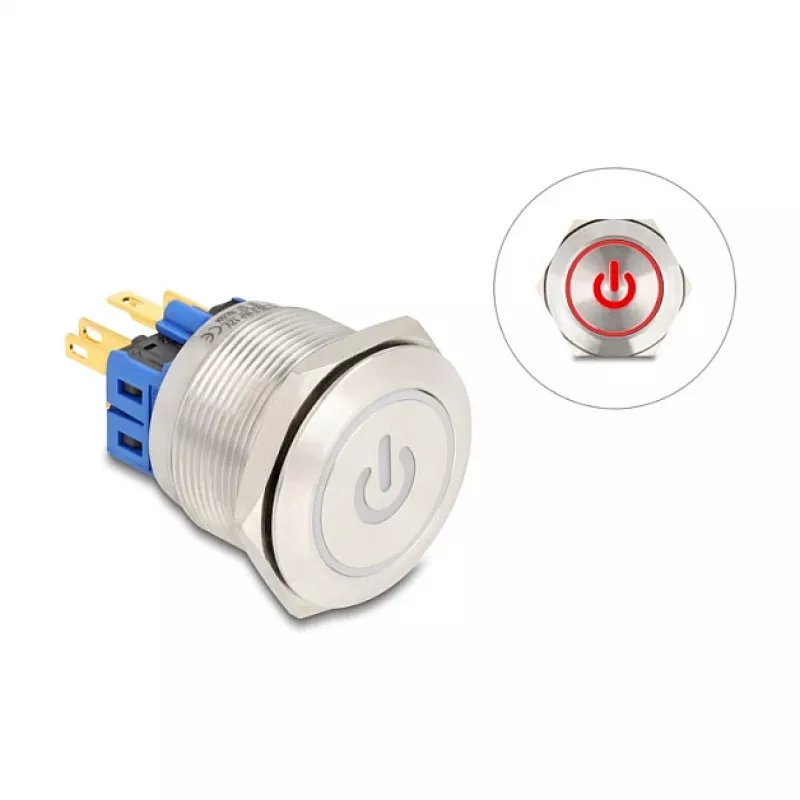

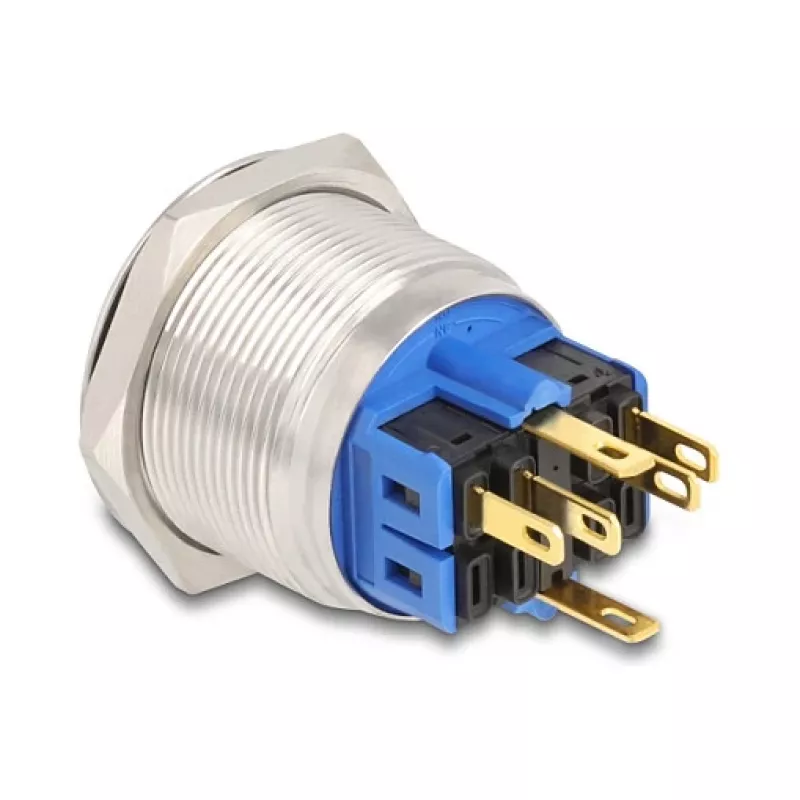

Push-button panel DeLOCK 20987 Silver 230V 3A

The DeLOCK 20987 is a silver push-button panel crafted from nickel and stainless steel for use in control panels and other switching applications. It is designed for operation at 230 V with a maximum switching current of 3 A, and its compact dimensions (45 mm width, 30 mm depth) make it suitable for installations that require a durable manual control element.

Advantages

The metal construction offers mechanical robustness and corrosion resistance. The push-button mechanism is of the momentary type, returning to its initial position after being pressed, and provides both normally open (NO) and normally closed (NC) contact options for flexible integration into control circuits. Its rated voltage and current (230 V, 3 A) suit common low-power control and signalling tasks.

Suitable for

• Control panels in industrial or regulation technology
• Doorbells and corridor lighting with timer systems
• Automotive or consumer electronic switching applications

Key specifications

• Brand: DELOCK
• Model / MPN: 20987
• Colour: Silver (nickel / stainless steel)
• Rated voltage: 230 V
• Rated current: 3 A
• Type: Push-button (momentary)
• Contacts: NO (normally open) and NC (normally closed)
• Dimensions: 45 mm (width) x 30 mm (depth)
• EAN: 4043619209873

How to use

Install the push-button into a prepared panel cut-out appropriate for its dimensions and secure it according to the panel mounting instructions. Wire the NO or NC contact terminals into the control circuit depending on whether you require a closing or opening action when the button is pressed. Ensure wiring and connections comply with applicable electrical standards and that the operating voltage and current do not exceed the specified 230 V and 3 A ratings.

Recommendations

Use the DeLOCK 20987 for control and signalling circuits within its rated electrical limits. For environments with moisture or aggressive chemicals, verify the suitability of nickel and stainless steel materials and consider additional sealing. Disconnect power before installation or maintenance.
