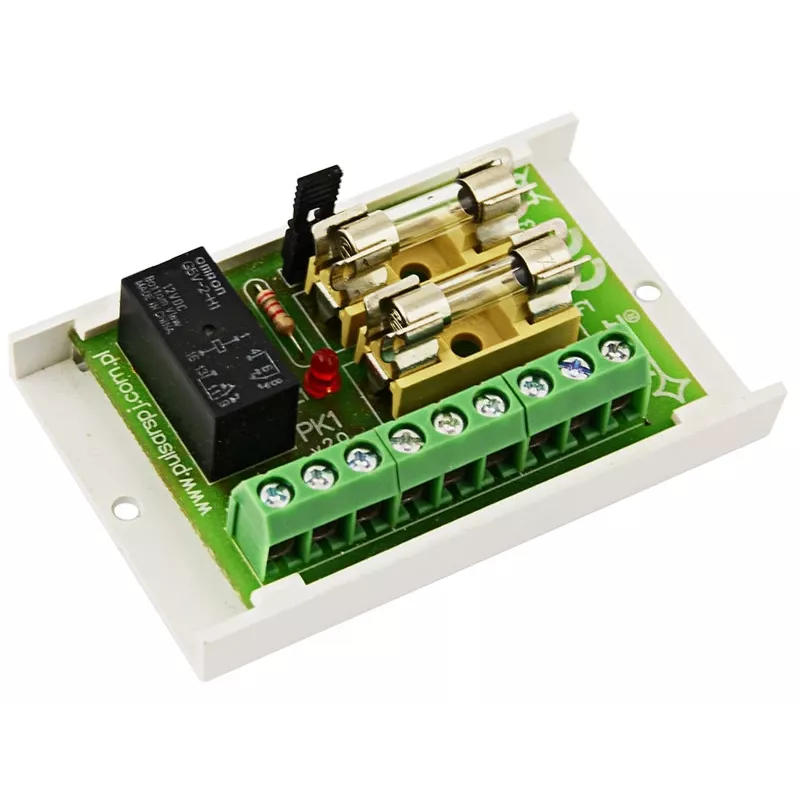

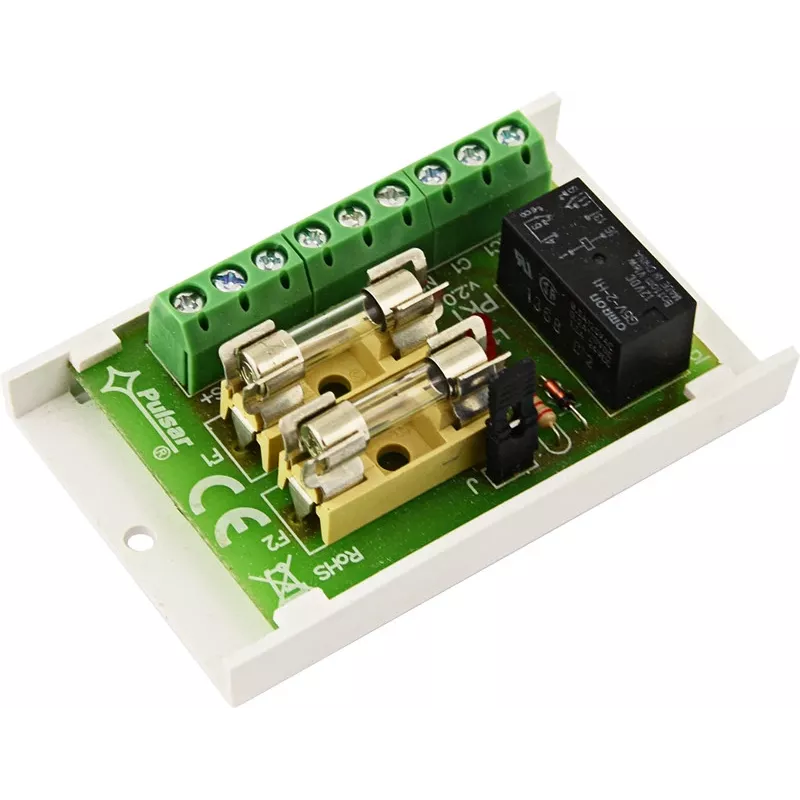

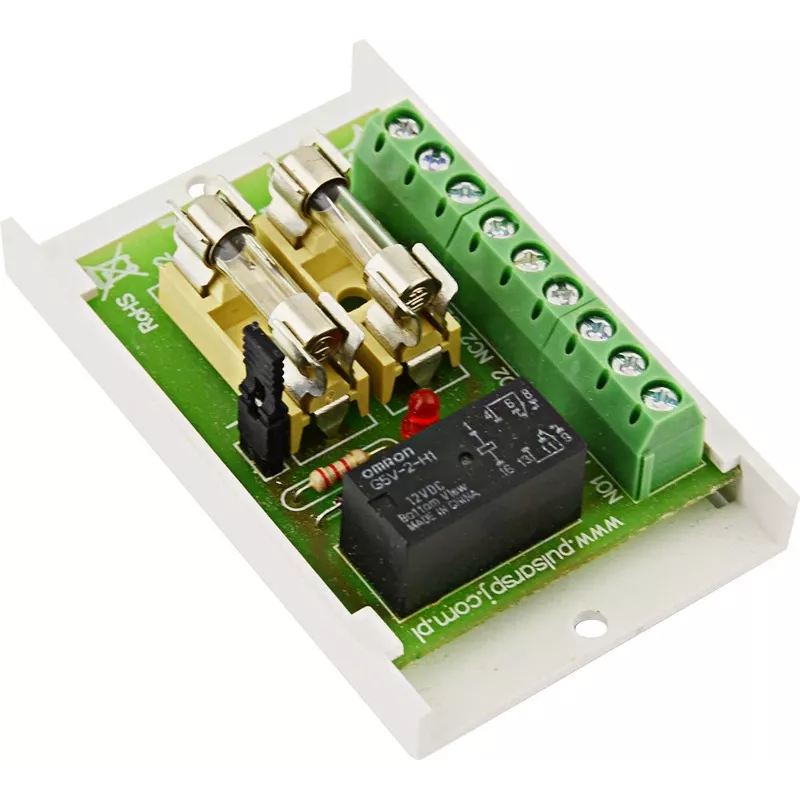

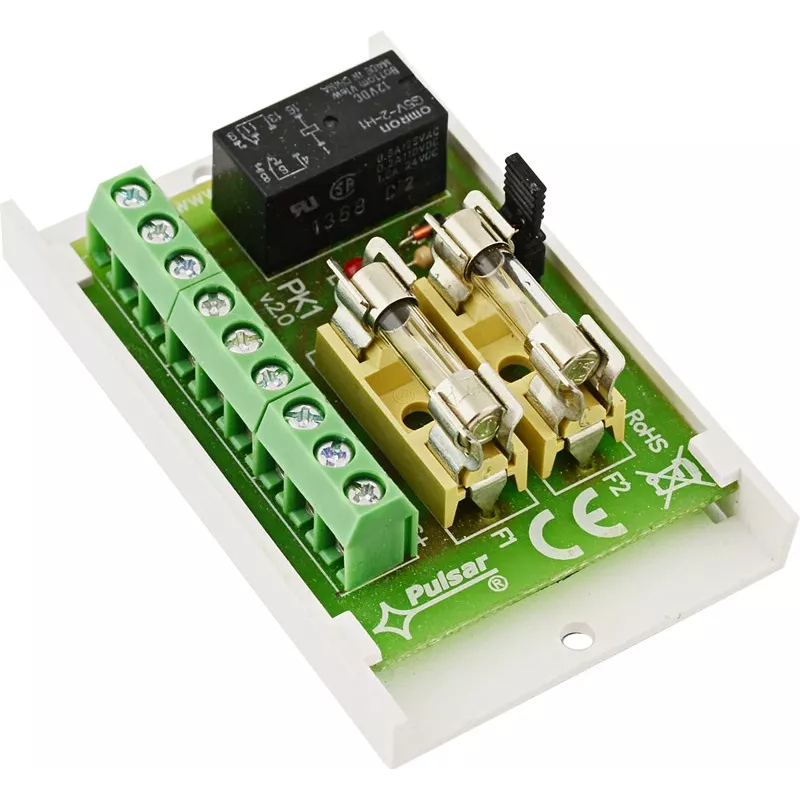

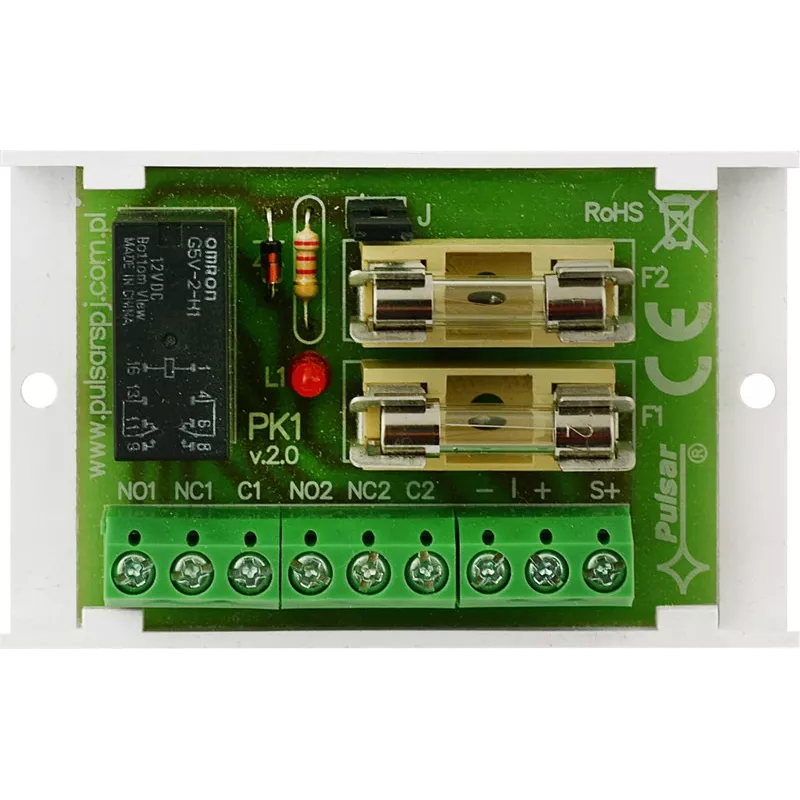

PULSAR AWZ513 Relay Module SPDT 2A 10-30V DC DIN Rail

The PULSAR AWZ513 is a compact and reliable single relay module designed for a wide range of control and automation applications. Featuring a Single Pole Double Throw (SPDT) contact configuration, it provides both normally open (NO) and normally closed (NC) contacts, making it versatile for switching loads up to 2A at 30V DC or 50V AC. The module accepts a wide input voltage range of 10-30V DC, with low current consumption (20mA at 12V, 10mA at 24V). It can be mounted on a DIN rail (TS-35) or via screw mount, and connections are made via screw terminals for secure wiring. Ideal for access control, alarm systems, automation, and CCTV applications.

Advantages

The AWZ513 offers a compact footprint, low power consumption, and flexible mounting options. Its SPDT relay allows for both NO and NC switching, simplifying circuit design. The wide input voltage range ensures compatibility with various power supplies, and the screw terminals provide reliable, tool-free connections.

Suitable for

• Access control systems
• Alarm and security systems
• Building automation
• CCTV and surveillance
• Industrial control panels

Key specifications

• Relay Type: SPDT (Single Pole Double Throw)
• Number of Relays: 1
• Input Voltage: 10-30V DC
• Max. Contact Current: 2A
• Max. Contact Voltage (DC): 30V DC
• Max. Contact Voltage (AC): 50V AC
• Current Consumption: 20mA @ 12V DC, 10mA @ 24V DC
• Mounting: DIN Rail (TS-35) or Screw Mount
• Connection: Screw Terminals
• Operating Temperature: -10°C to +40°C
• Operating Humidity: 20% to 90% RH (non-condensing)

Recommendations

For optimal performance, use a regulated DC power supply within the specified voltage range. Ensure the load current does not exceed 2A. The module is not suitable for inductive loads without external suppression.
