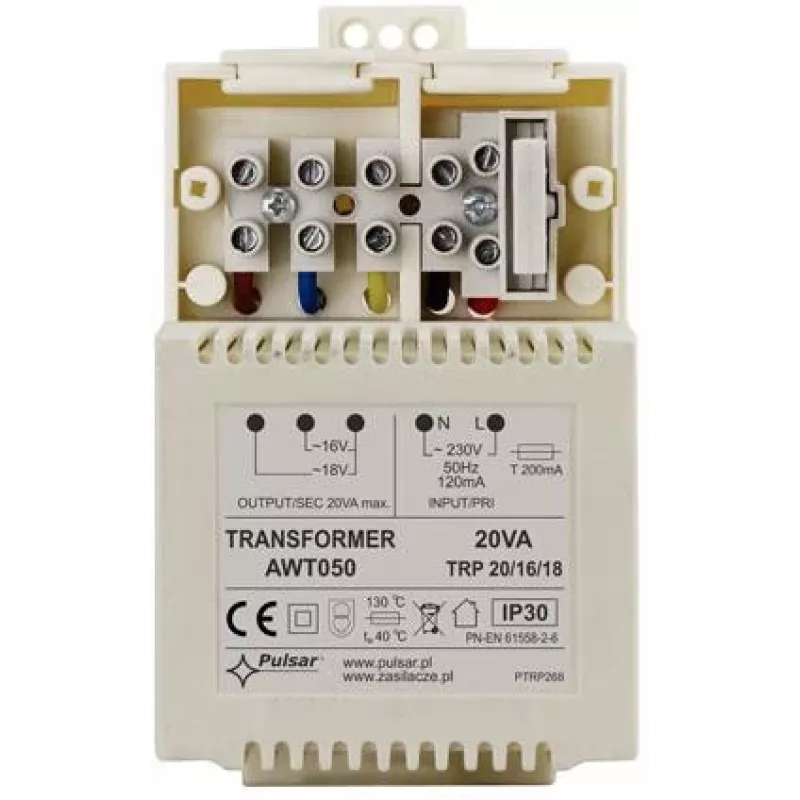

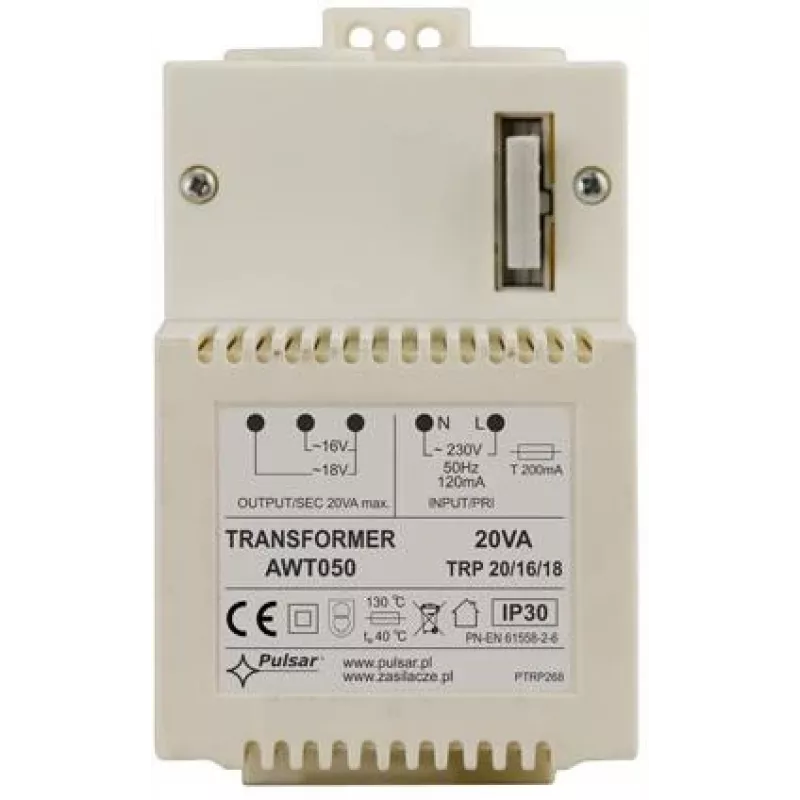

Pulsar AWT050 TRP Toroidal Power Transformer 20VA 16V/18V

The Pulsar AWT050 TRP is a high-quality toroidal power transformer designed for reliable performance in power supply units, audio amplifiers, and control systems. With a power rating of 20 VA and dual secondary windings providing 16V AC and 18V AC outputs, this transformer offers flexibility for various applications. Its toroidal core design ensures low magnetic leakage, minimal noise and vibration, and high efficiency.

Advantages

Toroidal construction provides superior electrical performance with very low stray magnetic fields, making it ideal for sensitive audio and control equipment. The central bolt mounting allows for easy installation, while flexible insulated leads simplify wiring. RoHS compliance ensures environmental responsibility.

Suitable for

• Power supply units
• Audio amplifiers
• Control systems
• Industrial electronics

Key specifications

• Product Type: Power Transformer
• Transformer Type: Toroidal
• Power Rating: 20 VA
• Primary Voltage: 230V AC
• Secondary Voltage 1: 16V AC
• Secondary Voltage 2: 18V AC
• Frequency: 50/60 Hz
• Output Configuration: Dual Secondary Windings
• Core Type: Toroidal Silicon Steel
• Mounting Style: Central Bolt/Potting
• Connections: Flexible Insulated Leads
• Efficiency: High
• Magnetic Leakage: Very Low
• Noise & Vibration: Very Low
• Standards Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure proper ventilation and mounting. This transformer is suitable for use in a wide range of electronic applications requiring stable AC power conversion.
