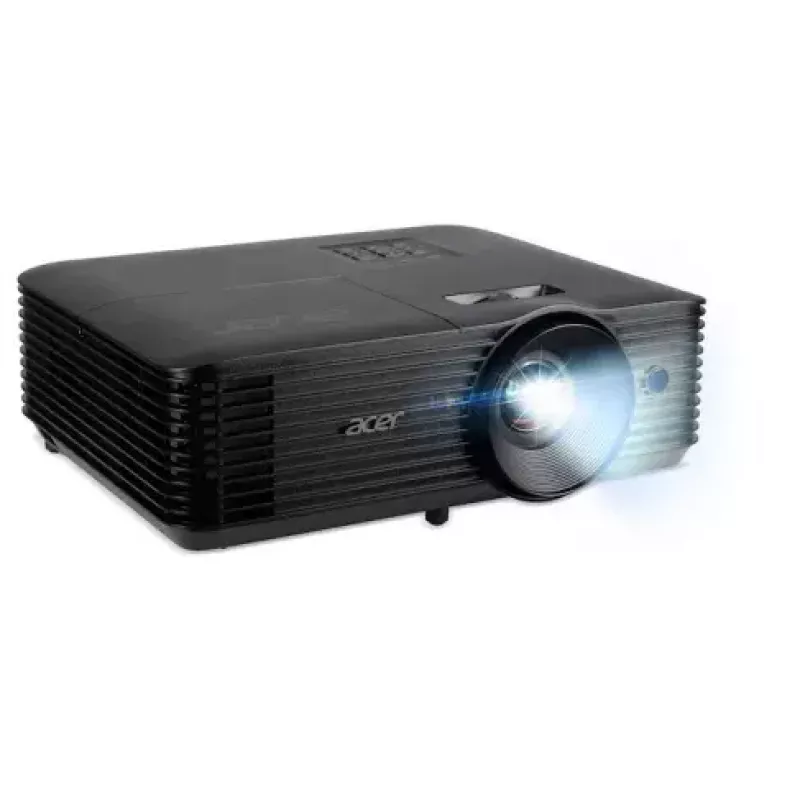

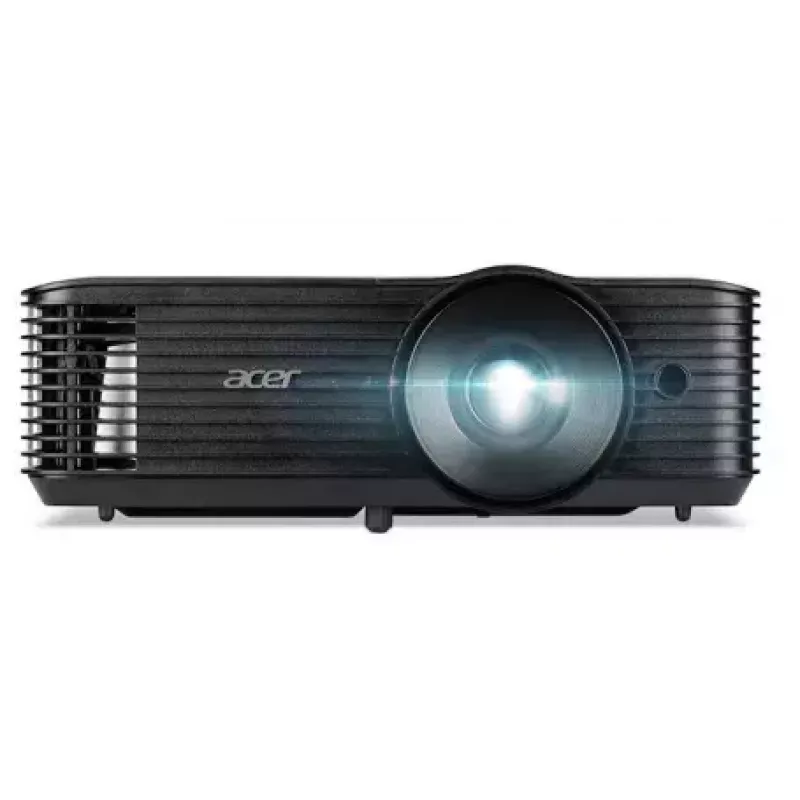

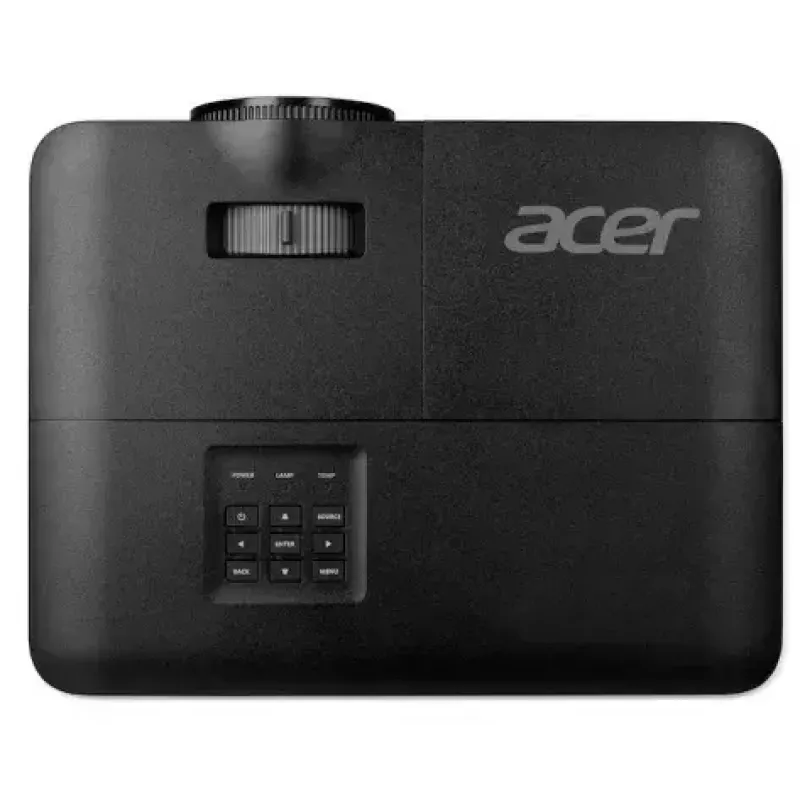

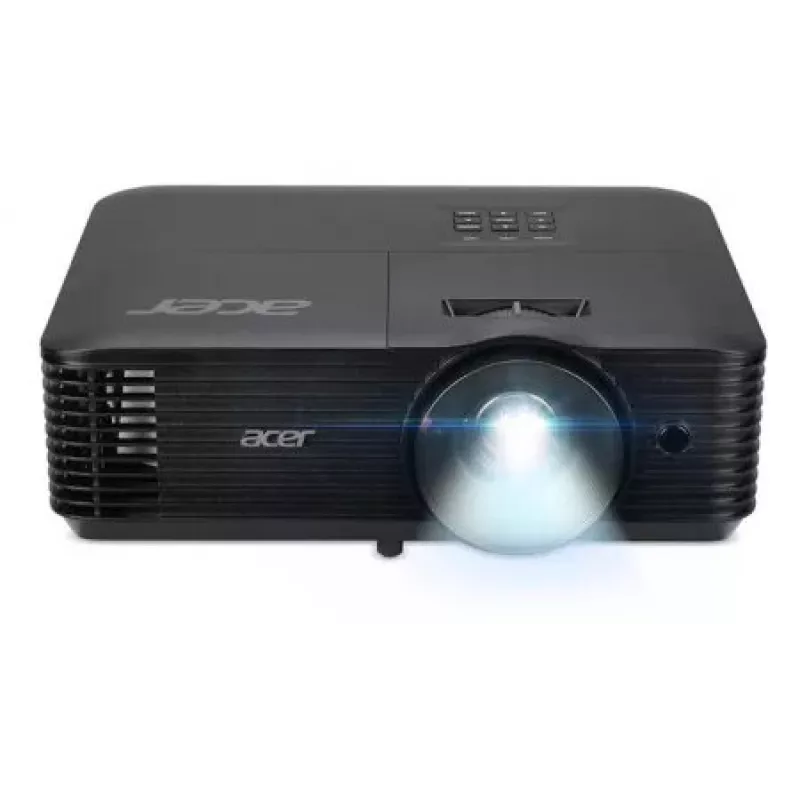

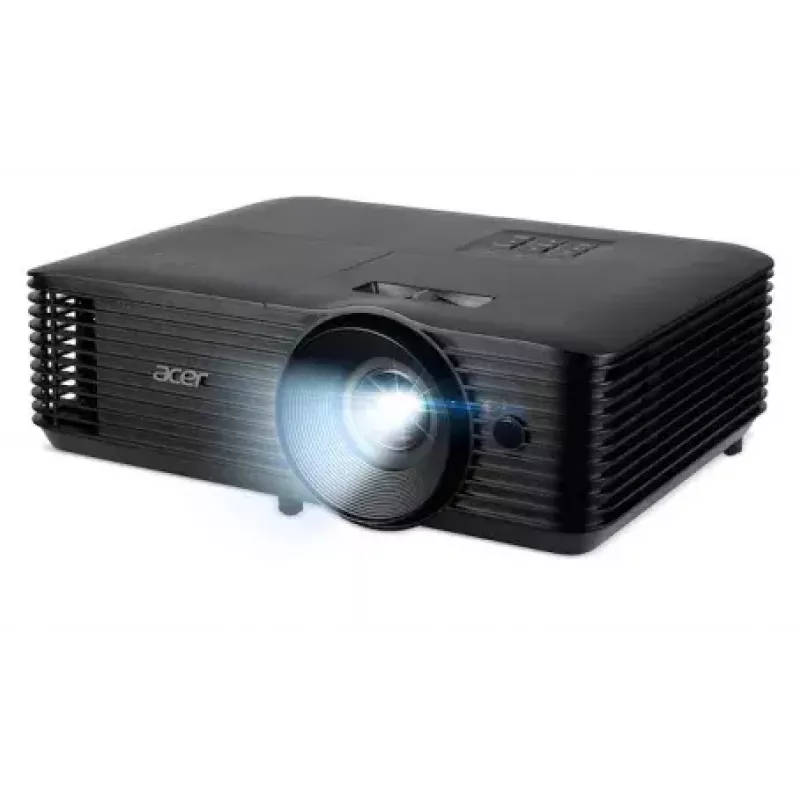

Projector Acer X1328 4500 ANSI lumens DLP WUXGA 3D Black

The Acer X1328 4500 ANSI lumens DLP WUXGA 3D Black is a compact, high-brightness projector designed for professional and educational environments. It delivers WUXGA native resolution (1920x1200) with DLP imaging to reproduce detailed presentations, spreadsheets, and wide-format video. With a lamp light source rated for 5,000 hours under normal use and up to 10,000 hours in economic mode, the unit balances long runtime with straightforward maintenance. Manual focus and a focal length range of 21.85–24 mm provide flexible installation options for ceiling, front, or rear projection. The black enclosure and 2.8 kg weight make it easy to mount or move between rooms while maintaining a low audible profile at approximately 27 dB.

Advantages

The projector offers high brightness of 4500 ANSI lumens for clear images in well-lit rooms and large screens, combined with WUXGA resolution for increased detail and a 16:10 aspect ratio suited to productivity content. DLP technology provides reliable color and contrast reproduction with reduced image artifacts. The lamp's extended life in economic mode lowers operating costs and maintenance frequency. Its compact form and modest weight simplify installation and portability, while a relatively low noise level supports use in meeting rooms and classrooms.

Suitable for

• Classrooms and lecture halls requiring bright projection and wide-format resolution
• Conference rooms and business presentations with detailed slides and charts
• Training centers and corporate spaces where ceiling, front, or rear projection is needed
• Event venues and rental setups needing portable, high-brightness projection

Key specifications

• Projection technology: DLP
• Native resolution: WUXGA (1920 × 1200)
• Native aspect ratio: 16:10
• Brightness: 4500 ANSI lumens
• Light source: Lamp with typical life 5000 hours; up to 10000 hours in economic mode
• Focus: Manual
• Focal length range: 21.85–24 mm
• Noise level: Approximately 27 dB
• Weight: 2.8 kg
• Color: Black

How to use

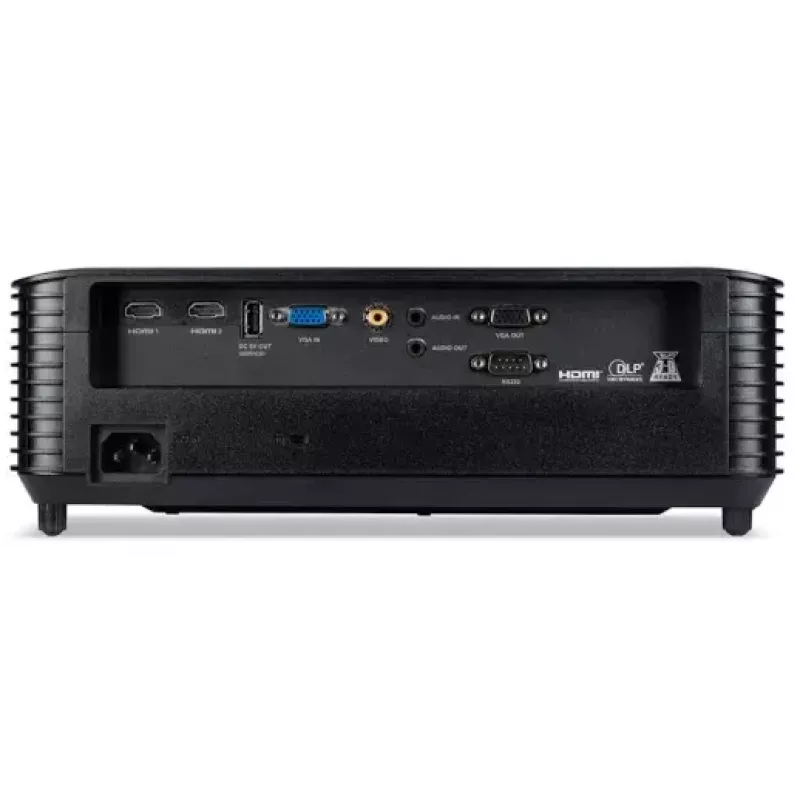

Place or mount the projector so the lens aligns with the projection surface, allowing for the focal length and manual focus adjustment to achieve a sharp image. Connect video sources using the available input ports on the unit (refer to the product's physical connectors) and select the appropriate display resolution on the source device to match WUXGA where supported. Use economic mode to extend lamp life during less demanding use, and return to normal brightness for presentations in bright rooms. Allow adequate ventilation around the projector housing and follow lamp replacement instructions from the manufacturer when brightness diminishes.

Recommendations

For consistent image quality, operate the projector in a well-ventilated location and perform periodic cleaning of air filters and lens surfaces. Choose lamp economy mode for routine training sessions to reduce operating cost, and switch to full brightness for larger venues or rooms with substantial ambient light. Ensure secure mounting for ceiling installations and verify projection alignment before each event.
