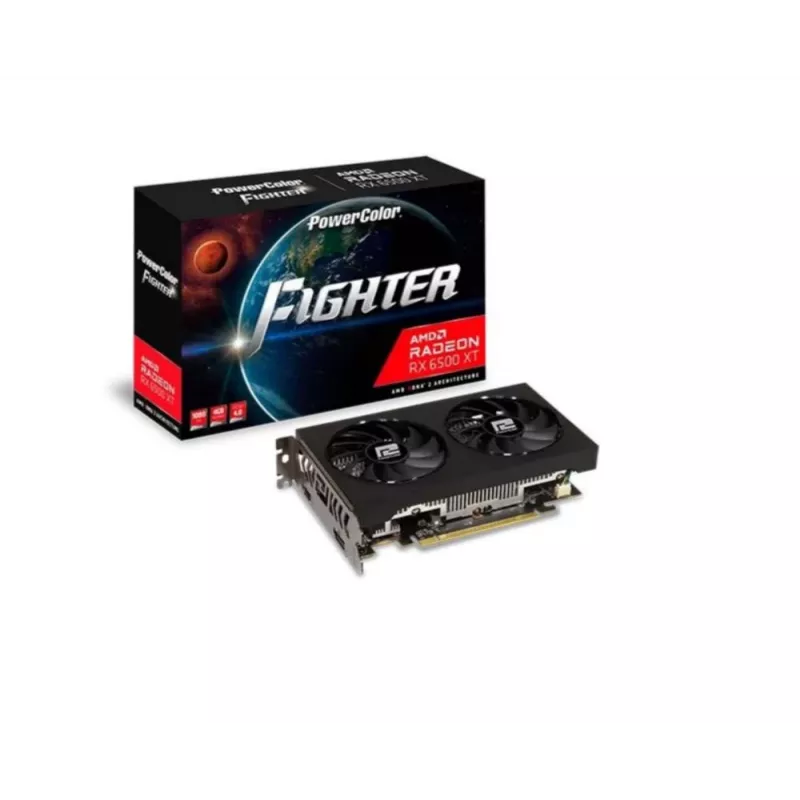

Graphics Card PowerColor Radeon RX 6500 XT 4GB GDDR6 PCIe 4.0, 2610/2815 MHz, 64-bit, 2-slot, 2-fan, HDMI 2.1 + DP1.4

PowerColor Radeon RX 6500 XT is a compact discrete graphics card based on the Radeon RX 6500 XT GPU. It provides 1024 stream processors, 4 GB of GDDR6 memory on a 64‑bit bus, PCI Express 4.0 interface and supports resolutions up to 7680 x 4320. The card uses a dual‑fan active cooling solution in a 2‑slot design and offers HDMI 2.1 and DisplayPort 1.4 outputs.

Advantages

The card delivers a balance of compact size and modern connectivity, including HDMI 2.1 and DisplayPort 1.4, enabling high‑resolution output. GDDR6 memory with an 18 Gbit/s transfer rate and a 64‑bit memory bus support responsive texture and frame handling for entry‑level to mainstream gaming. The dual‑fan active cooler keeps temperatures under control in small form‑factor builds while the PCIe 4.0 interface provides sufficient bandwidth for current GPUs.

Suitable for

• Compact gaming PCs and small form‑factor builds
• Multimedia systems and 4K/8K video playback
• General desktop use with occasional gaming or GPU‑accelerated tasks

Key specifications

• GPU: Radeon RX 6500 XT with 1024 stream processors
• Base / Boost clock: 2610 MHz / 2815 MHz
• Memory: 4 GB GDDR6, 64‑bit bus, 18 Gbit/s data rate
• Interface: PCI Express 4.0
• Outputs: 1× HDMI 2.1, 1× DisplayPort 1.4
• Cooling: Active dual‑fan, 2‑slot design
• Maximum supported resolution: 7680 x 4320
• DirectX / OpenGL support: DirectX 12.0, OpenGL 4.6
• Recommended PSU: minimum 400 W, requires one 6‑pin supplementary power connector
• Dimensions (approx.): 181 mm length × 36 mm height × 111 mm depth

How to use

Install the card into a PCI Express x16 slot on a compatible motherboard with PCIe 4.0 support where available. Connect the single 6‑pin power connector from the power supply, secure the card in the case’s expansion slot and attach display cables to HDMI 2.1 or DisplayPort 1.4 outputs. Install the latest AMD Radeon drivers to ensure proper operation and performance.

Recommendations

Use a power supply of at least 400 W and ensure good case airflow for stable temperatures. For optimal results in games and multimedia, keep drivers updated and select display settings appropriate for the card’s 4 GB memory and 64‑bit bus limitations.
