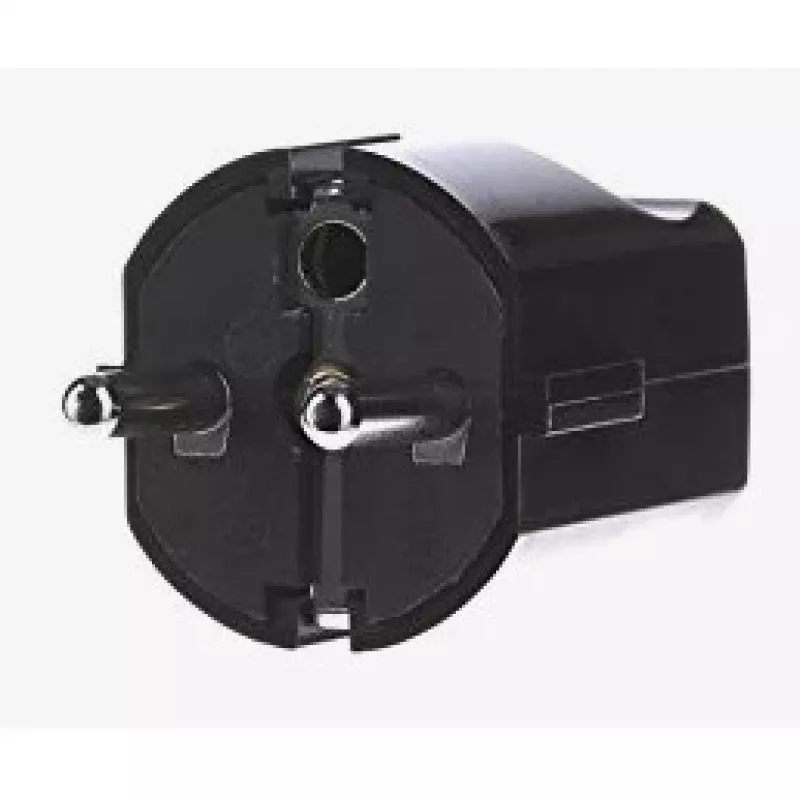

Power plug Type F Bachmann 910.170 Black

The Bachmann 910.170 is a Type F power plug in black designed for safe and durable mains connections. It accepts H05VV-F 3G cable with a conductor external diameter of 1 mm and features a plastic, impact-resistant housing with integrated strain relief to protect the cable and contacts.

Advantages

The plug combines a compact unbreakable plastic construction with a built-in strain relief to reduce mechanical stress on the cable. Its design supports H05VV-F 3G cable types and provides a standardized Type F connection for secure electrical contact and reliable daily use.

Suitable for

• Connecting household appliances with Type F sockets
• Replacement or repair of damaged power cords using H05VV-F 3G (1 mm conductor)
• Applications requiring a compact, impact-resistant power plug

Key specifications

• Brand: Bachmann
• Model / MPN: 910.170
• Type: Type F (Schuko) power plug
• Color: Black
• Cable compatibility: H05VV-F 3G
• Conductor external diameter: 1 mm
• Housing material: Impact-resistant plastic
• EAN: 4016514006595

How to use

Strip the outer sheath and conductors of the H05VV-F 3G cable to the lengths recommended by the plug manufacturer, insert the conductors into the corresponding terminals and tighten the terminal screws securely. Ensure the strain relief grips the cable to prevent movement. After assembly, plug into a Type F socket and verify proper connection before powering the connected device.

Recommendations

Use this plug only with compatible H05VV-F 3G cable and Type F sockets. Do not exceed the current and voltage ratings of the connected appliance and inspect the plug regularly for damage. Installation should follow local electrical regulations; if unsure, consult a qualified electrician.
