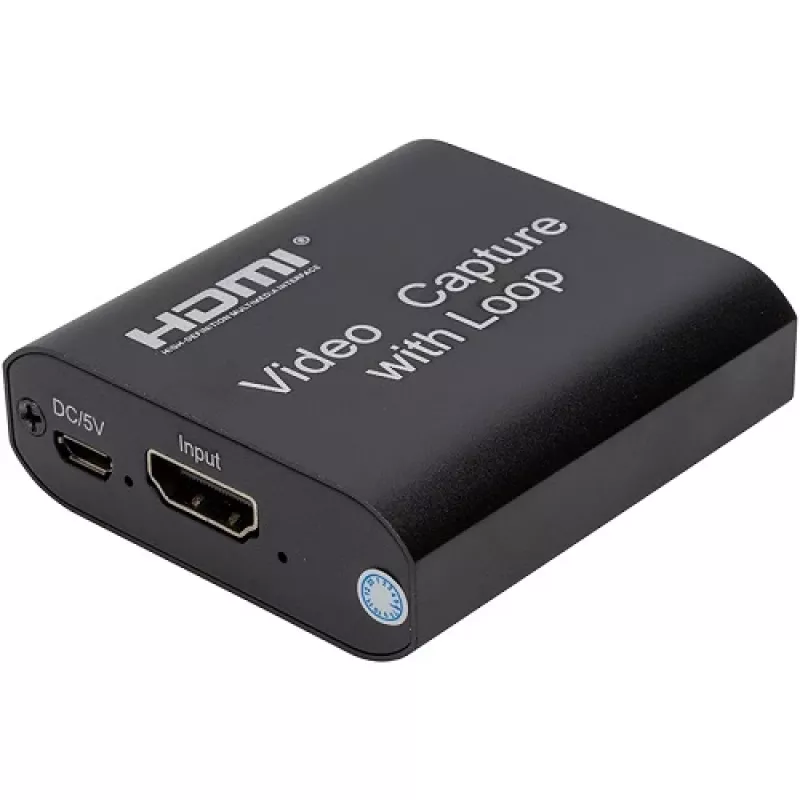

POWER PLANT CA914142 4K 30Hz HDMI Capture Device USB 3.0 with Loop-Out, UVC Plug & Play, Aluminium

Most capture devices force a compromise between resolution and portability, but the POWER PLANT CA914142 delivers full 4K at 30Hz in a compact, bus-powered aluminium shell. It connects directly between your HDMI source and computer via USB 3.0, giving you crisp, lag-free video for streaming, recording, or conferencing without extra power bricks or drivers.

Highlights

• Accepts HDMI input up to 4K (3840x2160) at 30Hz and captures at the same resolution
• USB 3.0 Type-A connection to your PC for low-latency transfer
• HDMI loop-out allows simultaneous monitoring or passthrough to a second display
• UVC standard for true plug-and-play operation – no extra drivers needed
• Wide compatibility with Windows, macOS, Linux, and Android devices
• Includes audio extraction via 3.5mm microphone input and stereo output

In daily use

Setting up the CA914142 is as simple as plugging it in. Connect your HDMI source, attach the USB cable to your computer, and open your favourite capture software like OBS Studio, VLC, or XSplit. The device is instantly recognised and ready for action. Use the HDMI loop-out to preview the feed on a monitor while recording, or to daisy-chain additional hardware without losing quality. Whether you're a gamer streaming your latest session, a professional creating content, or a business conducting remote presentations, this capture device adapts to your workflow.

Full specifications

• Input Interface: 1x HDMI
• Output Interface (to PC): 1x USB 3.0 Type-A
• HDMI Loop-out: Yes
• Max Input Resolution: 4K (3840x2160) @ 30Hz
• Max Capture Resolution: 4K (3840x2160) @ 30Hz
• Max Capture Frame Rate (1080p): 60Hz
• Supported Input Formats: HDMI 1.4b
• Video Output Format: YUV, MJPEG
• Audio Input: HDMI Embedded Audio
• Audio Output: HDMI Loop-out, 3.5mm Stereo Audio
• Microphone Input: 3.5mm TRS
• Operating System Compatibility: Windows 7/8/10/11, macOS, Linux, Android
• Software Compatibility: OBS Studio, VLC, PotPlayer, Amcap, XSplit
• Power Supply: USB Bus-powered
• HDCP Support: HDCP 1.4/2.2 Pass-through
• Latency: Ultra-low latency
• Material: Aluminum Alloy Casing
• Plug & Play: Yes (UVC Standard)

Final note

The CA914142 combines professional-grade 4K capture with true portability, making it an essential tool for content creators and presenters who demand quality without compromise.
