Power extension Bachmann 381.109

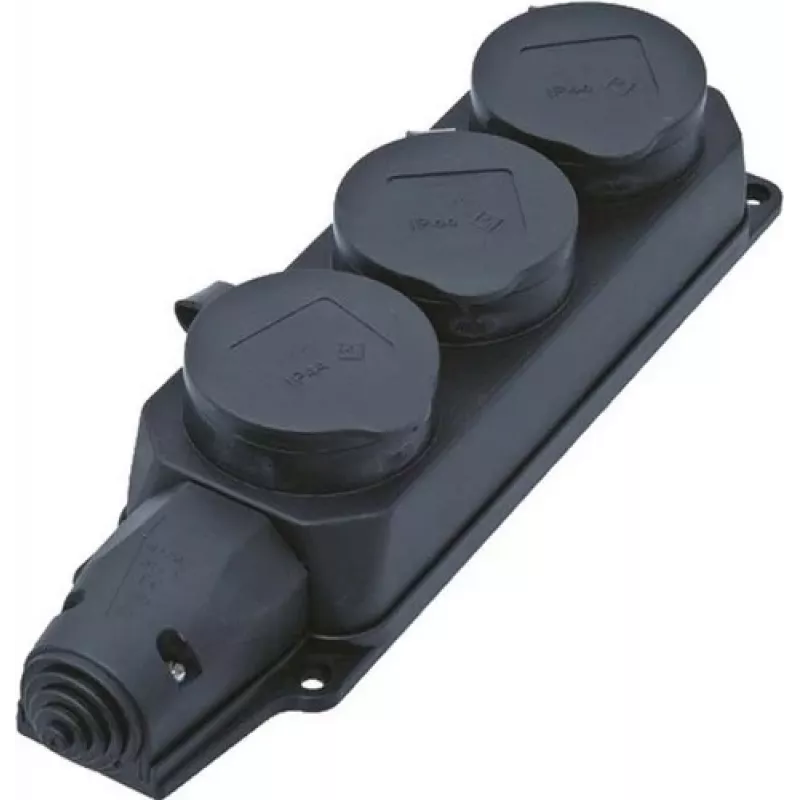

The Bachmann 381.109 power extension is a black power distribution unit designed for safe indoor and outdoor use. It provides three AC outlets, IP44 splash protection and supports a maximum current of 16 A at 230 V. The housing follows DIN 49 440 part 1 design, features an attachment eye and four fixing points, and is made in a solid elastomer version for mechanical resilience.

Advantages

This power extension combines IP44 protection with a compact three-socket layout to power multiple devices simultaneously while reducing the risk from splashes and light moisture. The solid elastomer housing increases durability and impact resistance. Built-in attachment eye and four fixing points allow secure mounting and stable positioning for both temporary and semi-permanent installations.

Suitable for

• Temporary outdoor power for tools and lighting
• Indoor workshops and utility rooms
• Construction sites with light exposure to moisture
• Fixed mounting where a compact, robust outlet block is needed

Key specifications

• Brand: Bachmann
• Model / MPN: 381.109
• EAN: 4016514065097
• Number of outlets: 3 AC sockets
• Voltage: 230 V
• Maximum current: 16 A
• Protection rating: IP44
• Design standard: DIN 49 440 part 1
• Housing: solid elastomer version
• Mounting: attachment eye and four fixing points

How to use

Connect the power extension to a compatible 230 V supply using the appropriate plug. Mount the unit using the attachment eye or the four fixing points if a fixed position is required, or place it on a stable surface for temporary use. Plug devices into the three AC outlets, ensuring the total current draw does not exceed 16 A. Observe IP44 limitations: the unit is protected against splashes but should not be submerged or exposed to heavy water jets.
