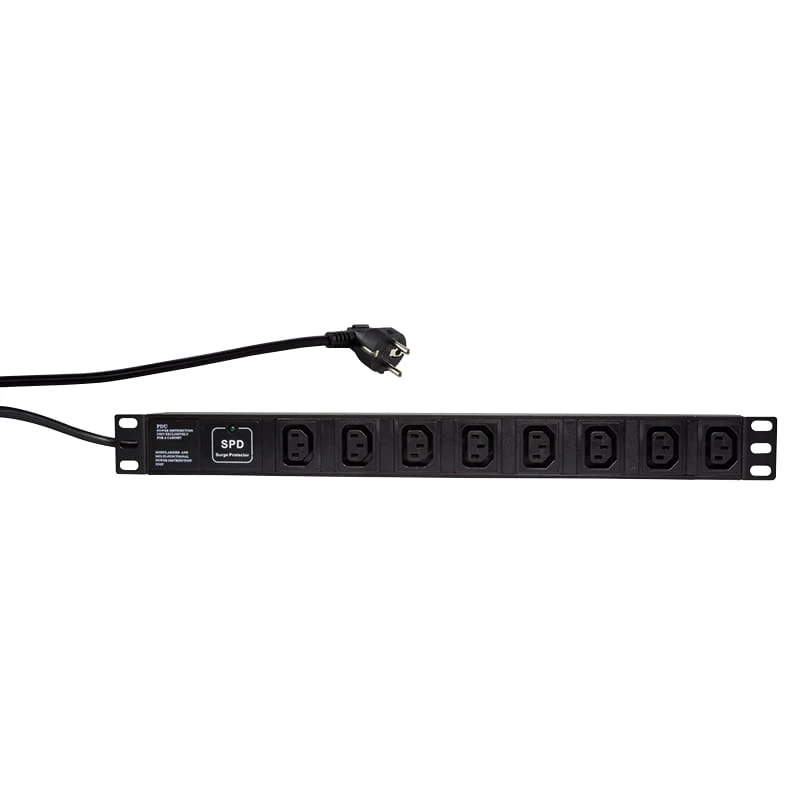

Power Distribution Unit LogiLink PDU8A01

The LogiLink PDU8A01 is a 1U power distribution unit designed for rack and standalone use. It provides eight C13 AC outlets to power multiple devices in server cabinets or on a workbench. Constructed with a durable aluminum-alloy housing and a 2 m connection cable, the unit fits standard 19" vertical rack mounting and can also be used as a compact power stripe for equipment outside a rack.

Advantages

The PDU8A01 combines a robust aluminum-alloy casing with eight C13 couplers to deliver reliable power distribution in space-constrained racks. Its 1U form factor and 482 mm width match standard 19" installations while the 2 m cable offers flexible placement. The unit supports a nominal input voltage of 230 V at 50–60 Hz and a maximum current of 10 A.

Suitable for

• Powering servers and network devices in 19" racks
• Use as a compact power stripe for desktop or laboratory equipment
• Small office and telecom installations requiring multiple C13 outlets

Key specifications

• AC outlets quantity: 8 AC outlet(s) (C13 couplers)
• Nominal input voltage: 230 V
• Maximum current: 10 A
• AC frequency: 50–60 Hz
• Product colour: Black
• Dimensions (width): 482 mm; form factor: 1U for 19" racks
• Connection cable length: 2 m

How to use

Install the PDU8A01 vertically in a standard 19" rack using the 1U mounting space or place it on a flat surface for standalone use. Connect the unit to a compatible 230 V AC supply and plug devices into the C13 outlets. Ensure the total connected load does not exceed the specified maximum current of 10 A. Use the built-in on/off switch and any provided surge protection features as needed.

Recommendations

To maintain safe operation, distribute high-current devices across multiple outlets, avoid exceeding the 10 A rating, and ensure adequate ventilation around the PDU. Regularly inspect the cable and outlets for damage and replace the unit if any safety concerns are found.
