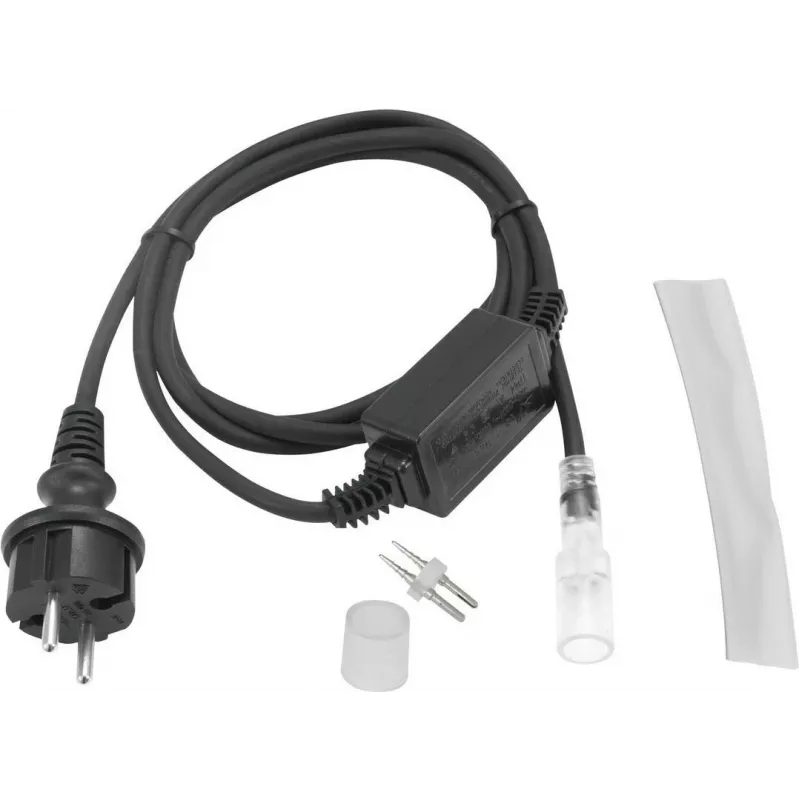

Power connector EUROLITE RL1 Rubberlight LED for 5 mm LED cables

The EUROLITE RL1 Rubberlight LED power connector for 5 mm LED cables is a compact electrical connector designed to provide a secure and reliable connection between power sources and 5 mm LED cables. Intended for use where a compact, insulated coupling is needed, this connector supports straightforward wiring of LED strips, modules, or individual 5 mm LED leads in both professional lighting installations and DIY applications.

Advantages

This power connector offers robust insulation and a compact form factor that reduces strain on cable joints while maintaining reliable electrical contact. Its design simplifies assembly and replacement, minimizing downtime during installation or maintenance. The connector is compatible with common 5 mm LED cable dimensions, enabling consistent performance across different LED components without the need for soldering in many cases.

Suitable for

Key specifications

How to use

Strip the insulation from the 5 mm LED cable to expose the conductor according to the connector's recommended stripping length. Insert the exposed conductor into the connector until the contact engages and then secure the housing according to the connector's assembly method (push-fit, screw, or snap closure as applicable). Ensure correct polarity when connecting to power supplies and verify firm mechanical seating to prevent intermittent contact. After assembly, test the circuit at low voltage before finalizing installation.

Recommendations

Use this connector in dry, protected environments or within enclosures to prevent moisture ingress. Avoid subjecting the connector to excessive pulling or bending forces; provide mechanical strain relief at cable entries. Verify compatibility with the specific 5 mm cable cross-section and conductor type prior to installation, and follow standard low-voltage wiring safety practices when connecting to power supplies.
