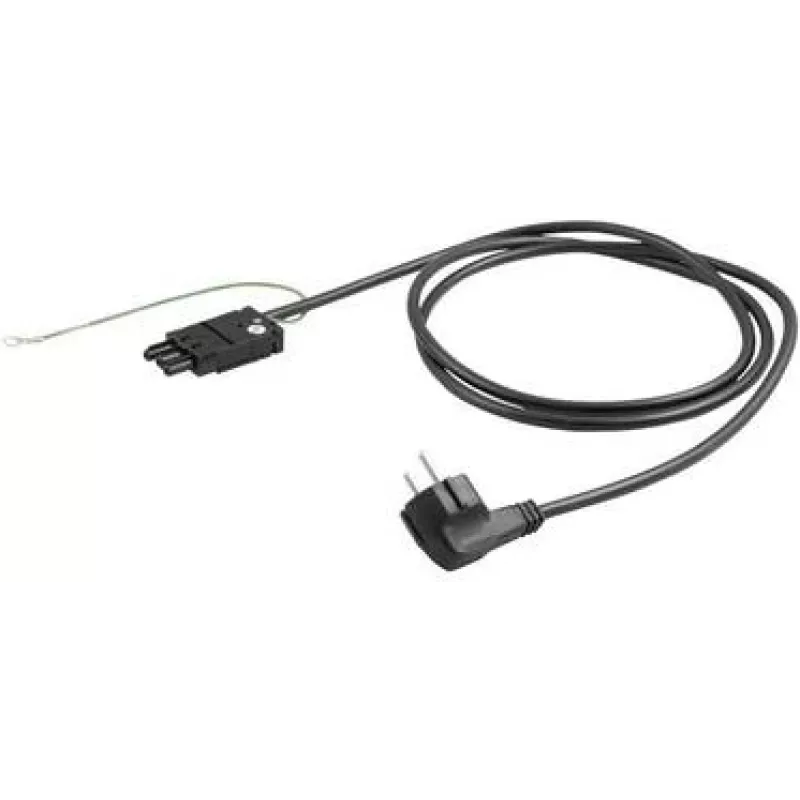

Power cable Black 3 m Bachmann 375.116

Power cable Black 3 m Bachmann 375.116 is a 3‑metre black mains lead designed for reliable power connection of electronic equipment. The cable uses H05VV‑F 3G 1.5 mm² conductors and combines a right‑angled earthing contact plug with a Wieland GST18i3 socket terminated with a 0.3 m green/yellow earth lead and an M6 ring terminal.

Advantages

The cable offers robust construction with H05VV‑F insulation for flexibility and safe handling, a right‑angled earthing contact plug for space‑saving connections, and a Wieland GST18i3 connector that ensures a secure, standardized interface. The included 0.3 m green/yellow earth lead with M6 ring termination simplifies grounding at installations requiring a bolted earthing point.

Suitable for

• Connecting rack equipment and audio/video devices to mains where a GST18i3 inlet is used
• Installations requiring a compact right‑angled plug to save space behind equipment
• Setups that need an additional earth connection via an M6 ring terminal

Key specifications

• Brand: Bachmann
• Model / MPN: 375.116
• Length: 3 m
• Cable type: H05VV‑F 3G 1.5 mm²
• End 1: Right‑angled earthing contact plug
• End 2: Wieland GST18i3 socket with 0.3 m 1.5 mm² green/yellow lead and M6 ring terminal
• Colour: Black
• EAN: 4016514032884

How to use

Insert the right‑angled earthing contact plug into a compatible mains outlet and connect the Wieland GST18i3 socket to the corresponding inlet on the device. If a fixed earth connection is required, attach the 0.3 m green/yellow lead with the M6 ring terminal to the equipment earth point or building grounding bolt, ensuring connections are secure and powered equipment is switched off during installation.

Recommendations

Use this Bachmann 375.116 cable indoors in dry environments and avoid routing across sharp edges or hot surfaces. Verify compatibility of the GST18i3 inlet and confirm the M6 earthing point rating before fastening; consult a qualified electrician for permanent installations or if local regulations require professional grounding work.
