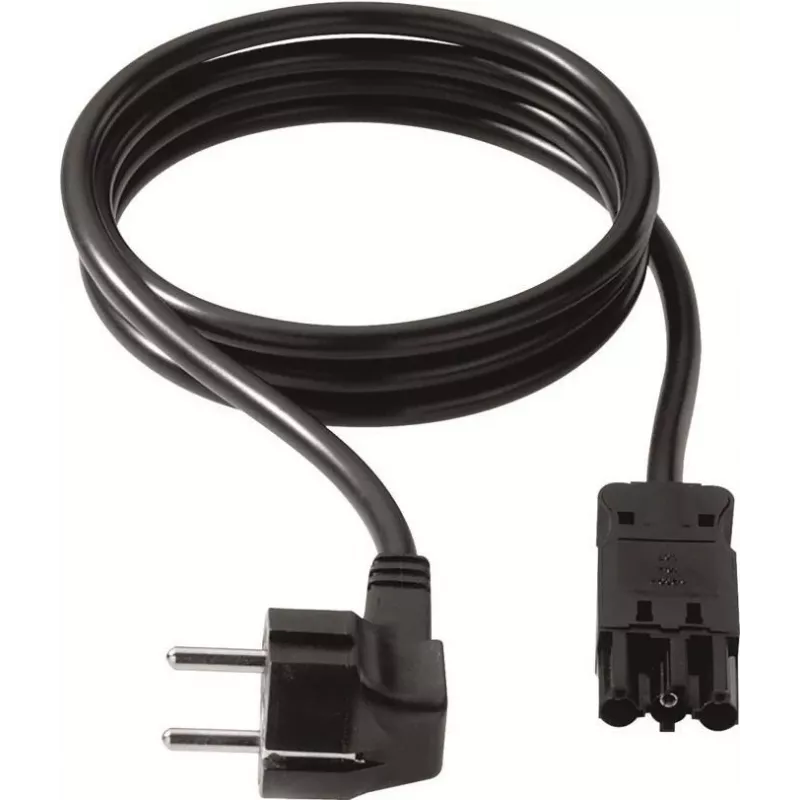

Power cable Bachmann 375.072 Black 1 m ST18

The Bachmann 375.072 power cable is a 1 m H05VV-F 3G 1.50 mm² cable fitted with a Wieland ST18/3 plug on one end and a Wieland ST18/3 socket on the other. It provides a simple, single-cable connection for transferring mains power between compatible devices or extensions in home and professional settings.

Advantages

The cable uses an H05VV-F 3G 1.50 mm² conductor, offering standard flexibility and safe current carrying capacity for typical appliance and equipment connections. Both ends have Wieland ST18/3 connectors, ensuring compatibility with devices and power modules that accept ST18 interfaces. The 1 m length balances reach and compactness for short power runs.

Suitable for

• Connecting equipment with Wieland ST18/3 power inlets and outlets
• Short power extensions in offices, workshops, and exhibition stands
• Replacing or extending OEM ST18/3 power leads for compatible devices

Key specifications

• Brand: Bachmann
• Model / MPN: 375.072
• EAN: 4016514023691
• Cable type: H05VV-F
• Conductors: 3G (three cores + ground)
• Conductor size: 1.50 mm²
• Length: 1 m
• Connector (end 1): Wieland ST18/3 plug
• Connector (end 2): Wieland ST18/3 socket
• Color: Black

How to use

Ensure both connected devices are switched off and disconnected from mains before attaching the cable. Insert the Wieland ST18/3 plug into the matching inlet and the Wieland ST18/3 socket into the matching outlet until they are fully seated. After connections are secure, restore power and verify that the connected device operates correctly. Remove the cable by first switching off and isolating power, then disengaging the ST18/3 connectors.

Recommendations

Use this cable only with devices and power modules designed for Wieland ST18/3 connections and with ratings compatible with an H05VV-F 3G 1.50 mm² cable. Avoid routing the cable through sharp edges, hot surfaces, or wet areas. Inspect the cable and connectors regularly for damage; replace the cable if any insulation or connector damage is found.
