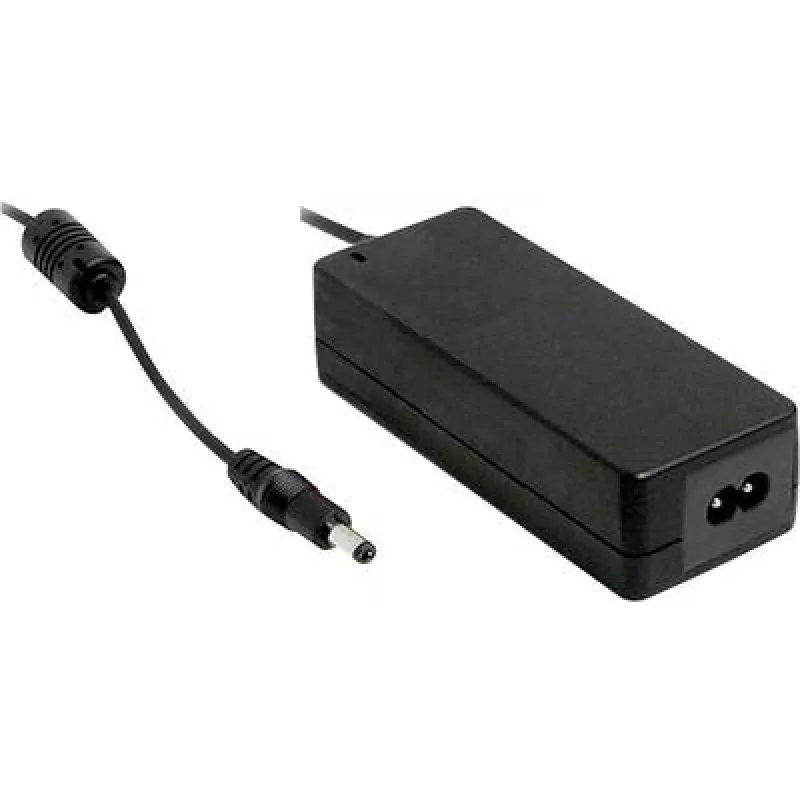

Power Adapter MEAN WELL GSM60B18-P1J 60W 18V Input 80-264V

The MEAN WELL GSM60B18-P1J is an AC-DC medical desktop adapter providing a regulated 18 V DC output at up to 3.3 A (60 W). It accepts a wide AC input range of 80–264 V and uses an AC 2-pole IEC320-C8 inlet. The adapter meets EN 60601 isolation requirements with 2xMOPP and is RoHS compliant. Its compact enclosure measures approximately 50 mm wide and 125 mm deep and the unit weighs about 320 g, making it suitable for desktop medical and electronic equipment that require a stable low-voltage supply.

Advantages

The adapter delivers a stable 18 V/3.3 A output with 60 W maximum power and wide input voltage compatibility (80–264 V), ensuring reliable operation in different mains conditions. EN 60601 2xMOPP isolation provides the safety level required for many medical applications. The compact size and moderate weight facilitate installation on or near equipment, while RoHS compliance confirms restriction of hazardous substances.

Suitable for

• Desktop medical devices requiring isolated low-voltage supply
• Laboratory instruments and diagnostic equipment
• Electronic devices and embedded systems that need 18 V, 3.3 A power
• Repair or replacement of compatible MEAN WELL GSM series power modules

Key specifications

• Model: MEAN WELL GSM60B18-P1J (MPN: GSM60B18-P1J, EAN: 4021087036764)
• Output: 18 V DC, 3.3 A (60 W)
• Input: 80–264 V AC
• AC inlet: IEC320-C8 (2-pole)
• Safety: EN 60601 with 2xMOPP isolation
• Compliance: RoHS
• Dimensions (approx.): 50 mm (W) x 125 mm (D)
• Weight (approx.): 320 g

How to use

Connect the adapter to the mains using a compatible IEC320-C8 AC mains lead, then connect the 18 V DC output to the device observing correct polarity and connector type. Ensure the connected equipment draws no more than 3.3 A. Place the adapter in a well-ventilated area and avoid covering it to allow heat dissipation. Verify compatibility with the target device and the required medical safety ratings before use.

Recommendations

Use the adapter only with equipment and connectors rated for 18 V DC output and up to 3.3 A. For medical applications, confirm that system-level safety requirements are met and schedule periodic inspections. Do not operate the adapter in wet or excessively dusty environments and avoid exposure to temperatures outside the manufacturer’s specified range.
