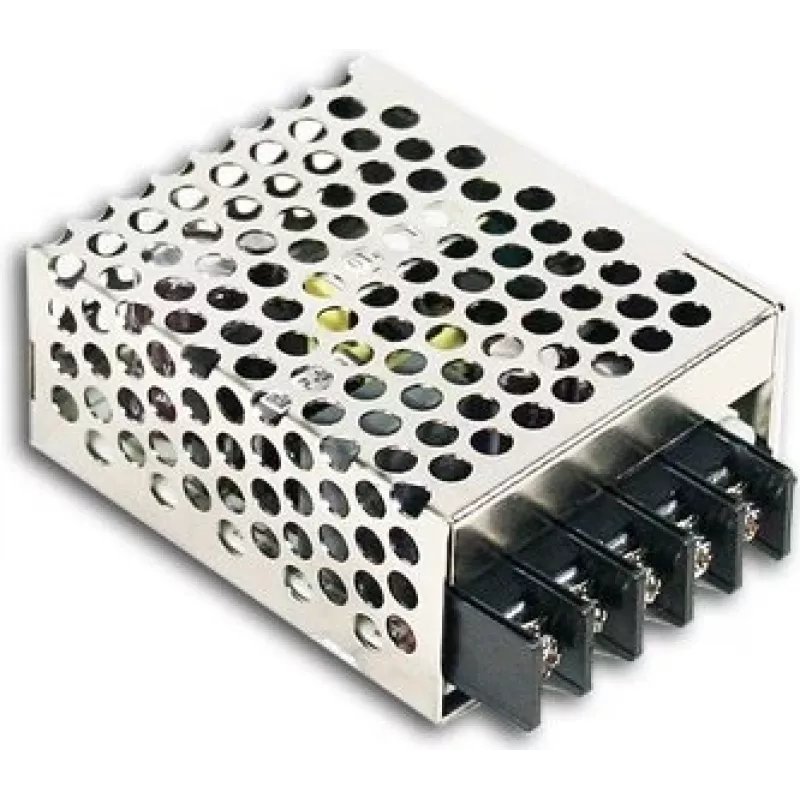

MEAN WELL RS-15-12 15W 12VDC 1.25A Enclosed Switching Power Supply 85-264VAC

MEAN WELL RS-15-12 15W 12VDC 1.25A Enclosed Switching Power Supply 85-264VAC
MEAN WELL RS-15-12 15W 12VDC 1.25A Enclosed Switching Power Supply 85-264VAC
R578
With an efficiency of 83%, the MEAN WELL RS-15-12 delivers 15W of reliable DC power from a universal AC input, making it an excellent choice for industrial and automation applications. This enclosed switching power supply converts 85-264VAC to a stable 12VDC output at up to 1.25A, all within a compa... Read More
Stock 326 Code 3494087 Brand MEAN WELL Model RS-15-12 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

With an efficiency of 83%, the MEAN WELL RS-15-12 delivers 15W of reliable DC power from a universal AC input, making it an excellent choice for industrial and automation applications. This enclosed switching power supply converts 85-264VAC to a stable 12VDC output at up to 1.25A, all within a compact metal case that withstands temperatures from -20°C to 70°C.

Overview

The RS-15-12 is part of MEAN WELL's popular RS-15 series, known for its high reliability and cost-effectiveness. It features a full range AC input, making it suitable for worldwide use without any adjustment. The unit is designed for chassis mounting and cooled by free air convection, ensuring silent operation. Built-in protections against short circuit, overload, over voltage, and over temperature safeguard both the power supply and connected equipment.

What stands out

  • Universal AC input (85-264VAC) for global compatibility
  • High efficiency up to 83%, reducing energy waste and heat
  • Compact metal housing with chassis mount for easy integration
  • Comprehensive protection: short circuit, overload, over voltage, over temperature
  • Wide operating temperature range: -20°C to +70°C
  • Low ripple and noise (120mVp-p) for stable output
  • Safety certifications: UL60950-1, TUV EN60950-1, CB, CE

Technical details

  • Output power: 15W
  • Output voltage: 12VDC
  • Output current: 1.25A
  • Input voltage: 85-264VAC
  • Input frequency: 47-63Hz
  • Input current: 0.35A at 115VAC, 0.25A at 230VAC
  • Efficiency: 83%
  • Ripple & noise: 120mVp-p
  • Voltage adjustment range: ±10%
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Cooling: Free air convection
  • Mounting: Chassis mount
  • Dimensions: 99 x 82 x 35 mm (L x W x H)
  • Weight: 0.3 kg

Our verdict

The MEAN WELL RS-15-12 is a robust and dependable power supply that excels in demanding environments. Its universal input, high efficiency, and comprehensive protections make it a top choice for engineers and system integrators seeking a long-lasting power solution.

Specifications
AC input frequency
47 - 63 Hz
AC input voltage
85 - 264 VAC
Brand
MEAN WELL
Category
Power Supply
Compliance certificates
CE, CB, UL60950-1, TUV EN60950-1
Cooling type
Free Air Convection
Depth
99 mm
EAN
4021087014786
Efficiency
83%
Height
35 mm
Model
RS-15-12
MPN
RS-15-12
Operating temperature (T-T)
-20 - 70 °C
Power protection features
Short Circuit, Overload, Over Voltage, Over Temperature
Product colour
Silver
Storage temperature (T-T)
-40 - 85 °C
Total power
15 W
Weight
0.14 kg
Width
82 mm
