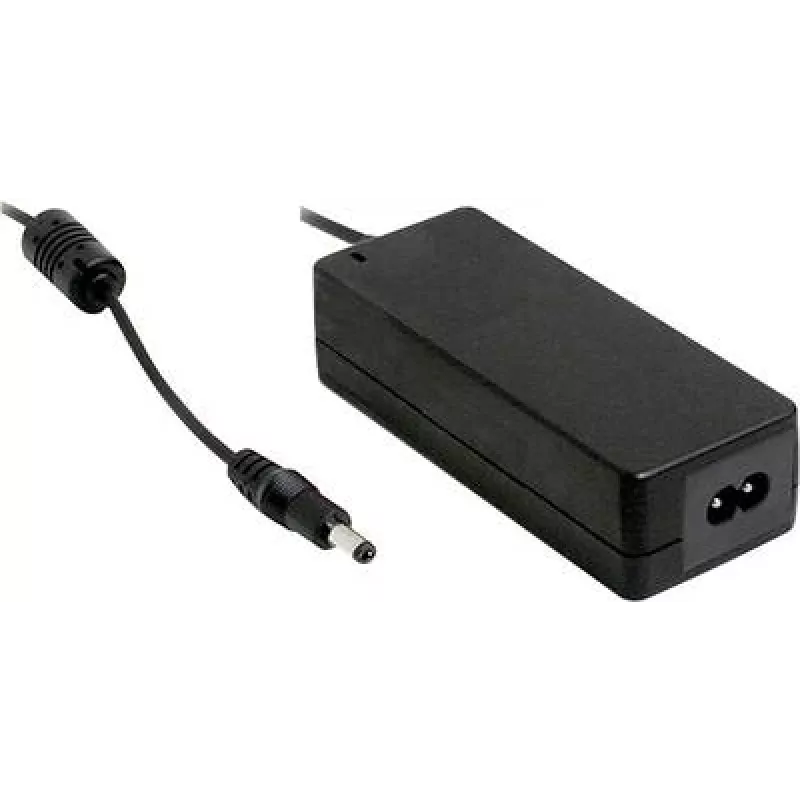

Power Adapter MEAN WELL GSM60B15-P1J 60W 15V 80-264V

The MEAN WELL GSM60B15-P1J is a compact AC-DC medical desktop adapter that provides stable 15 V DC output at up to 4.0 A (60 W) from an input range of 80–264 V AC. Designed for medical and professional electronic equipment, the adapter features an AC 2-pole IEC320-C8 inlet and meets EN 60601 safety requirements with 2xMOPP isolation. The unit is RoHS compliant, measures approximately 50 mm in width and 125 mm in depth, and weighs about 340 g.

Advantages

The adapter offers a regulated 15 V / 4.0 A output delivering up to 60 W of power in a compact desktop form factor. Its wide input voltage range (80–264 V AC) allows global compatibility, while EN 60601 2xMOPP certification ensures suitable isolation for medical applications. The IEC320-C8 AC inlet simplifies installation and replacement, and RoHS compliance confirms reduced hazardous substances.

Suitable for

• Medical devices and equipment requiring EN 60601-compliant power supplies
• Laboratory and diagnostic instruments
• Professional electronics and desktop systems needing a 15 V / 4 A supply

Key specifications

• Model: MEAN WELL GSM60B15-P1J (MPN GSM60B15-P1J, EAN 4021087036771)
• Output: 15 V DC, 4.0 A (60 W)
• Input: 80–264 V AC
• AC inlet: 2-pole IEC320-C8
• Safety: EN 60601 with 2xMOPP isolation
• Compliance: RoHS
• Dimensions (approx.): 50 mm (W) × 125 mm (D)
• Weight (approx.): 340 g

How to use

Connect the adapter to an appropriate AC mains supply via the IEC320-C8 inlet, then plug the DC output into the device requiring 15 V DC. Ensure the connected equipment is rated for a 15 V / 4.0 A supply and that cables and connectors are secure. Allow adequate ventilation around the adapter during operation and avoid placing heavy objects on top of it.

Recommendations

Use this adapter in accordance with applicable medical equipment standards and the device manufacturer's instructions. Do not open or modify the adapter; service and repairs should be performed by qualified personnel. Keep the adapter away from moisture and excessive heat, and verify compatibility with the target device's input specifications before use.
