Power Adapter MEAN WELL GSM25E15-P1J 25W 15V Input 80-264V

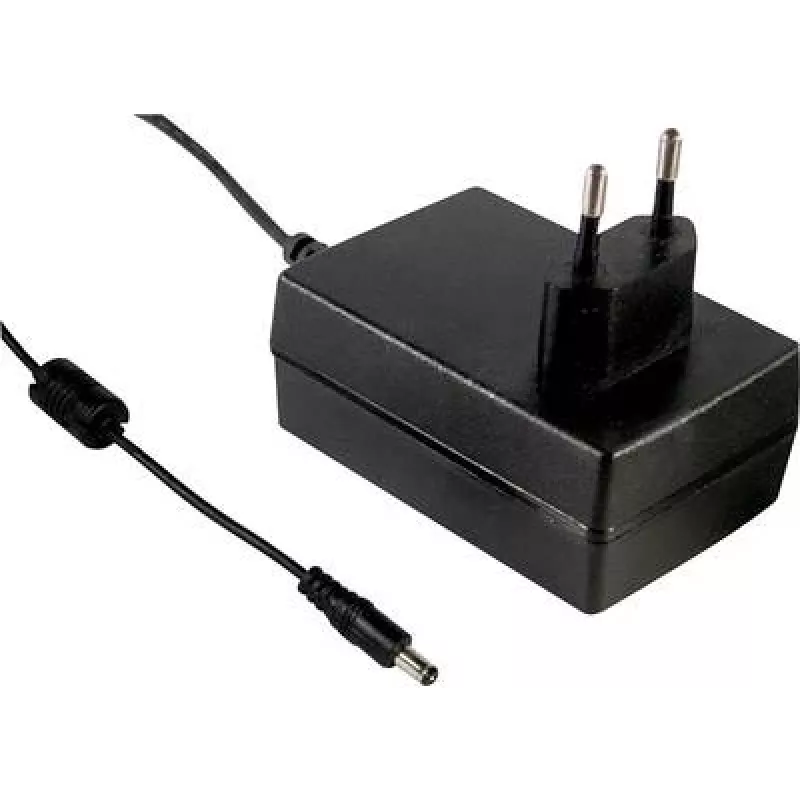

The MEAN WELL GSM25E15-P1J is an AC-DC medical wall-mount single-output adapter delivering 15 V DC at 1.66 A (25 W). It accepts a wide input voltage range of 80–264 V AC and is designed for medical applications with EN60601 compliance and 2xMOPP isolation. The adapter has a compact housing and a 2-pin Euro plug for direct connection to mains outlets.

Advantages

This power adapter provides a stable 15 V DC output at up to 1.66 A, supports a wide universal input range (80–264 V), and meets medical safety requirements (EN60601, 2xMOPP). Its compact dimensions (54 × 79 × 33 mm) and RoHS compliance make it suitable where space and environmental standards matter. Integrated Euro 2-pin plug enables straightforward wall-mount installation.

Suitable for

• Medical devices requiring isolated 15 V DC supply
• Small laboratory or diagnostic equipment
• Embedded systems and electronics needing a compact wall-mount adapter

Key specifications

• Model: MEAN WELL GSM25E15-P1J
• Output: 15 V DC, 1.66 A (25 W)
• Input: 80–264 V AC
• Plug type: 2-pin Euro plug
• Safety: EN60601, 2xMOPP
• Dimensions: 54 mm (W) × 79 mm (D) × 33 mm (H)
• RoHS compliant
• Brand: MEAN WELL, MPN: GSM25E15-P1J, EAN: 4021087036931

How to use

Plug the adapter into a compatible mains socket using the integrated 2-pin Euro plug. Connect the 15 V DC output lead to the device’s DC input, ensuring correct polarity and that the device’s power requirements do not exceed 1.66 A. Use in environments and equipment that conform to the adapter’s medical safety rating (EN60601) and observe any device-specific installation instructions.

Recommendations

Install the adapter in a well-ventilated location away from heat sources and moisture. Verify compatibility with the target device’s voltage and current requirements before use. For medical applications, follow relevant standards and local regulations when integrating this adapter into equipment.
