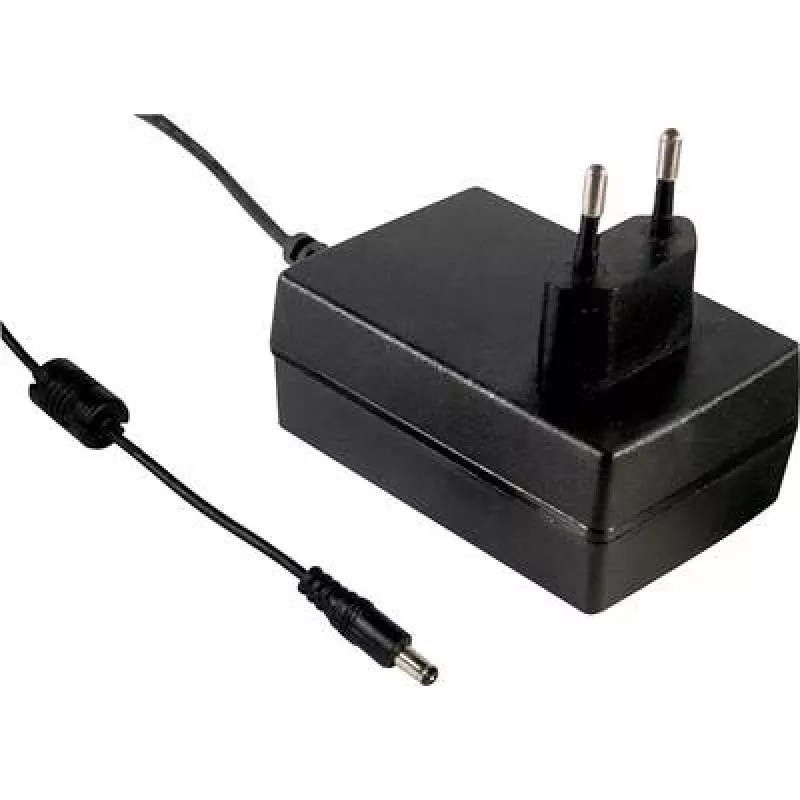

Power Adapter MEAN WELL GSM25E05-P1J 25W Input 80-264V Output 5V

The MEAN WELL GSM25E05-P1J is an AC-DC medical wall-mount single-output power adapter delivering 5 V DC at 4 A (25 W). It accepts a wide input range of 80–264 V AC, has a 2-pin Euro plug for mains connection and meets medical safety isolation requirements with 2xMOPP. The adapter is compact (54 mm × 79 mm × 33 mm) and RoHS compliant.

Advantages

This adapter provides a stable 5 V output at up to 4 A suitable for medical and electronic devices requiring regulated low-voltage power. Wide input voltage range (80–264 V) allows use in different mains systems. Medical-grade isolation (2xMOPP) and compliance with EN60601 increase safety for medical applications. The compact wall-mount design with a Euro plug simplifies installation and saves space.

Suitable for

• Medical devices and equipment requiring medical-grade isolation
• Embedded electronics and single-board computers needing 5 V/4 A power
• Small laboratory instruments and diagnostic peripherals
• General-purpose 5 V powered equipment in regions with Euro mains

Key specifications

• Manufacturer: MEAN WELL
• Model: GSM25E05-P1J
• Output: 5 V DC, 4 A, single output (25 W)
• Input voltage: 80–264 V AC
• Plug type: 2-pin Euro plug
• Medical safety: EN60601 compliant, 2×MOPP
• Dimensions: 54 mm (W) × 79 mm (D) × 33 mm (H)
• RoHS: compliant
• MPN: GSM25E05-P1J
• EAN: 4021087036979

How to use

Connect the adapter to a compatible mains outlet using the built-in 2-pin Euro plug. Attach the DC output cable to the target device designed to accept a 5 V DC supply, observing correct polarity. Ensure the connected device does not draw more than 4 A. Place the adapter where ventilation is adequate and avoid covering it during operation. Use only in environments and applications appropriate for medical-grade power supplies if used with medical equipment.

Recommendations

Verify device compatibility with a 5 V/4 A supply and check polarity before powering. For medical applications, install according to applicable medical device standards and the equipment manufacturer’s instructions. Do not expose the adapter to moisture or extreme temperatures; disconnect from mains before cleaning or maintenance.
