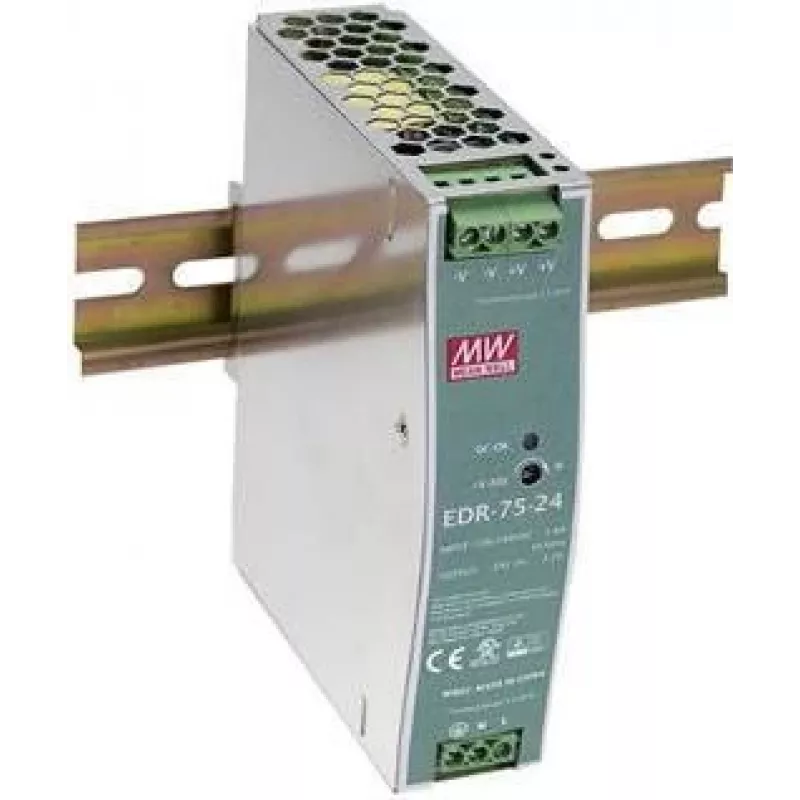

Power adapter MEAN WELL EDR-75-24 75 W 24 V 90-264 V

The MEAN WELL EDR-75-24 is an AC-DC industrial DIN-rail power supply providing 24 V output at up to 3.2 A (75 W) from a wide input range of 90–264 V AC. Housed in a metal case with compact DIN-rail form factor (32 mm width, 102 mm depth, 125.2 mm height), it is designed for reliable operation in control cabinets and industrial automation systems and is RoHS compliant.

Advantages

The EDR-75-24 delivers stable 24 V power with 75 W nominal output in a narrow 32 mm DIN-rail enclosure, saving panel space while maintaining thermal performance due to its metal housing. Its universal 90–264 V AC input supports global mains voltages, and the device meets RoHS requirements for reduced hazardous substances. The metal case offers mechanical robustness and improved heat dissipation for continuous industrial use.

Suitable for

• Industrial control cabinets and PLC power supply
• Automation equipment and factory machinery
• Embedded systems and communication equipment requiring 24 V
• Replacement or upgrade of existing DIN-rail 24 V power modules

Key specifications

• Model: MEAN WELL EDR-75-24 (MPN: EDR-75-24)
• Output: 24 V DC, 3.2 A, 75 W
• Input voltage: 90–264 V AC
• Case: metal DIN-rail enclosure
• Dimensions: 32 mm (W) × 102 mm (D) × 125.2 mm (H)
• Compliance: RoHS

How to use

Mount the power supply on a standard DIN rail inside the control cabinet and secure the input and output connections according to the wiring diagram supplied by the manufacturer. Ensure the input voltage is within the specified 90–264 V AC range and observe correct polarity for the 24 V DC output. Allow sufficient ventilation around the metal case and follow any grounding instructions to maintain safe operation.

Recommendations

Install the unit in a ventilated enclosure away from direct heat sources, observe the rated output load (max 3.2 A), and perform periodic inspections of terminals and mounting to ensure reliable long-term operation.
