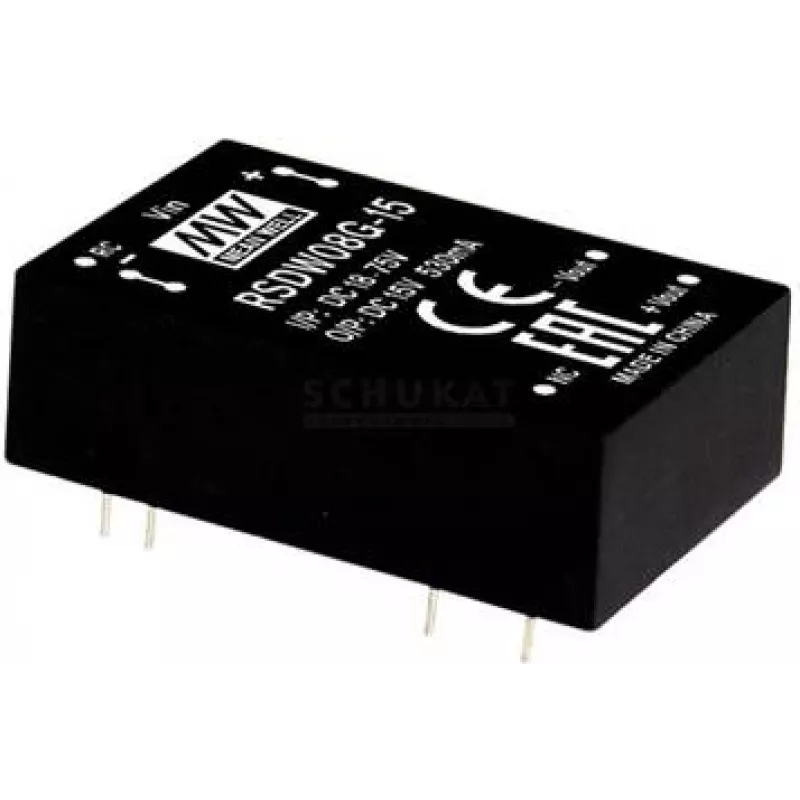

Power adapter/inverter mean well RSDW08G-15, 8 W, input 18–75 V, output 15 V

Mean Well RSDW08G-15 is a DC-DC railway single output converter that delivers a regulated 15 V output from a wide 18–75 V DC input range. Designed for compact integration in industrial and railway systems, it provides up to 8 W output power with 1.5 kVDC input-to-output isolation and a DIP through-hole package. The module includes a remote ON/OFF control and is RoHS compliant.

Advantages

The RSDW08G-15 offers a wide input voltage range suitable for fluctuating supply environments, reliable 1.5 kVDC isolation for safety between input and output, and a compact DIP through-hole form factor for straightforward board-level mounting. Its regulated 15 V output and remote ON/OFF function simplify system design where controlled power sequencing is needed.

Suitable for

• Industrial electronics and control systems
• Railway and transport power modules
• Telecom and embedded systems requiring 15 V rails
• Applications needing compact, board-mounted DC-DC conversion

Key specifications

• Brand: Mean Well
• Model: RSDW08G-15 (MPN)
• Input voltage: 18–75 V DC
• Output voltage: 15 V DC
• Output power: 8 W
• Output current: up to 0.53 A
• Isolation: 1.5 kVDC input-to-output
• Package: DIP through-hole
• Features: Remote ON/OFF, RoHS compliant
• EAN: 4021087048361

How to use

Mount the DIP through-hole converter on the PCB according to the manufacturer’s recommended footprint and wiring. Apply a DC input within 18–75 V and verify correct polarity. Use the remote ON/OFF pin to control the module power state as specified in the technical documentation. Ensure the load does not exceed the rated 8 W (0.53 A at 15 V) and provide appropriate decoupling and thermal management on the board.

Recommendations

Use within the specified input range and keep ambient temperature and ventilation within the device operating limits. Observe isolation clearances in high-voltage or safety-critical installations and follow applicable standards for railway and industrial equipment.
