Power adapter/inverter mean well RPD-60A 60 W, input 90–264 V, output 5 V, RoHS, 50.8×101.6×29 mm

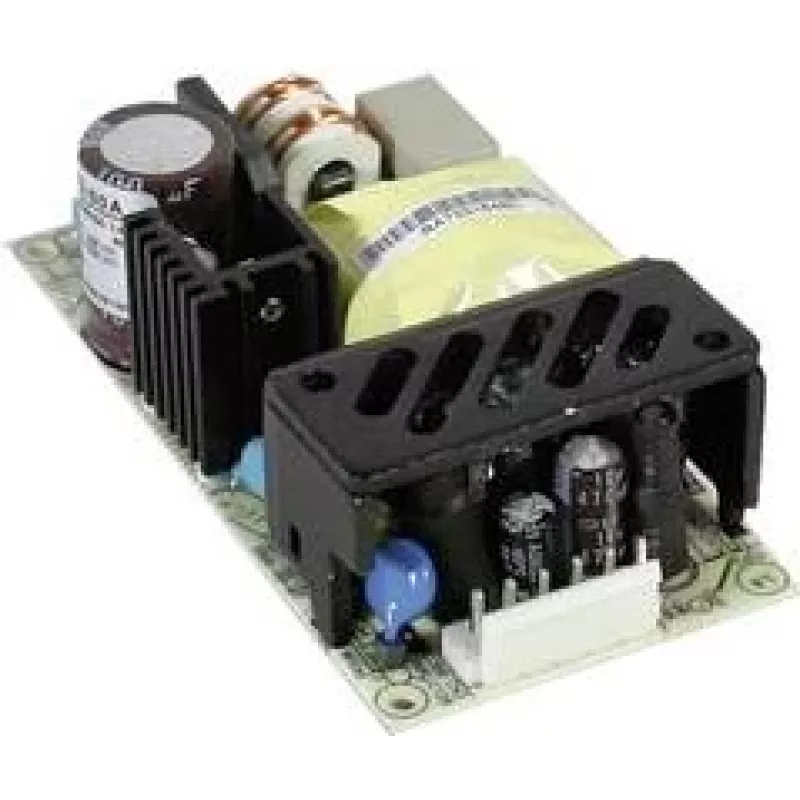

MEAN WELL RPD-60A is a compact 60 W power adapter/inverter with a universal AC input range of 90–264 V and a regulated 5 V DC output. The unit is designed for applications that require a stable low-voltage supply in a small footprint, with a housing size of 50.8 × 101.6 × 29 mm. RoHS compliance and robust AC‑DC conversion make this adapter suitable for embedded systems, industrial control panels and OEM equipment where reliable 5 V power is needed.

Advantages

The RPD-60A delivers a regulated 5 V output at up to 5.5 A, providing stable voltage under variable mains conditions thanks to its wide input range of 90–264 V. Its compact dimensions allow integration into space-constrained installations. Compliance with RoHS ensures reduced hazardous substances, and the build quality is tailored to continuous operation in industrial and embedded environments.

Suitable for

• Embedded systems and single-board computers
• Industrial control panels and automation equipment
• OEM products requiring a compact 5 V power source
• Prototyping and small-scale production assemblies

Key specifications

• Output voltage: regulated 5 V DC
• Output current capacity: up to 5.5 A (60 W total)
• Input voltage range: 90–264 V AC
• Power rating: 60 W
• Housing dimensions: 50.8 × 101.6 × 29 mm
• RoHS compliant

How to use

Install the RPD-60A following standard electrical safety practices, ensuring proper mounting and adequate ventilation around the unit. Connect the AC input to a mains supply within the specified 90–264 V range, observing correct polarity and grounding where required. Connect the regulated 5 V DC output to the load, verifying that the connected device does not exceed the adapter’s 5.5 A current capability. Allow the adapter to operate under rated conditions and monitor for proper voltage output during initial testing.

Recommendations

For reliable long-term operation, mount the adapter in a location with sufficient airflow, avoid enclosing the unit in tightly sealed compartments, and protect against excessive ambient temperatures. Verify that the load’s inrush and continuous current demands remain within the adapter’s ratings. When integrating into OEM or industrial systems, follow applicable installation standards and provide appropriate fusing and transient protection on both input and output lines.
