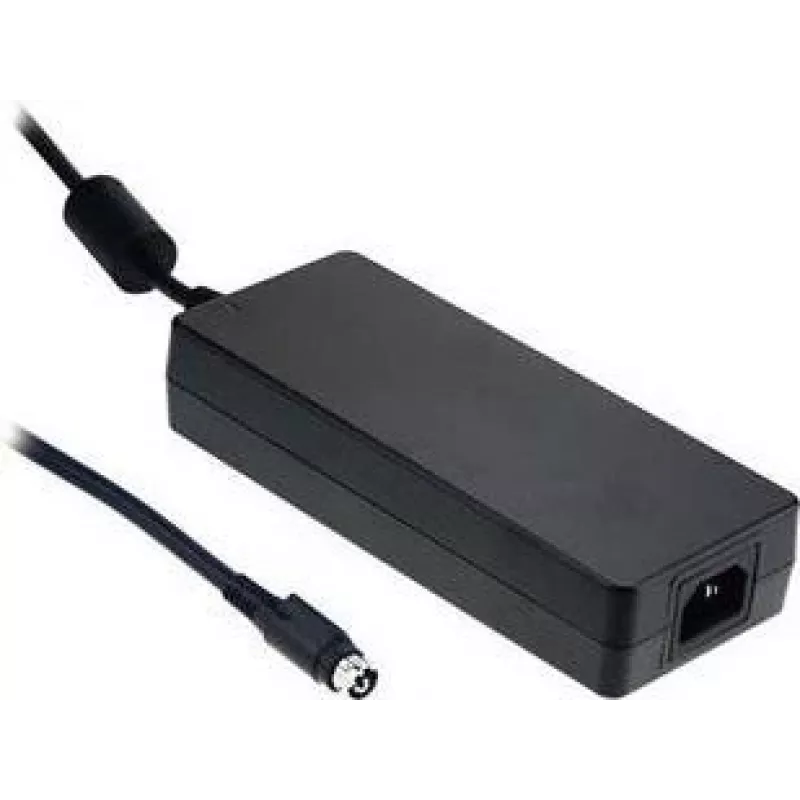

Power adapter/inverter mean well GST160A36-R7B, 160 W, 36 V output, 85–264 V input, RoHS, 72×175×35 mm

Mean Well GST160A36-R7B is an AC-DC industrial desktop adapter providing 36 V DC at 4.44 A with a rated output power of 160 W. It accepts a wide AC input range of 85–264 V and uses a 3-pole IEC320-C14 inlet. The unit is RoHS compliant and has compact dimensions of 72×175×35 mm, suitable for space-limited installations and professional power conversion tasks.

Advantages

The adapter offers a wide input voltage range for global compatibility, a fixed 36 V DC output at up to 4.44 A for consistent device powering, and a standard IEC320-C14 AC inlet for easy connection. Its compact housing saves space in cabinets or on DIN-rail setups, and RoHS compliance ensures adherence to hazardous-substance regulations.

Suitable for

• Industrial control equipment
• Automation systems and PLCs
• Communication and network devices
• Embedded electronics and small machinery
• Cabinet or DIN-rail power distribution

Key specifications

• Model: Mean Well GST160A36-R7B
• Output: 36 V DC, 4.44 A (160 W)
• Input voltage: 85–264 V AC
• AC inlet: 3-pole IEC320-C14
• Compliance: RoHS
• Dimensions: 72 × 175 × 35 mm

How to use

Connect the adapter to an AC supply using the IEC320-C14 inlet and verify the input voltage falls within the specified 85–264 V range. Connect the 36 V DC output to the load, observing correct polarity and ensuring the connected devices do not exceed the 4.44 A output current. Install the adapter in a well-ventilated location inside a cabinet or on appropriate mounting hardware to maintain safe operating temperature.

Recommendations

For reliable operation, avoid overloading beyond the rated 160 W and ensure adequate cooling clearance around the unit. Use appropriate fusing and wiring per local electrical codes and verify compatibility with your equipment's voltage and current requirements before installation.
