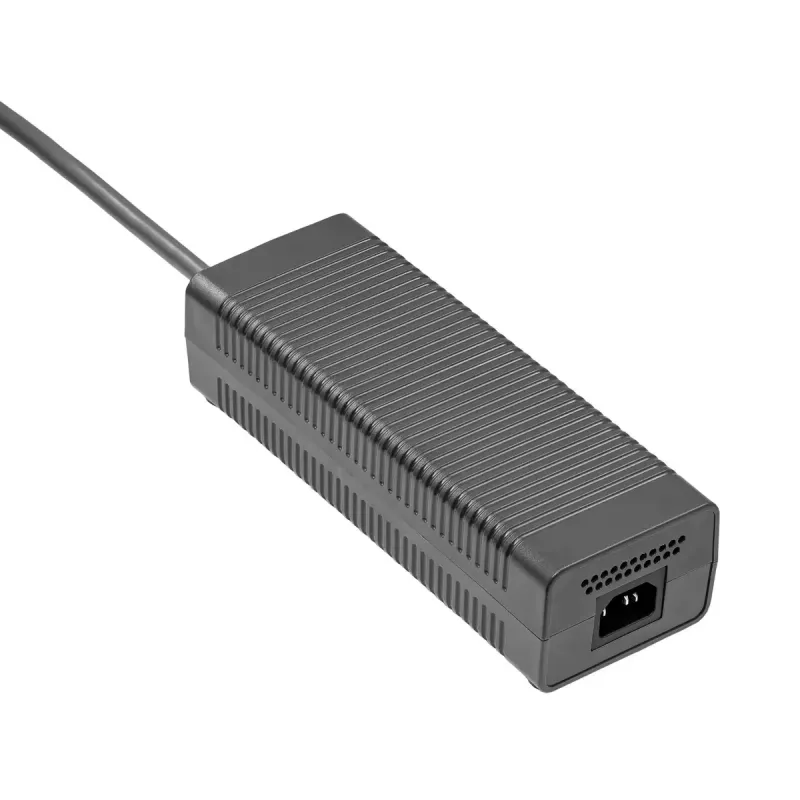

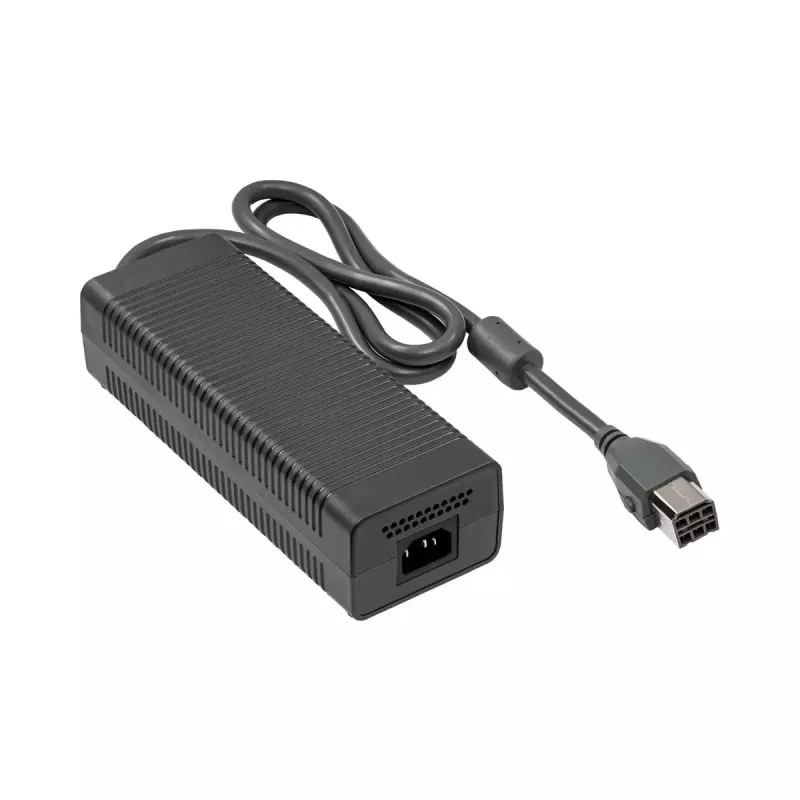

Power adapter Akyga AK-PD-14 203 W Indoor Grey

The Akyga AK-PD-14 power adapter is designed for Xbox 360 gaming consoles and provides the required power for reliable operation. It supplies a main output of 12 V at 16.5 A and a standby output of 5 V at 1 A, includes an integrated fan for thermal protection, and features LED indicators to show connection status. The package includes a 1.2 m mains cable and the adapter is finished in grey with compact dimensions suitable for indoor use.

Advantages

This replacement power supply delivers stable voltages needed for Xbox 360 consoles, reduces the risk of overheating thanks to the built-in cooling fan, and helps identify connection states with distinct red and green LEDs. Its compact size and included power cord simplify installation in different setups.

Suitable for

• Power replacement for Xbox 360 consoles
• Repair or maintenance of gaming console power units
• Indoor use where a compact, vented adapter is required

Key specifications

• Model: Akyga AK-PD-14 (MPN: AK-PD-14)
• Power: 203 W
• Main output: 12 V ⎓ 16.5 A
• Standby output: 5 V ⎓ 1 A
• Indicator LEDs: red (mains), green (connected to console)
• Cable length: 1.2 m (mains cable included)
• Colour: Grey
• Weight: 0.64 kg

How to use

Connect the included 1.2 m mains cable to a suitable AC outlet and plug the adapter into the Xbox 360 power input. Verify the red LED lights when the adapter is connected to mains and the green LED lights when the adapter is connected to the console. Ensure adequate ventilation around the adapter so the built-in fan can operate effectively and prevent overheating.

Recommendations

Place the adapter on a flat, hard surface with at least a few centimetres of clearance around ventilation openings. Do not cover the adapter or block the fan. Use only in dry, indoor environments and disconnect from mains before cleaning or servicing.
