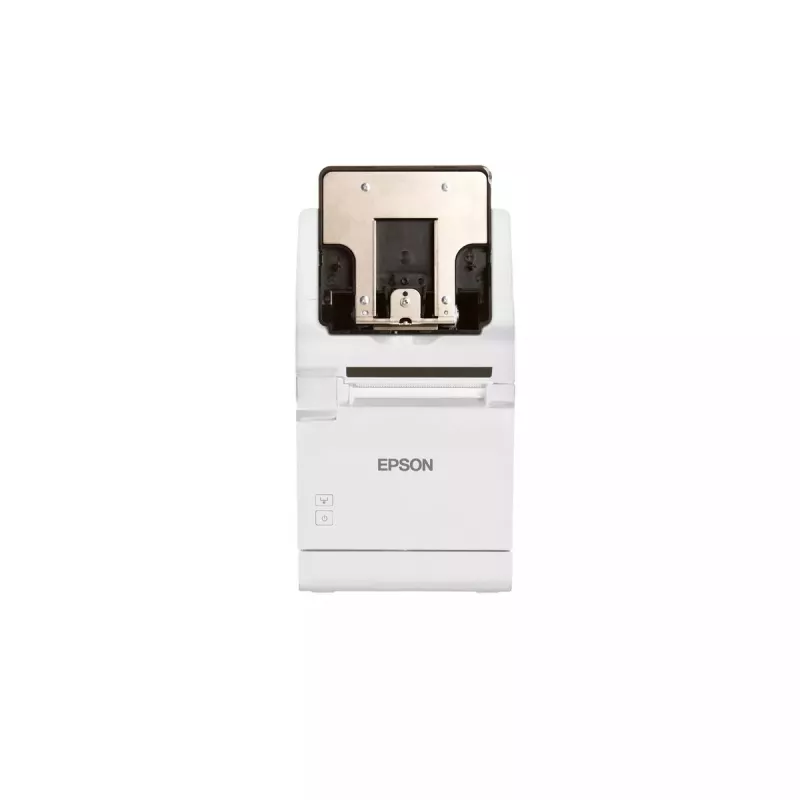

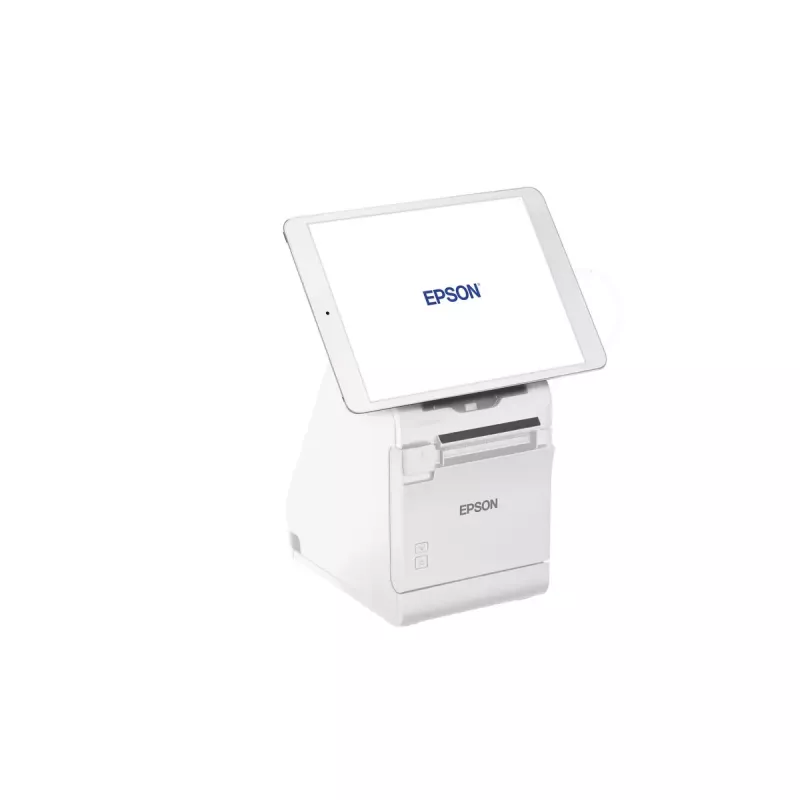

POS printer Epson TM-M30II-S (011)

The Epson TM-M30II-S (011) is a wired direct thermal POS printer designed for retail and hospitality points of sale. It delivers high-resolution receipts with a maximum print resolution of 203 x 203 DPI and supports paper widths of 58 mm and 80 mm, with a maximum printing width of 80 mm. The compact unit accepts rolls up to 83 mm in diameter, offers a print speed up to 250 mm/sec and connects via USB Type-A and USB Type-B, while also providing expandable storage compatibility with MicroSD cards. With a sound level of 55 dB and an MTBF of 360,000 hours, this Epson model is intended to provide reliable everyday performance in busy service environments.

Advantages

Compact and space-saving design allows easy placement at crowded points of sale while maintaining a professional appearance in white finish. Direct thermal print technology removes the need for ink or toner, reducing operating costs and simplifying maintenance. Fast print speed and support for standard receipt widths ensure smooth transaction flows. Robust reliability backed by a high MTBF contributes to reduced downtime and predictable lifecycle costs. Multiple wired connectivity options and MicroSD support offer straightforward integration into existing POS systems.

Suitable for

• Retail checkout counters and small shops
• Cafes, restaurants and quick-service points
• Ticketing and event entry kiosks with receipt needs
• Pharmacies and service desks requiring fast receipts

Key specifications

• Print technology: direct thermal
• Maximum printing width: 80 mm
• Supported paper widths: 58 mm, 80 mm
• Maximum roll diameter: 83 mm
• Print speed: up to 250 mm/sec
• Print resolution: 203 x 203 DPI

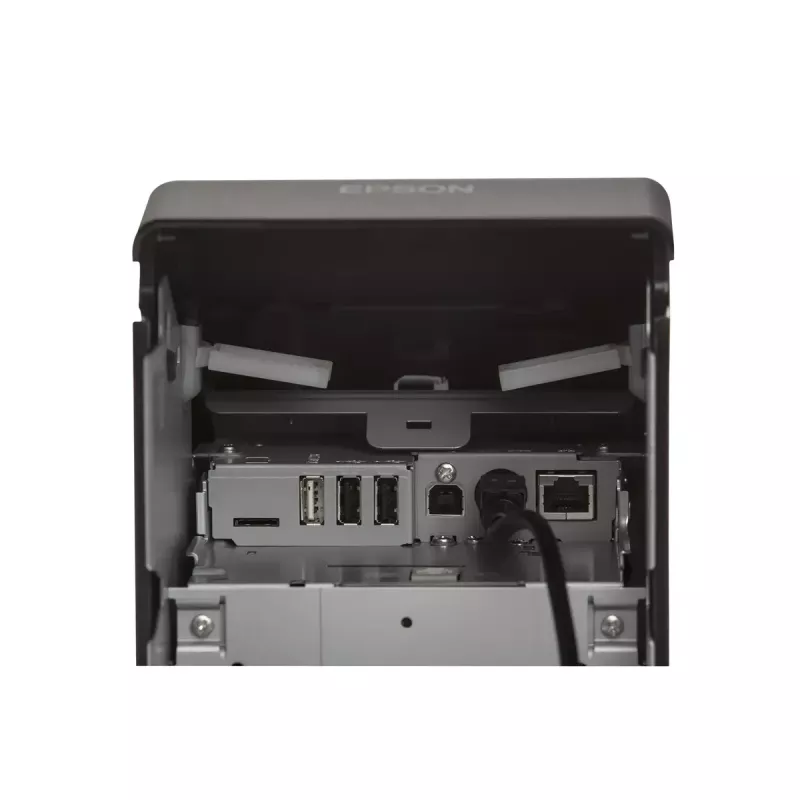

• Connectivity: USB Type-A, USB Type-B
• MicroSD card slot for local storage/firmware
• Weight: 2.9 kg
• Sound level: 55 dB
• Mean time between failures (MTBF): 360,000 hours
• Product colour: white
• Ethernet LAN: supported

How to use

Install the TM-M30II-S on a stable surface near the POS terminal and connect it to power and the host system using the provided USB Type-A or USB Type-B cable according to your POS configuration. Load a direct thermal paper roll, ensuring the paper edge feeds correctly and the cover is securely closed. Configure printer settings on your POS software to match the selected paper width (58 mm or 80 mm) and set the correct communication port. If required, insert a compatible MicroSD card for additional storage or firmware updates, following the manufacturer’s instructions. After initial setup, run a test print to verify alignment and connectivity.

Recommendations

Use high-quality direct thermal paper rated for receipt printers to maintain print clarity and prolong head life. Keep the printer and its surroundings free of dust and grease, and perform periodic head cleaning as specified by Epson. Position the printer to allow easy roll replacement and cable access, and schedule firmware updates when available to ensure compatibility and security with your POS system.
