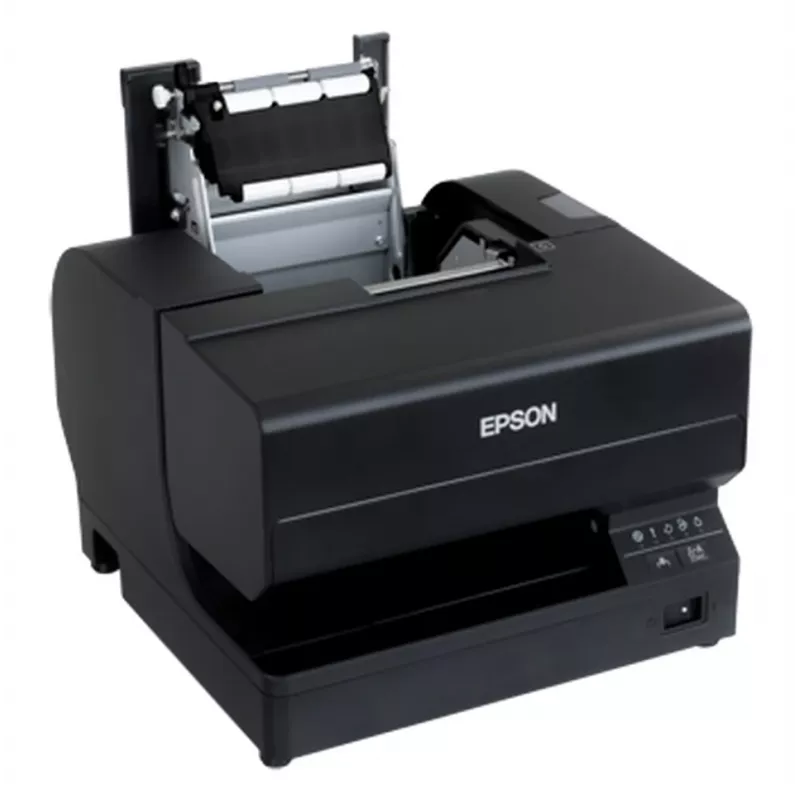

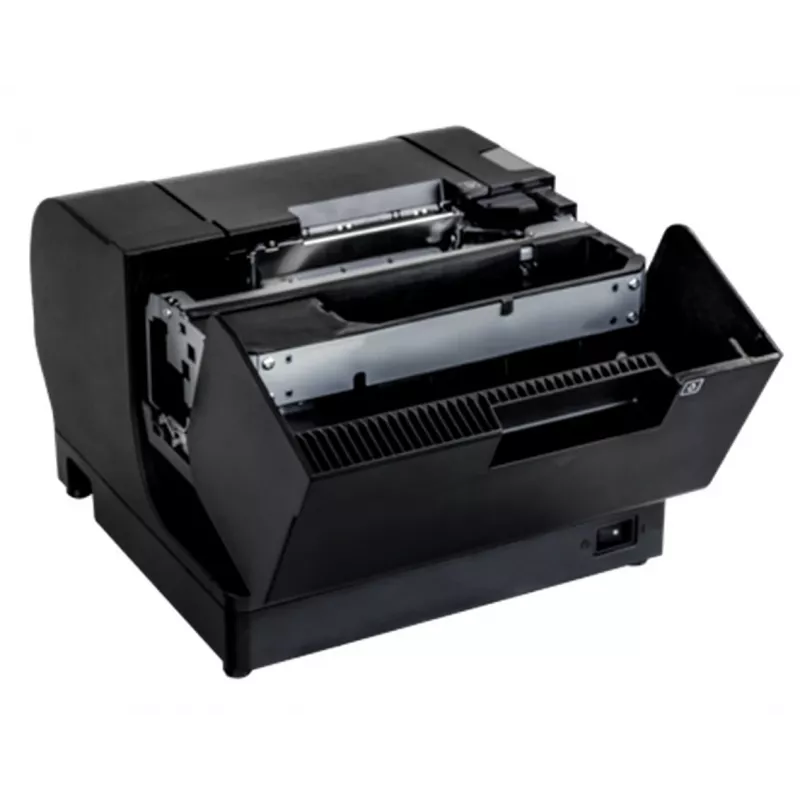

POS printer Epson TM-J7700(321) W/O MICR WHITE INC PSU EU

The Epson TM-J7700(321) W/O MICR WHITE INC PSU EU is a high-speed inkjet POS printer designed for retail and hospitality environments where reliable receipt and document printing is required. It supports paper widths from 58 to 83 mm and a media thickness range of 0.06 to 0.09 mm, with a maximum slip size of 230 x 297 mm. The printer offers a print speed of 98 mm/sec, 600 dpi print quality, USB Type-B and Ethernet LAN connectivity (10/100 Mbit/s), and an autocutter rated for 1.5 million cuts. Its mean time between failures (MTBF) of 180,000 hours and a sound level of 55 dB make it suitable for continuous, high-volume use.

Advantages

Inkjet print technology delivers higher resolution output and faster print speeds compared with previous low-resolution models, producing clear, detailed receipts and slips at up to 98 mm/sec. The device is engineered for low total cost of ownership through efficient ink usage and simple maintenance: cartridges are easy to install and paper rolls load via drop-in feed. Backwards compatibility and a matching footprint allow straightforward replacement of older models without workspace modification. Robust mechanical components, including an autocutter rated for 1.5 million cuts and a high MTBF, contribute to long-term operational reliability.

Suitable for

• Retail point-of-sale receipt and slip printing
• Restaurant and hospitality order and bill printing
• Ticketing and small office invoice printing
• Environments requiring integration with POS systems over USB or Ethernet

Key specifications

• Print technology: Inkjet
• Print speed: 98 mm/sec
• Print resolution: up to 600 dpi
• Supported paper widths: 58–83 mm
• Media thickness: 0.06–0.09 mm
• Maximum slip size: 230 x 297 mm
• Connectivity: USB Type-B, Ethernet LAN (10/100 Mbit/s)
• Sound level: 55 dB
• Autocutter durability: 1,500,000 cuts
• Mean time between failures (MTBF): 180,000 hours
• Weight: 5.8 kg
• Product colour: Black

How to use

Install the printer following the supplied user manual and connect via USB Type-B or to a local network using the Ethernet LAN port. Load paper using the drop-in roll mechanism and install ink cartridges using the easy-install design to minimise downtime. Configure device settings in the POS or ePOS driver software to match the selected paper width and print density. For slip printing, ensure slip size does not exceed 230 x 297 mm and set the application to send the appropriate print commands for slip handling.

Recommendations

For consistent print quality and long-term reliability, use manufacturer-recommended ink cartridges and paper types within the specified thickness range. Position the printer on a stable surface to reduce noise and wear, perform routine visual checks of the cutter and paper path, and follow scheduled maintenance procedures in the manual. When replacing an older compatible model, the TM-J7700 can be swapped in with minimal adjustments due to its matching footprint.
