Pointed chisel drill bit KWB 247185

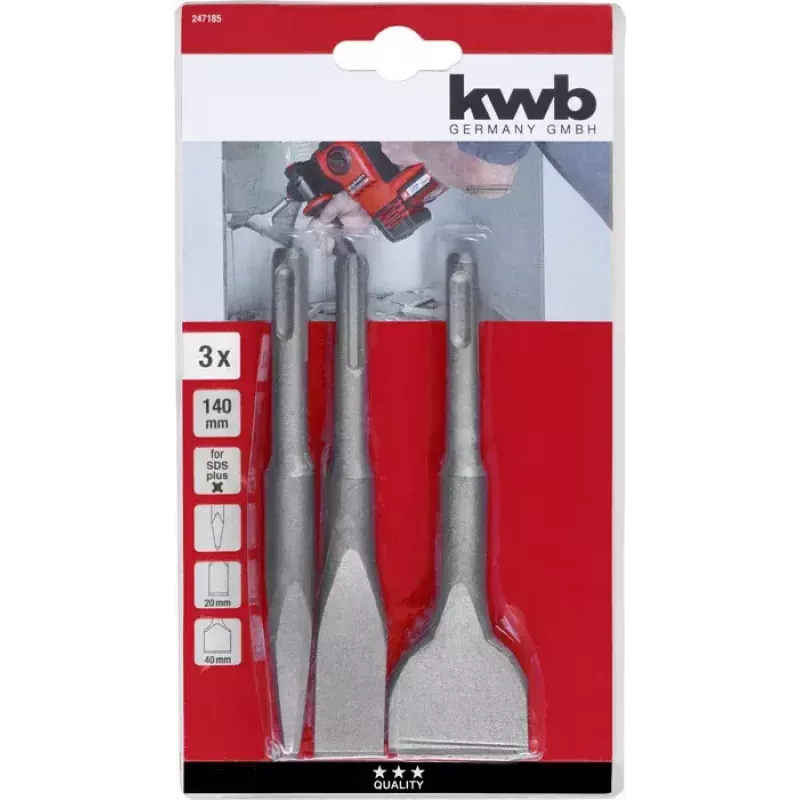

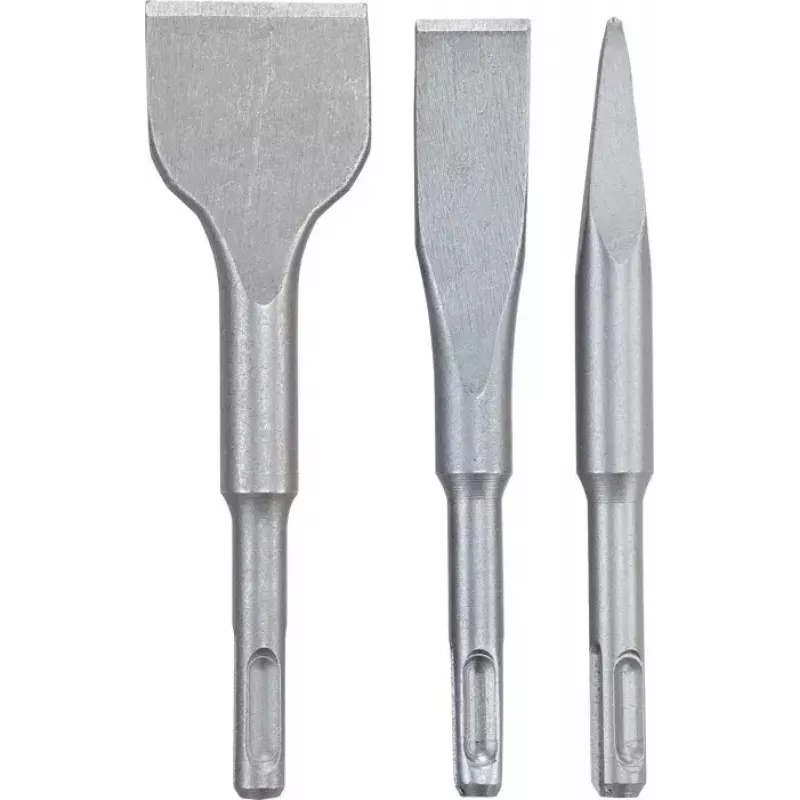

SDS CHISEL SET 140 MM 3 PCS — a set of three SDS Plus chisels with a length of 140 mm designed for use with rotary hammers that have a rotation stop. The set contains two flat chisels (20 mm and 40 mm) for high material removal and one pointed chisel for adjustment work. Made from rugged chromium steel (CR) with a hardness of HRC 45–48 and supplied in a slide-in blister pack.

Advantages

The chisels use an SDS Plus shaft for secure mounting in compatible hammer drills and are manufactured from CR steel with HRC 45–48 for good durability and wear resistance. The combination of two flat chisels and a pointed chisel covers both material removal and precise adjustment tasks. The 140 mm length is suitable for common chisel applications on stone and concrete.

Suitable for

Key specifications

How to use

Insert the SDS Plus shank into the rotary hammer’s SDS Plus chuck according to the tool manufacturer’s instructions and ensure the rotation stop is engaged if required. Select the appropriate chisel (flat for material removal, pointed for adjustment), position the chisel tip on the work surface, and operate the rotary hammer following normal safety and operating procedures. Replace chisels by retracting the locking sleeve and removing the shank when the tool is switched off and unplugged or the battery is removed.

Recommendations

Wear appropriate personal protective equipment (safety glasses, gloves, hearing protection and a dust mask) when chiselling. Use the flat 20 mm or 40 mm chisel for faster material removal and the pointed chisel for detail work. Verify compatibility with your rotary hammer model (SDS Plus and rotation stop required) before use.
