Pin header DeLOCK 90791 Electric wire connector 230V 24mm

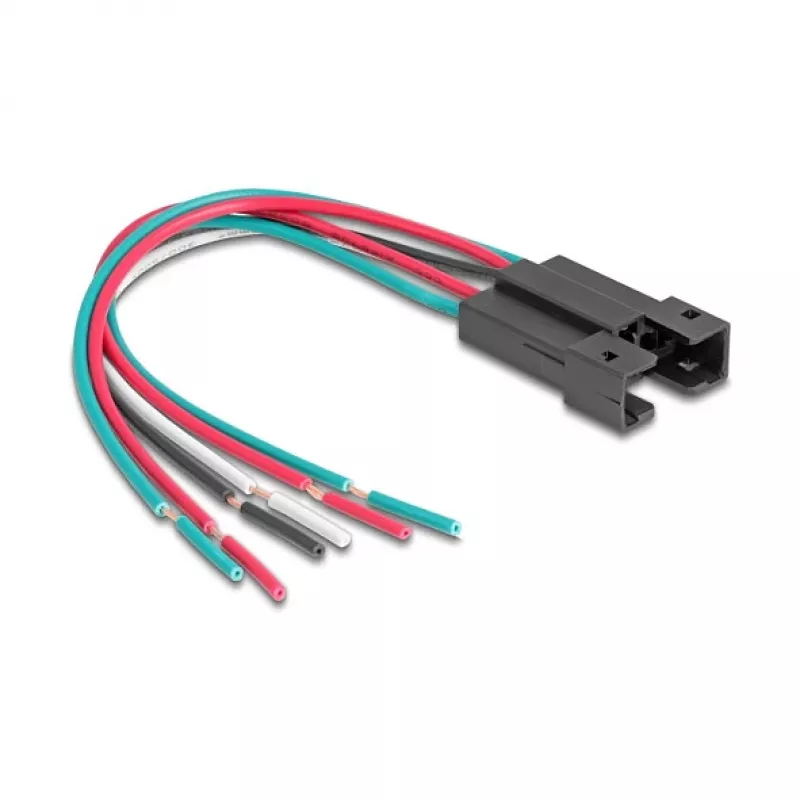

The DeLOCK 90791 is a straight pin header electric wire connector intended for 230V applications and designed to fit metal push buttons or switches with or without LED lighting. It measures 24 mm in length and has a pin layout compatible with specific switch designs. The connector housing is black and is available in sizes and shapes that accommodate different push button designs.

Advantages

The connector provides a reliable electrical connection for metal push buttons and switches at mains voltage (230V). Its straight pin header design ensures straightforward installation on compatible devices. The compact 24 mm length makes it suitable for use where space is limited, and the black housing offers a neutral appearance that integrates with various switch designs.

Suitable for

Key specifications

How to use

Verify that the pin layout of the DeLOCK 90791 matches the socket pattern of the metal push button or switch before installation. Align the straight pin header with the switch contacts and insert firmly until the connector seats fully. Ensure that all wiring is performed with the power disconnected and that connections are secured according to standard electrical practices for 230V circuits.

Recommendations

Use the connector only with compatible push buttons or switches and observe local electrical codes. Disconnect mains power before installation and, if necessary, consult a qualified electrician for mounting in permanent installations.
