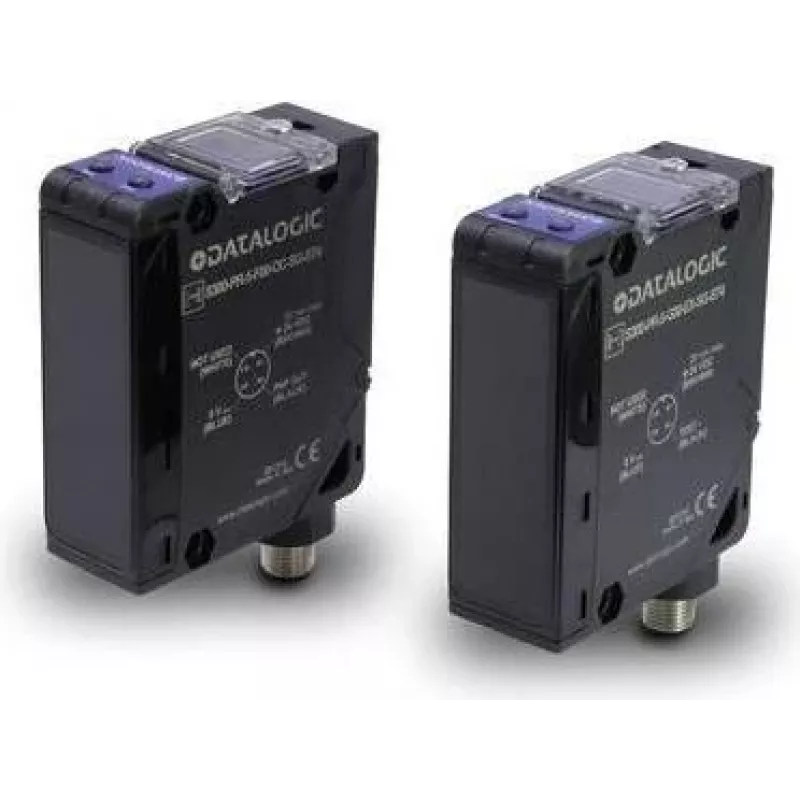

Photoelectric sensor Datalogic S300-PR-1-C01-RX, black plastic housing, 24–240 V AC, 0.025 kHz, 3 A, 25×70×100 mm

Datalogic S300-PR-1-C01-RX is a photoelectric sensor in a black plastic housing designed for object detection and presence sensing in industrial environments. The device supports a wide AC supply voltage range and integrates switching capability for direct control of loads. Its compact dimensions allow installation in constrained spaces while the lateral-optic design provides targeted sensing for conveyor lines, machine guards and process monitoring.

Advantages

The sensor offers multi-voltage AC operation, enabling use across installations with supply voltages from low to high mains. A robust black plastic housing provides mechanical protection and resistance to typical industrial contaminants. Built-in switching with up to 3 A output current removes the need for additional relays in many applications. Lateral optics allow reliable side-facing detection and the compact footprint (25×70×100 mm) simplifies mounting in restricted locations.

Suitable for

• Conveyor belt object detection and sorting
• Machine safety and presence sensing at side-access points
• Outdoor or harsh-environment sensing where robust packaging is needed
• General automation tasks requiring multi-voltage compatibility

Key specifications

• Operating voltage: 24–240 V AC
• Maximum switching current: 3 A
• Operating frequency: 0.025 kHz
• Housing material: black plastic
• Optical orientation: lateral optics (side-facing)
• Dimensions: 25 × 70 × 100 mm
• Integrated relay/timing function for delayed switching

How to use

Mount the sensor with its lateral optics aligned to the target path so the sensing beam crosses the intended detection zone. Connect the AC supply within the specified 24–240 V range using the terminal block, observing correct wiring and grounding practices. Use the built-in switching output to drive loads up to the maximum current rating or interface with auxiliary control equipment. Adjust installation position and alignment to ensure consistent detection across the conveyor or machine opening.

Recommendations

For reliable operation in harsh or outdoor environments, confirm that mounting minimizes direct exposure to water and debris, and verify that the sensing axis is free from obstructions. When switching inductive loads, consider using appropriate suppression or an external contactor if currents approach the sensor's maximum rating. Regularly inspect the optical window and housing for contamination and clean as required to maintain detection performance.
