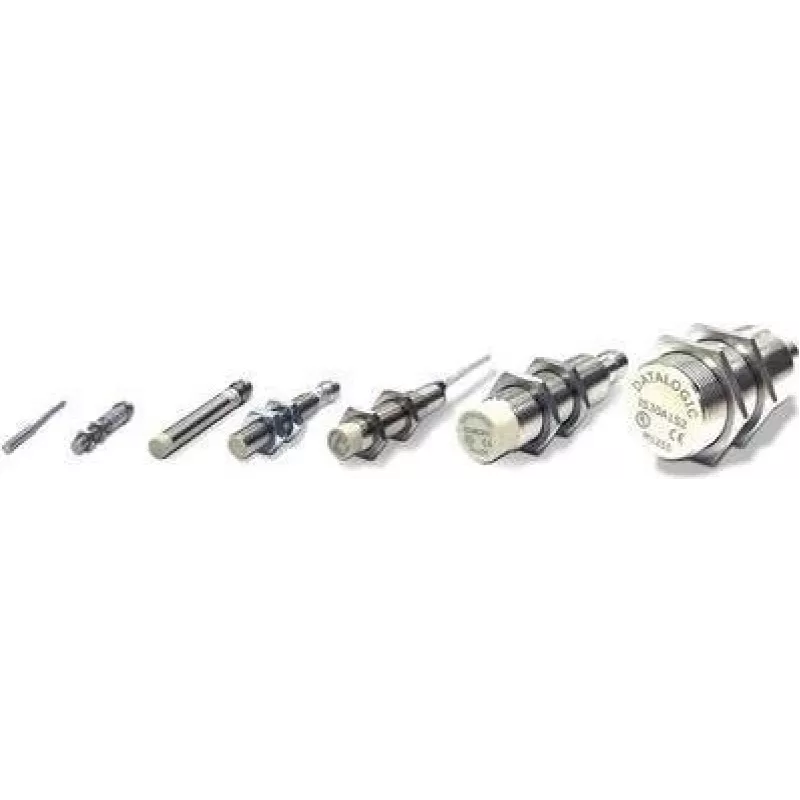

Photoelectric Sensor Datalogic BASIC M12, grey housing, brass body, 1 kHz frequency, 0.2 A max, 64 mm depth

Datalogic BASIC M12 is a photoelectric sensor with a compact grey plastic finish and a brass cylindrical body, designed for object detection and presence sensing in automation and conveyor systems. The sensor has a detection-related depth of 64 mm, operates at a switching frequency of 1 kHz and supports a maximum output current of 0.2 A. Its metal-bodied construction and relatively small size make it suitable for installations where a robust, compact sensor is required and where reliable detection of parts and products is needed.

Advantages

The brass body provides mechanical durability and good resistance to impact and wear, while the grey housing offers a compact profile that simplifies integration into machine frames and conveyor structures. The 1 kHz switching frequency enables reliable detection of moderately fast-moving targets, and the 0.2 A maximum current rating supports typical downstream switching loads. With a weight of approximately 110 g and a depth of 64 mm, the sensor is easy to mount in constrained spaces and maintain over time.

Suitable for

• Object detection on conveyors and handling lines
• Presence/absence sensing in assembly and packaging equipment
• Integration into compact machine frames where metallic housings are preferred
• Applications requiring moderate switching speed and low to moderate output current

Key specifications

• Sensor type: photoelectric sensor
• Housing material: brass body with grey external finish
• Detection depth: 64 mm
• Switching frequency: 1 kHz
• Maximum output current: 0.2 A
• Weight: 110 g

How to use

Mount the sensor so its optical axis faces the target path and ensure the sensing area is free of obstructions or reflective surfaces that could cause false readings. Connect the sensor according to the manufacturer's wiring scheme and verify supply voltage compatibility with the control system. Adjust the sensor position to achieve reliable detection at the specified 64 mm depth, and perform functional tests with representative parts at the expected conveyor speed to confirm switching at the 1 kHz rate.

Recommendations

For stable operation, provide secure mechanical mounting to minimize vibration, keep the sensing window clean of dust and debris, and avoid mounting near strong sources of ambient light or reflections that can interfere with photoelectric detection. Select appropriate wiring protection and fusing to match the 0.2 A maximum output current and follow periodic inspection routines to maintain reliable performance.
