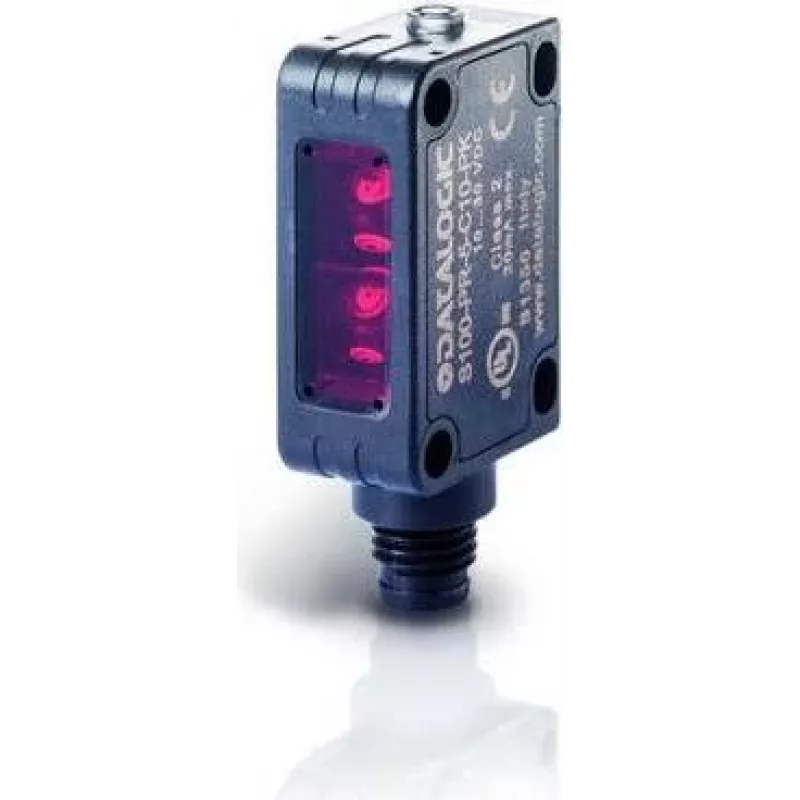

Photoelectric sensor Datalogic S100-PR-2-D00-PK, black plastic housing, IP67, 12×20×32 mm

Datalogic S100-PR-2-D00-PK is a compact photoelectric sensor in a black plastic housing with IP67 protection. Measuring 12×20×32 mm, it is designed for reliable object detection and basic automation tasks where a small, sealed sensor is required. The S100 series is a miniature standard family with four fixing holes (two threaded on the front and two slotted on the rear) that simplify mounting in confined spaces. The housing and ingress protection make the sensor suitable for environments with dust and moisture exposure while maintaining a compact footprint.

Advantages

The sensor’s small dimensions and robust IP67-rated enclosure allow installation in tight or exposed locations without sacrificing protection against dust and water. The fixed optical adjustment eliminates the need for mechanical tuning during installation and reduces the risk of accidental tampering. Universal mounting options provide flexibility for different equipment arrangements. IO-Link programmability with the Datalogic ASIC enables configuration and precise adjustment via communication when supported, while dual output channels ensure reliable signaling without digital output jitter during communication.

Suitable for

• Presence/absence detection of parts on conveyors and assembly lines
• Object detection in compact automated equipment and machines
• Integration in systems operating in dusty or moist industrial environments
• Applications requiring small, sealed sensors with simple mounting options

Key specifications

• Sensor type: photoelectric (proximity/contrast variants available in the series)
• Housing material: black plastic
• Ingress protection: IP67
• Dimensions (W×D×H): 12×20×32 mm
• Mounting: four fixing holes (two threaded front, two slotted rear)
• Outputs: dual output channels; IO-Link programmability supported by ASIC
• Adjustment: fixed optics (no mechanical adjustment on the device)

How to use

Mount the sensor using the provided threaded and slotted fixing points to align it with the target path. Connect the sensor to the control system following standard wiring practices for photoelectric sensors and observe polarity and supply requirements of your system. If your system supports IO-Link, configure detection parameters and output behavior through the IO-Link master or appropriate configuration tool to match the application. Verify detection by running test cycles and adjust the sensor position if necessary to obtain consistent switching.

Recommendations

Install the sensor where it is protected from direct mechanical impact and where the optical path is kept free of obstructions. For installations in heavy contamination conditions, schedule periodic cleaning of the sensing window and verify sealing of cable entries. When using IO-Link, manage configuration centrally and document parameter sets to ensure repeatable performance across replacements.
