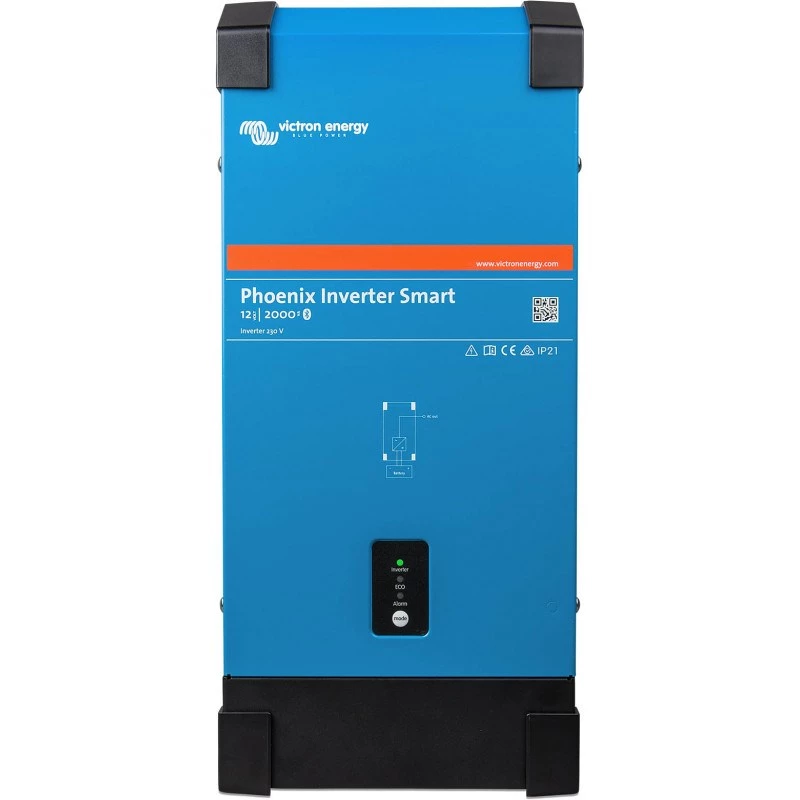

Phoenix Inverter 12/2000 Smart 2000VA 1600W Pure Sine Wave Inverter

The Phoenix Inverter 12/2000 Smart is a professional pure sine wave inverter designed for mobile and off-grid applications. With a continuous power output of 2000VA/1600W at 25°C and a peak power of 4000W, it delivers reliable AC power from a 12V DC source. Featuring Bluetooth Smart and VE.Direct communication, this inverter allows for easy monitoring and configuration via the VictronConnect app.

Advantages

High efficiency of up to 92% reduces power loss and heat generation. The adjustable output voltage (210-245V) and frequency (50/60Hz) provide flexibility for various loads. Built-in protection against overload, short circuit, battery over/under voltage, and over temperature ensures safe operation. The remote on/off capability allows for convenient control.

Suitable for

• Mobile installations in boats, RVs, and vehicles
• Off-grid solar systems
• Backup power for sensitive electronics
• Professional and industrial applications requiring pure sine wave output

Key specifications

• Input Voltage: 12V DC (9.2 - 17V)
• Output Voltage: 230V AC (adjustable 210-245V)
• Continuous Power @ 25°C: 2000VA / 1600W
• Peak Power: 4000W
• Output Waveform: True Sine Wave
• Maximum Efficiency: 92%
• Zero-load Power: 15W
• Output Frequency: 50Hz (adjustable 50/60Hz)
• Communication: Bluetooth Smart, VE.Direct
• Protection: Overload, Short Circuit, Battery Over/Under Voltage, Over Temperature
• Operating Temperature: -40 to +65°C
• Enclosure Protection: IP21
• DC Connection: M8 bolts
• Recommended DC Fuse: 300A
• Remote On/Off: Yes
• Topology: High Frequency

Recommendations

For optimal performance, use a suitable DC fuse (300A recommended) and ensure proper ventilation. The inverter can be monitored and configured via the VictronConnect app using Bluetooth or a VE.Direct interface.
