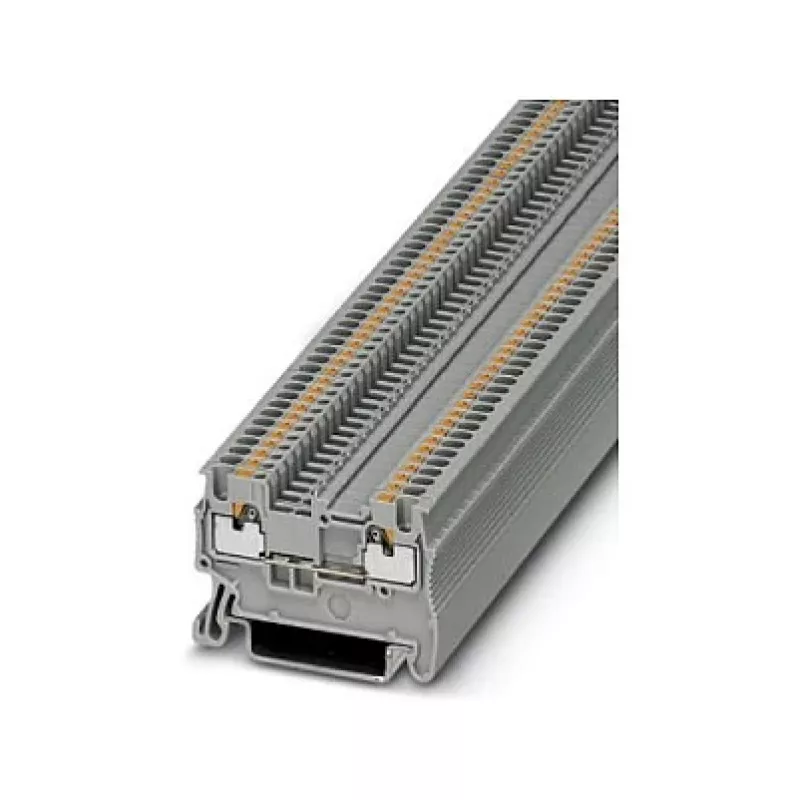

Phoenix 3208100 PT 1,5/S Feed-Through Terminal Block, Push-in, 1.5 mm², Gray

The Phoenix 3208100 PT 1,5/S stands out with its push-in connection technology, allowing tool-free wiring of solid and stranded conductors up to 1.5 mm². This single-level feed-through terminal block is engineered for high-density DIN rail installations, offering a compact footprint without sacrificing electrical performance. Its gray polyamide housing ensures durability and meets UL 94 V0 flammability standards, making it suitable for demanding industrial environments.

Highlights

• Push-in connection for fast, tool-free wiring
• Nominal cross section: 1.5 mm² (solid/stranded)
• Rated voltage/current: 500 V / 17.5 A (IEC)
• Mounts on NS 35/7.5 or NS 35/15 DIN rails
• UL 94 V0 flame-retardant polyamide housing

In daily use

Installation is straightforward: simply strip the conductor to 8–10 mm and insert it into the terminal point. The push-in mechanism grips the wire securely, reducing wiring time and eliminating the need for special tools. The terminal block's compact design allows high-density mounting, while its wide operating temperature range (-60 °C to 105 °C) ensures reliable performance in harsh conditions. The gray housing provides clear visual identification in control cabinets.

Full specifications

• Connection technology: Push-in
• Number of positions: 1
• Number of connections: 2
• Conductor cross section solid: 0.14–1.5 mm²
• Conductor cross section stranded: 0.14–1.5 mm²
• AWG range: 26–16
• Stripping length: 8–10 mm
• Insulating material: PA (polyamide)
• Flammability rating: UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Rated surge voltage: 6 kV
• Number of levels: 1

Final note

With its robust construction and tool-free wiring, the Phoenix 3208100 PT 1,5/S is a reliable choice for control panel builders and machine manufacturers seeking efficiency and safety.
