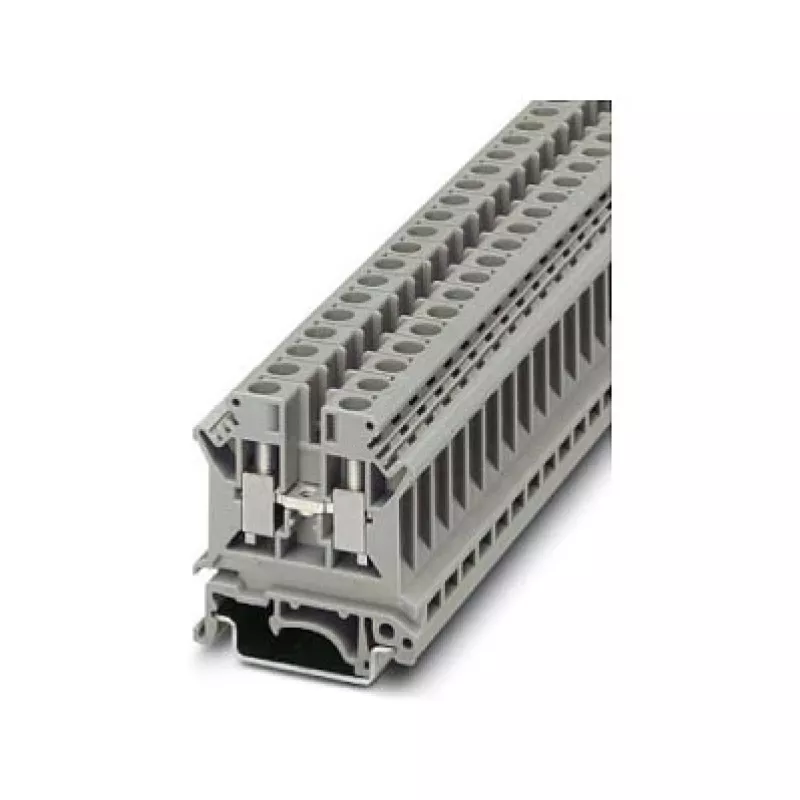

Phoenix 3004524 UK 6 N Feed-Through Terminal Block, Screw Connection, 6 mm², Gray

In industrial control panels and distribution boards, reliable wire termination is critical for safety and uptime. The Phoenix 3004524 UK 6 N feed-through terminal block solves this need with a compact, screw-clamp design that securely connects two conductors up to 6 mm². Its gray polyamide housing snaps onto standard DIN rails, making it an ideal choice for building tidy, serviceable terminal strips in automation, machine building, and electrical installation projects.

Who is it for

This terminal block is intended for panel builders, electricians, and maintenance technicians who need a dependable, space-saving connection point for power and control wiring. It suits applications where conductors must be joined or distributed on a DIN rail, especially in environments with vibration or where periodic rewiring is expected.

Main features

• Feed-through design with 2 screw connections for straightforward wiring
• Accepts conductors from 0.2 to 6 mm² (AWG 20–8), solid or stranded
• Rated for 800 V IEC and 41 A, suitable for many industrial circuits
• Polyamide (PA) insulating body, UL 94 V0 flammability rated
• Mounts on NS 35/7.5, NS 35/15, or NS 32 DIN rails
• Wide operating temperature range: -60 °C to +105 °C
• M3 screw with 0.8–1 Nm tightening torque for secure clamping

Specifications

• Type: Feed-through terminal block
• Connection method: Screw connection
• Number of connections: 2
• Number of positions: 1
• Number of levels: 1
• Nominal cross section: 6 mm²
• AWG range: 20–8
• Nominal voltage (IEC): 800 V
• Nominal current (IEC): 41 A
• Insulating material: Polyamide (PA)
• Color: Gray
• Mounting type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Stripping length: 10 mm
• Screw thread: M3
• Tightening torque: 0.8–1 Nm
• Operating temperature: -60 °C to +105 °C
• Flammability rating: UL 94 V0
• Pollution degree: 3

Tips

For reliable connections, strip the conductor to 10 mm and tighten the M3 screw to the recommended torque. Use a suitable screwdriver to avoid damaging the screw head. When mounting, ensure the terminal block clicks securely onto the DIN rail. For stranded wires, consider using ferrules to prevent fraying and improve contact.
