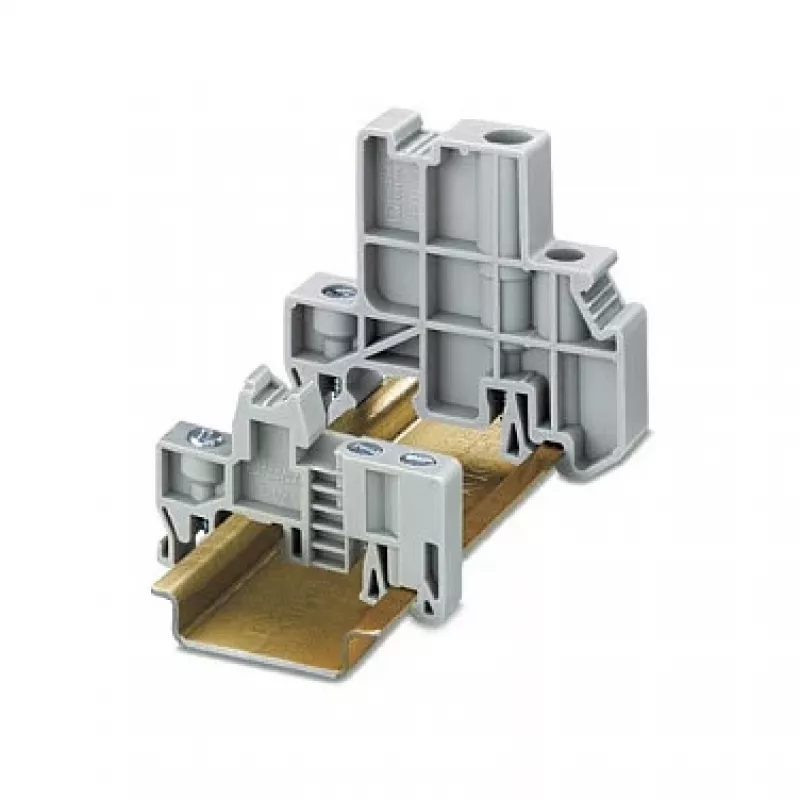

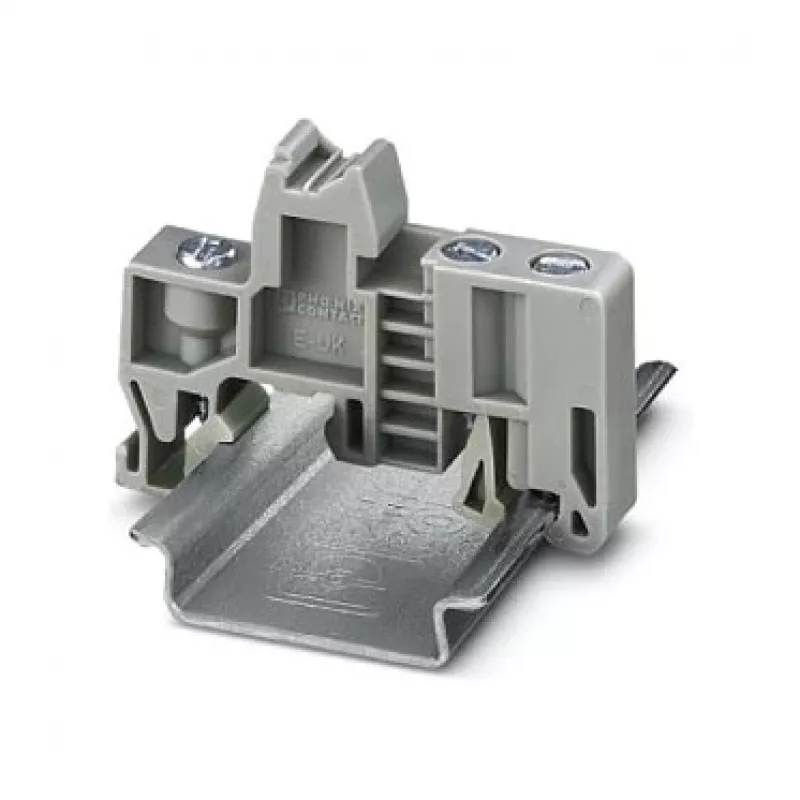

Phoenix 1201442 End Bracket E/UK for DIN Rail Mounting

End bracket for DIN rail mounting, providing secure fixation of terminal blocks and other components on NS 35/7.5 and NS 35/15 rails. Its snap-on design ensures quick, tool-free installation, making it an essential accessory for industrial control panels and electrical enclosures.

Advantages

The Phoenix 1201442 End Bracket E/UK is crafted from high-quality polyamide (PA) with a flammability rating of UL 94 V0, offering excellent mechanical strength and fire resistance. It operates reliably across a wide temperature range from -60 °C to 105 °C, suitable for demanding environments. The halogen-free and lead-free construction meets RoHS and REACH compliance, ensuring environmental safety. Its compact dimensions (42.5 mm x 9.5 mm x 47 mm) allow for space-efficient assembly, while the gray color integrates seamlessly with standard DIN rail components.

Suitable for

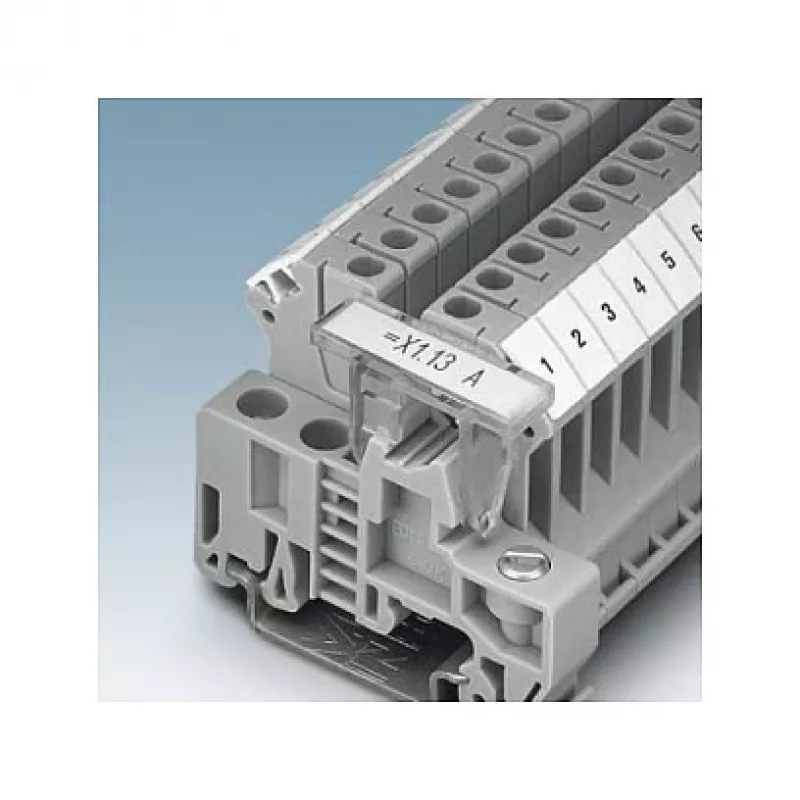

• Securing terminal blocks on DIN rails in control cabinets
• Mounting interface modules, relays, and other DIN rail devices
• Industrial automation and power distribution systems
• Applications requiring vibration-resistant fixation
• Use with NS 35/7.5 and NS 35/15 DIN rails

Key specifications

• Product type: End bracket
• Mounting type: DIN rail (snap-on)
• DIN rail compatibility: NS 35/7.5, NS 35/15
• Material: Polyamide (PA), insulating material group I
• Flammability rating: UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Approvals: UL, cUL, EAC, VDE
• Compliance: RoHS, REACH, halogen-free, lead-free
• Dimensions (L x W x H): 42.5 mm x 9.5 mm x 47 mm
• Number of positions: 1

Recommendations

For optimal performance, pair this end bracket with Phoenix Contact terminal blocks and DIN rails of the specified sizes. Ensure the rail is clean and free of debris before snapping the bracket into place. Use one bracket at each end of the terminal block assembly to prevent lateral movement and maintain electrical isolation.
