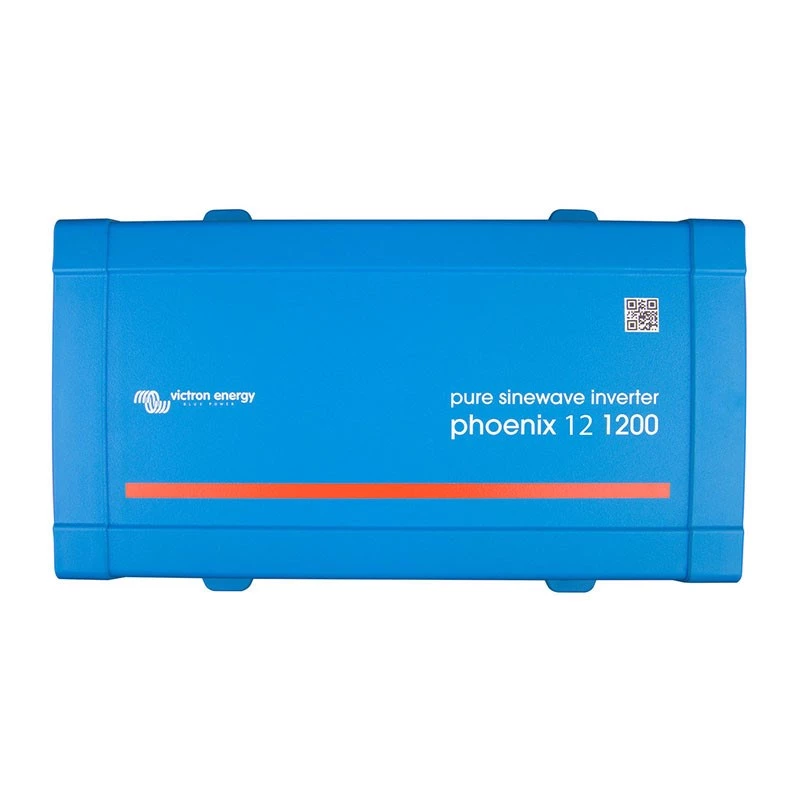

Phoenix 12/1200 VE.Direct Schuko 1200VA True Sine Wave Inverter

Delivering a true sine wave output with a peak power of 2400 VA, the Phoenix 12/1200 VE.Direct Schuko inverter from Phoenix Contact is engineered for demanding AC loads that require clean, stable power. Its high-frequency topology and 92% maximum efficiency ensure minimal energy loss, while the wide 9.2–17 V DC input range makes it compatible with various 12 V battery systems, including lithium and lead-acid chemistries.

Overview

The Phoenix 12/1200 VE.Direct Schuko is a robust inverter designed for mobile, off-grid, and backup power applications. It converts 12 V DC battery power into 230 V AC at 50 Hz, providing a continuous output of 1200 VA (1000 W). The pure sine wave output (< 3% THD) guarantees compatibility with sensitive electronics, motors, and appliances that may malfunction with modified sine wave inverters.

What stands out

• True sine wave output – clean power for all AC loads, including inductive and capacitive devices.
• High surge capability – 2400 VA peak power handles startup currents of motors and compressors.
• VE.Direct communication port – enables remote monitoring and configuration via compatible devices.
• Wide operating temperature range – from -40 °C to +65 °C for reliable performance in extreme environments.
• Comprehensive protection – safeguards against short circuit, overload, high/low battery voltage, over-temperature, and DC ripple.

Technical details

• Input voltage: 12 V DC (range 9.2–17 V DC)
• Output voltage: 230 V AC ± 3%
• Continuous power: 1200 VA / 1000 W
• Peak power: 2400 VA
• Output frequency: 50 Hz ± 0.1%
• Efficiency: up to 92%
• No-load consumption: 7 W
• Total harmonic distortion: < 3%
• Output socket: 1x Schuko (Type F)
• Protection rating: IP21
• Remote on/off: Yes
• Topology: High frequency

Our verdict

For professionals and enthusiasts who demand pure sine wave power in a compact, efficient package, the Phoenix 12/1200 VE.Direct Schuko is an outstanding choice. Its advanced communication, rugged design, and comprehensive protection make it a reliable power solution for marine, RV, solar, and industrial applications.
