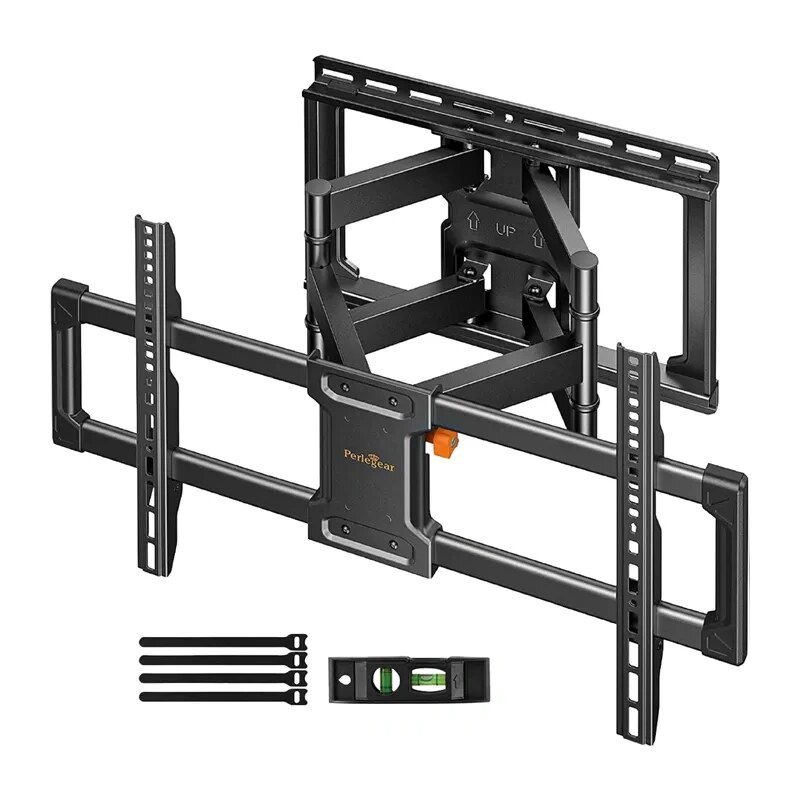

Perlegear PGLF8B-N1 TV Mount

The Perlegear PGLF8B-N1 TV Mount is a full-motion wall mount designed for flat and curved TVs with screen sizes from 42 to 90 inches and a maximum load of 68 kg. It supports VESA patterns from 200 × 100 to 600 × 400 mm and offers a swivel range of ±50°, tilt from +5° to -15°, and post-installation level adjustment of ±3°.

Key features

• Full-motion design with dual-jointed arms
• Swivel range: ±50°
• Tilt range: +5° to -15°
• Post-installation level adjustment: ±3°
• Extendable from 76.2 mm to 421.6 mm from the wall
• Double steel arms, 30% thicker according to the manufacturer
• Locking mechanism and end caps
• Includes cable management straps
• Installation on solid concrete, brick, and stud walls with studs spaced 16" (approx. 40.6 cm) apart

Specifications

• Brand: Perlegear
• Model: PGLF8B-N1
• MPN: PGLF8B-N1-EU
• Type: Full-motion TV wall mount
• Compatible TVs: Flat and curved
• TV screen size: 42–90"
• Maximum load: 68 kg
• VESA: 200 × 100 to 600 × 400 mm
• Supported VESA sizes: 200 × 100, 200 × 200, 200 × 300, 200 × 400, 300 × 200, 300 × 300, 300 × 400, 400 × 200, 400 × 300, 400 × 400, 500 × 400, 600 × 400 mm
• Horizontal rotation: ±50°
• Tilt: +5° / -15°
• Post-installation level adjustment: ±3°
• Maximum projection from the wall: 421.6 mm
• Minimum distance from the wall: 76.2 mm
• Construction: Double steel arms
• Arms: 30% thicker according to the manufacturer’s specifications
• Installation: Solid concrete, brick, and stud walls with studs spaced 16" (approx. 40.6 cm) apart
