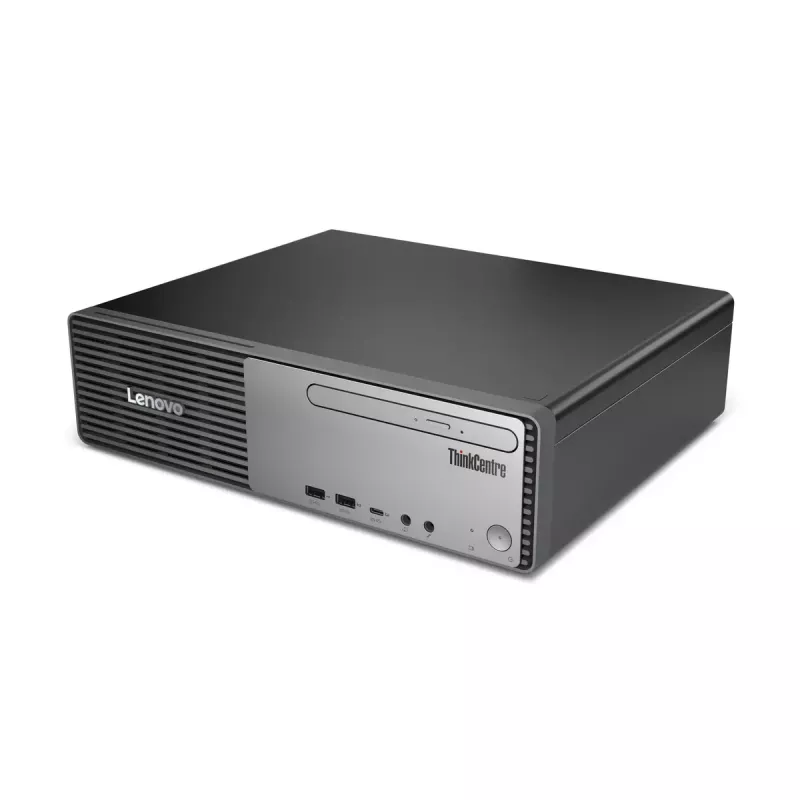

PC Lenovo ThinkCentre neo 30s Gen 5 — Intel Core i7-13620H, 16GB DDR5, 512GB NVMe SSD, Intel UHD, Windows 11 Pro, SFF

The Lenovo ThinkCentre neo 30s Gen 5 is a compact SFF desktop designed for office and business productivity. It is powered by a 13th‑generation Intel Core i7-13620H processor with up to 4.9 GHz turbo frequency, 16 GB of DDR5 memory in a dual-channel capable configuration, and a 512 GB NVMe PCIe 4.0 SSD. Integrated Intel UHD Graphics provides everyday display capabilities while a range of connectivity options — including Wi‑Fi 6, Bluetooth 5.2, Gigabit Ethernet, HDMI 2.1, USB-C and multiple USB ports — supports peripherals and networks. The system ships with Windows 11 Pro and includes a wired keyboard and mouse, Kensington lock slot and TPM 2.0 for hardware security.

Advantages

The small form factor minimizes footprint while offering a full set of ports and expansion potential, including two SO-DIMM memory slots supporting up to 64 GB DDR5 and an M.2 PCIe 4.0 NVMe SSD slot for fast storage. The 13th‑gen Intel Core i7 delivers a mix of performance and efficiency with 10 cores (6 performance + 4 efficient) and a 24 MB Smart Cache to handle multitasking and business applications. Built‑in security features such as TPM 2.0 and BIOS password protection, together with a Kensington lock slot, provide hardware-level protection for business deployments.

Suitable for

• Office productivity and administrative tasks
• Business workstations for knowledge workers and managers
• Multitasking with productivity suites and web-based applications
• Video calls, presentations and light multimedia editing
• Networked environments requiring secure endpoint management

Key specifications

• Processor: Intel Core i7-13620H, 10 cores (6P + 4E), up to 4.9 GHz turbo, 24 MB Smart Cache
• Memory: 16 GB DDR5 (1 x 16 GB), dual-channel capable, upgradable to 64 GB; 5200 MHz
• Storage: 512 GB M.2 NVMe SSD, PCIe 4.0
• Graphics: Integrated Intel UHD Graphics
• Form factor: Small Form Factor (SFF), volume 8.2 L; chassis in black and grey
• Networking: Wi‑Fi 6 (2x2), Bluetooth 5.2, Gigabit Ethernet (10/100/1000Base-T)

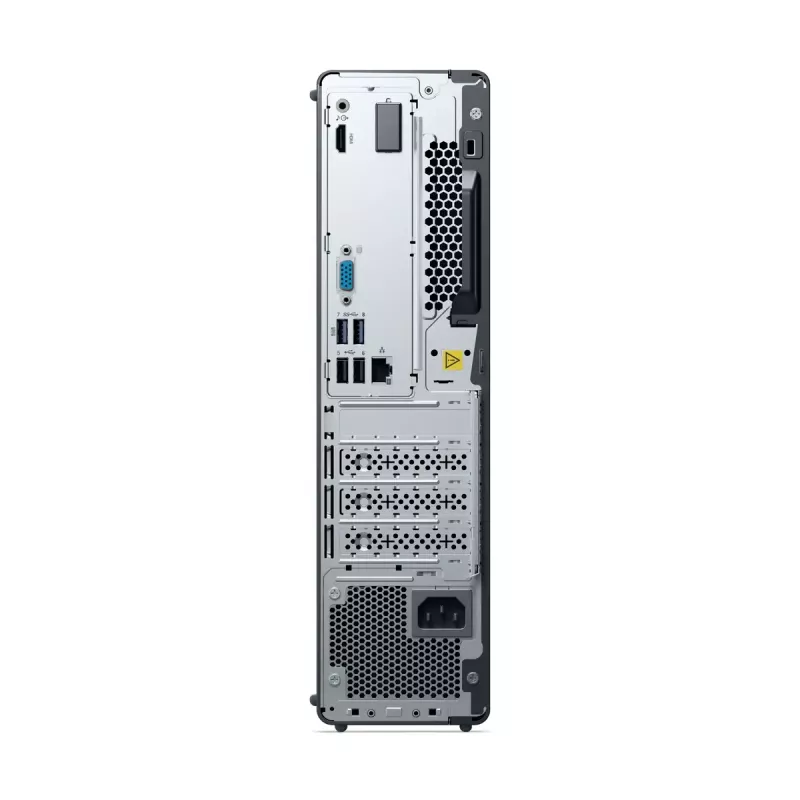

• Ports: HDMI 2.1, VGA (D-Sub), 1x USB-C (USB 3.2 Gen1), 4x USB 3.2 Gen1 Type-A, 2x USB 2.0, RJ-45, combo audio
• Security & manageability: TPM 2.0, BIOS password protection, Kensington lock slot
• Operating system: Windows 11 Pro (English)
• Physical: Weight 4.63 kg; dimensions W 92.5 mm x D 291.7 mm x H 339.5 mm; power supply 180 W
• Environmental: Operating temperature 5–35 °C; operating altitude up to 3,048 m
• Included accessories: Wired keyboard and wired mouse
• Certifications: TCO sustainability certificate

How to use

Position the ThinkCentre neo 30s Gen 5 on a stable, well‑ventilated surface either vertically or in the supported orientation. Connect power, network (Ethernet or configure Wi‑Fi 6) and display via HDMI 2.1 or VGA depending on your monitor. Attach the included wired keyboard and mouse to available USB ports. On first boot, follow Windows 11 Pro setup to create user accounts, configure updates and apply security policies. Use the available SO‑DIMM slots if memory expansion is required and the M.2 slot for additional or larger NVMe storage. For remote management and security, enable TPM 2.0 and configure BIOS password protection as needed.

Recommendations

For sustained performance, place the system where airflow is not obstructed and ensure ambient temperatures remain within the specified 5–35 °C range. For business environments, keep firmware and operating system updates current, use the Kensington lock in shared spaces, and consider upgrading to 32–64 GB DDR5 when running large datasets or heavier multitasking workloads.
