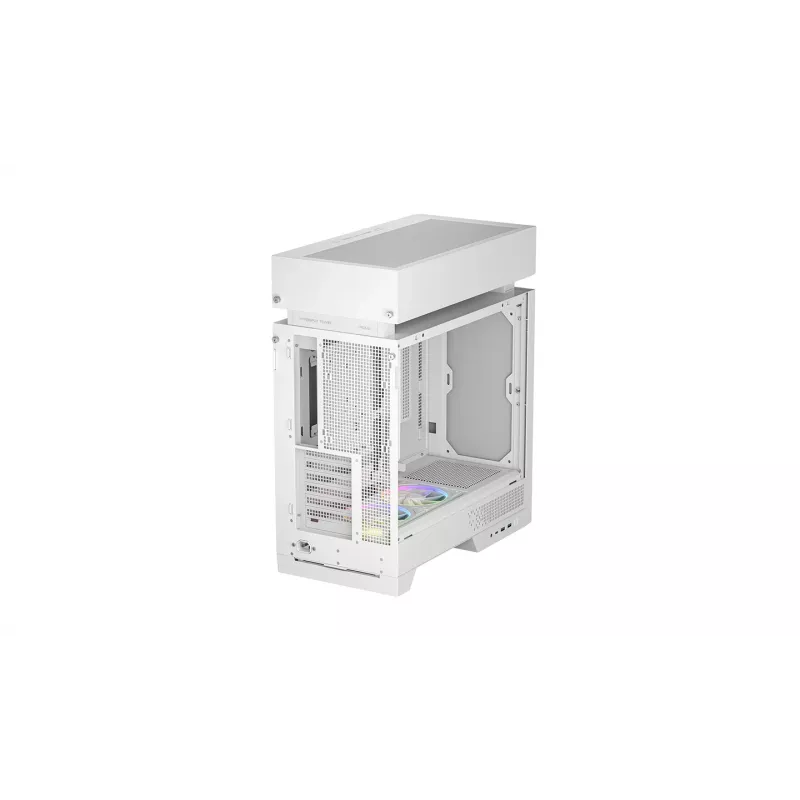

PC case DeepCool CL660 WH White — ATX/Micro-ATX/Mini-ITX, tempered glass, supports ATX/PS2/SFX/SFX‑L PSU

DeepCool CL660 WH is a white mid-tower PC case designed for ATX, Micro‑ATX and Mini‑ITX motherboards. The case features a tempered glass side panel, a split-chamber internal layout for optimized airflow, and support for multiple power supply form factors including ATX, PS2, SFX and SFX‑L. Storage options include two 3.5" drive bays and one 2.5" bay. Front vertical grille bars and a raised top chamber combine functional ventilation with a modern aesthetic, while pre-installed bottom fans provide intake airflow and subtle illumination. Overall dimensions are 235 × 457.5 × 533.5 mm.

Advantages

The modular split-chamber design separates heat-generating components from the radiator zone, improving thermal efficiency and enabling more predictable airflow paths. The tempered glass side panel offers a clear view of the interior without compromising structural rigidity. Support for multiple PSU form factors and long GPUs increases compatibility for a wide range of builds. Pre-installed intake fans and dust filtration reduce initial setup time and simplify maintenance.

Suitable for

• Custom gaming rigs with ATX, Micro‑ATX or Mini‑ITX motherboards
• Workstations requiring additional storage and effective cooling
• Compact high-performance builds using SFX or SFX‑L power supplies
• Showcase systems that use a tempered glass side panel and internal illumination

Key specifications

• Supported motherboard form factors: ATX, Micro‑ATX, Mini‑ITX
• External dimensions (W × H × D): 235 × 457.5 × 533.5 mm
• Drive bays: 2 × 3.5" and 1 × 2.5"
• Side panel: Tempered glass
• Material: Tempered glass, SPCC steel, ABS plastic
• Cooling support: front up to 360 mm AIO / multiple fan configurations; top 120/140 mm; rear 120/140 mm; up to eight 120 mm fans total
• Maximum GPU length: up to 388 mm
• Maximum CPU cooler height: up to 175 mm
• Maximum standard ATX PSU length supported: up to 160 mm
• Front I/O: 2 × USB 3.2 Gen 1 (Type‑A)
• Weight: 10.02 kg
• Colour: White

How to use

Install the selected motherboard into the pre‑drilled standoffs, then mount the PSU according to the chosen form factor orientation (ATX, PS2, SFX or SFX‑L). Secure storage drives in the dedicated 3.5" and 2.5" bays and route power and data cables through the provided cable management openings. Fit radiators and fans in recommended positions — front for larger AIO radiators and top or rear for exhaust — following manufacturer guidance for push/pull configurations. After installing components, verify clearance for GPU length and CPU cooler height before final cable management and closing the tempered glass panel.

Recommendations

For optimal thermal performance, use the split-chamber layout by placing the radiator and intake fans in the front lower zone while keeping power delivery and storage components in the rear chamber. Regularly clean filters and maintain unobstructed airflow paths. When using high-TDP components, consider a push–pull fan configuration on the radiator and ensure adequate exhaust at the top or rear.
