PC case DeepCool CH690 DIGITAL Tower Black — ATX/Micro-ATX/Mini-ITX, LCD display, 3x2.5 inch + 1x3.5 inch bays, up to 450 mm GPU, 182 mm CPU cooler

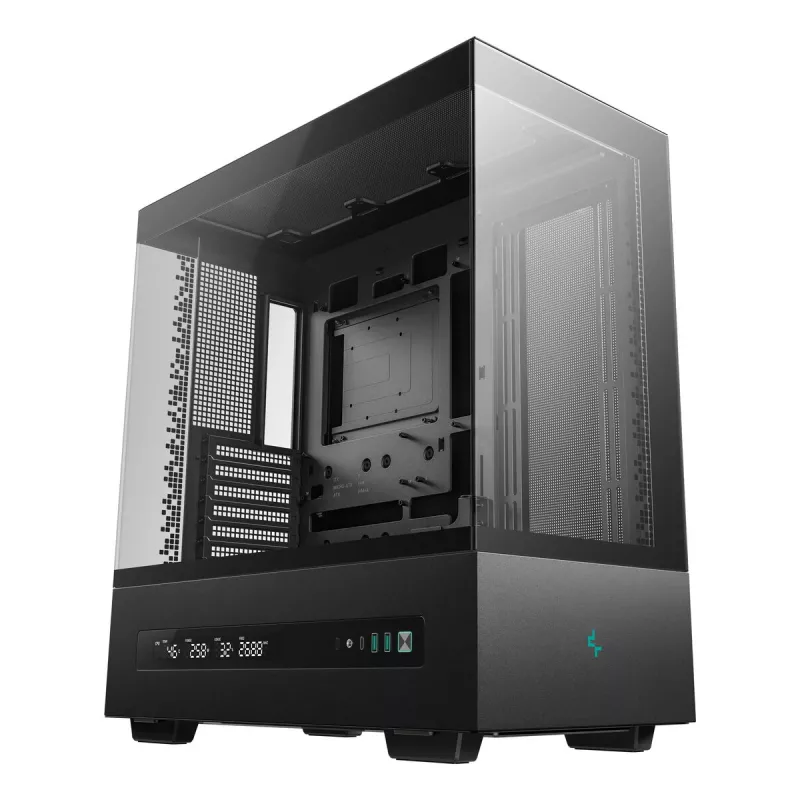

The DeepCool CH690 DIGITAL Tower Black combines a semi-glass side panel with modular options to balance aesthetics and airflow. The case includes an integrated digital display for real-time monitoring of CPU, GPU and PSU statistics. It supports large components — up to a 450 mm GPU and a 180 mm PSU — and offers multiple storage and expansion options suited for both gaming and professional builds.

Advantages

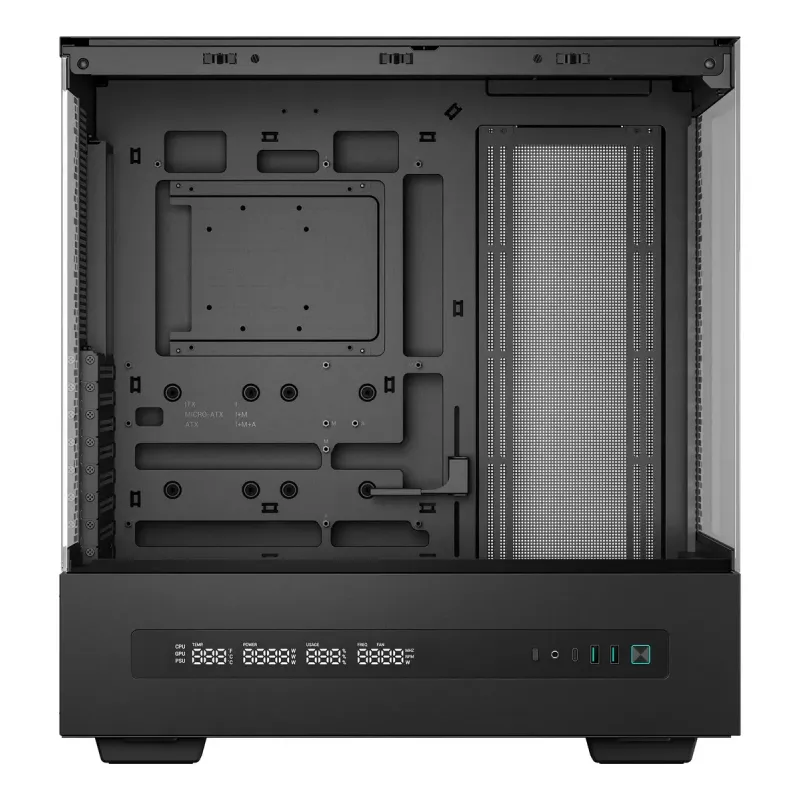

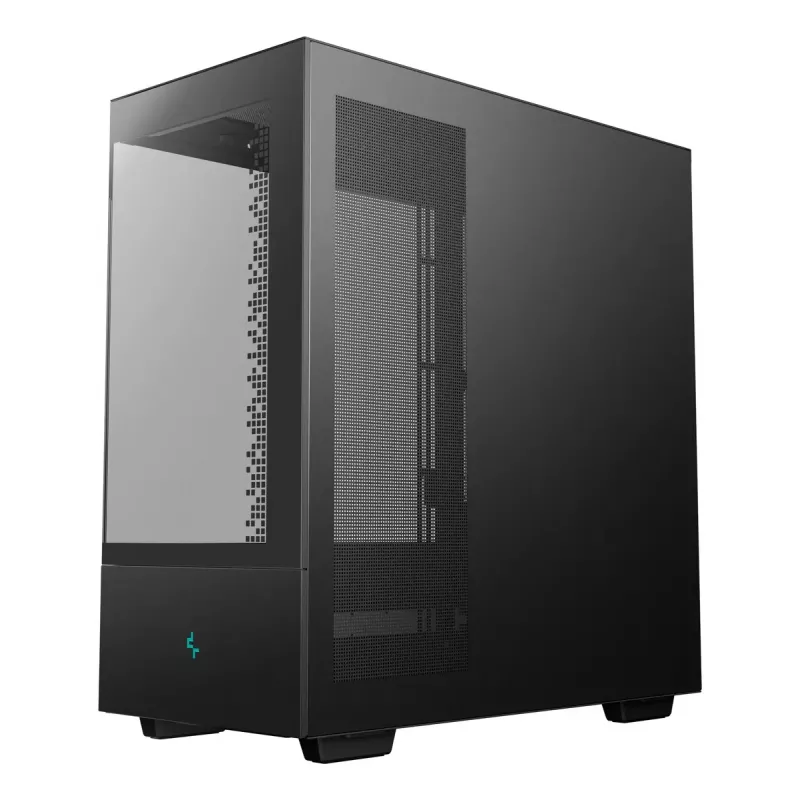

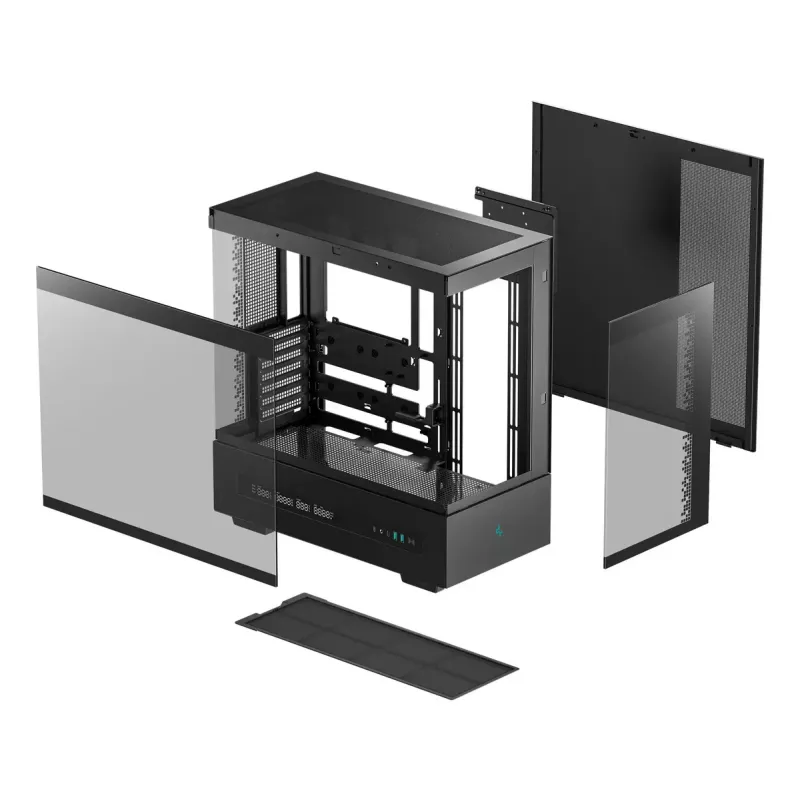

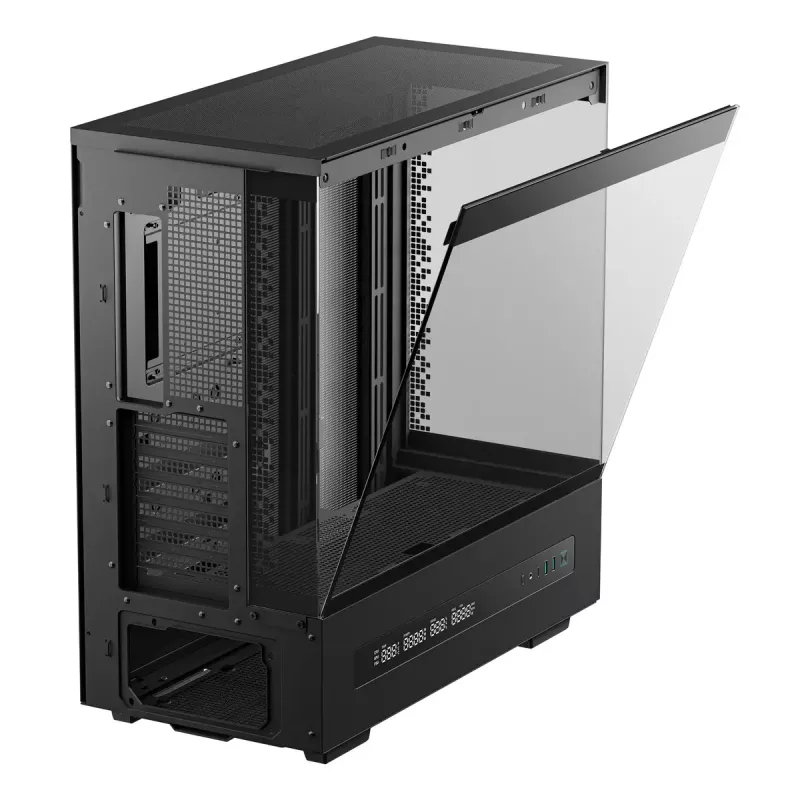

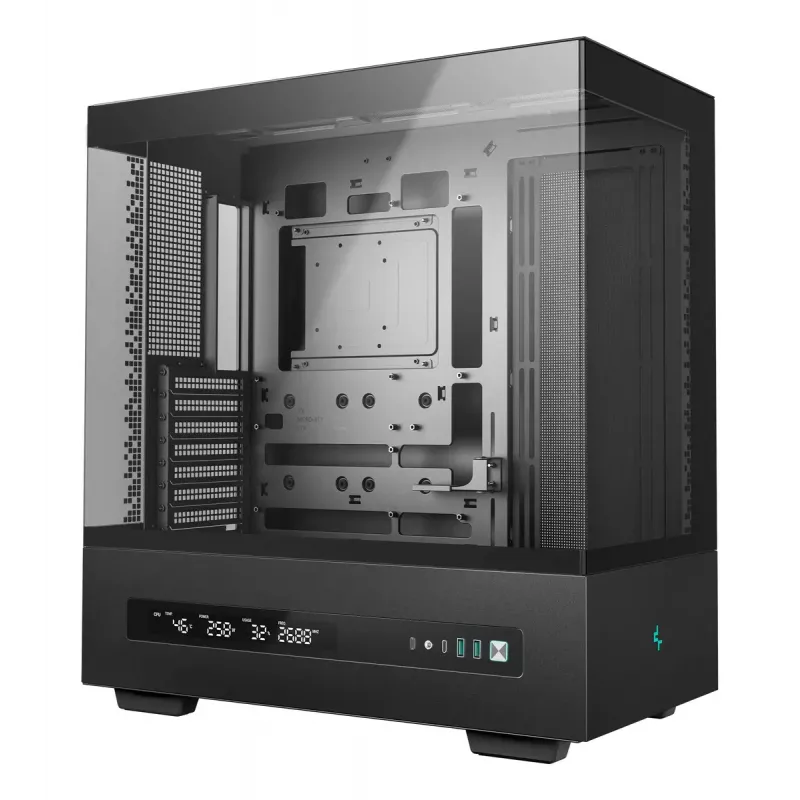

The semi-glass panel provides a wide view of installed components while remaining replaceable with a mesh panel and fan bracket for increased horizontal airflow. An integrated light strip slot allows adding illumination without obstructing internal layout. The front digital LCD provides switchable monitoring modes (CPU, GPU, PSU) with temperature readouts in °C or °F, power consumption, usage, frequency and fan speed data where applicable. The case also supports large radiators and multiple fan configurations to enable efficient cooling for high-performance systems.

Suitable for

• Custom gaming PCs with high-end GPUs (up to 450 mm)
• Workstations requiring multiple drives and expandability
• Systems that need active monitoring via an LCD display

Key specifications

• Supported motherboard sizes: Mini-ITX, Micro-ATX, ATX
• GPU clearance: up to 450 mm
• PSU length support: up to 180 mm
• CPU cooler height limit: up to 182 mm
• Drive bays: 1×3.5" and 2×2.5" (product attributes indicate 3×2.5" possible)

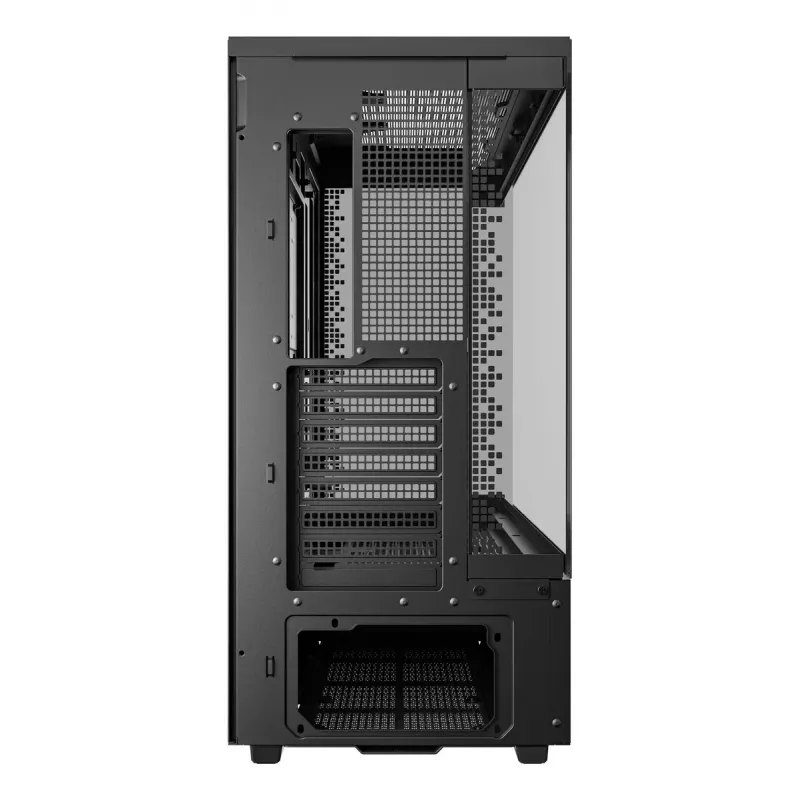

• Expansion slots: up to 8 removable slots
• Fan support: up to 3×140 mm (top, side, PSU shroud) and 1×140 mm rear; supports 120/140 mm configurations
• Radiator support: up to 420 mm (top), 280 mm (side), 360 mm (PSU shroud)
• Front I/O: 2× USB 3.2 Gen1 Type-A
• Materials: ABS, tempered glass, SPCC
• Colour: Black
• Weight: 9.8 kg

How to use

Install a compatible ATX, Micro-ATX or Mini-ITX motherboard and secure the PSU at the bottom. Mount storage drives into the 3.5" and 2.5" bays as required. Fit GPU and CPU cooler within the stated clearance limits and route cables through the available channels. If additional horizontal airflow is needed, remove the semi-glass panel and replace it with the optional mesh panel and fan bracket; install fans and radiators according to the supported positions. Configure the front LCD to display CPU, GPU or PSU data and choose Celsius or Fahrenheit for temperature readings.

Recommendations

For optimal cooling, combine top and side radiators with intake and exhaust fan placement to promote vertical and horizontal airflow. When installing a long GPU or tall CPU cooler, verify clearances before final assembly. Use the mesh panel and additional fans when prioritizing airflow over aesthetics.
