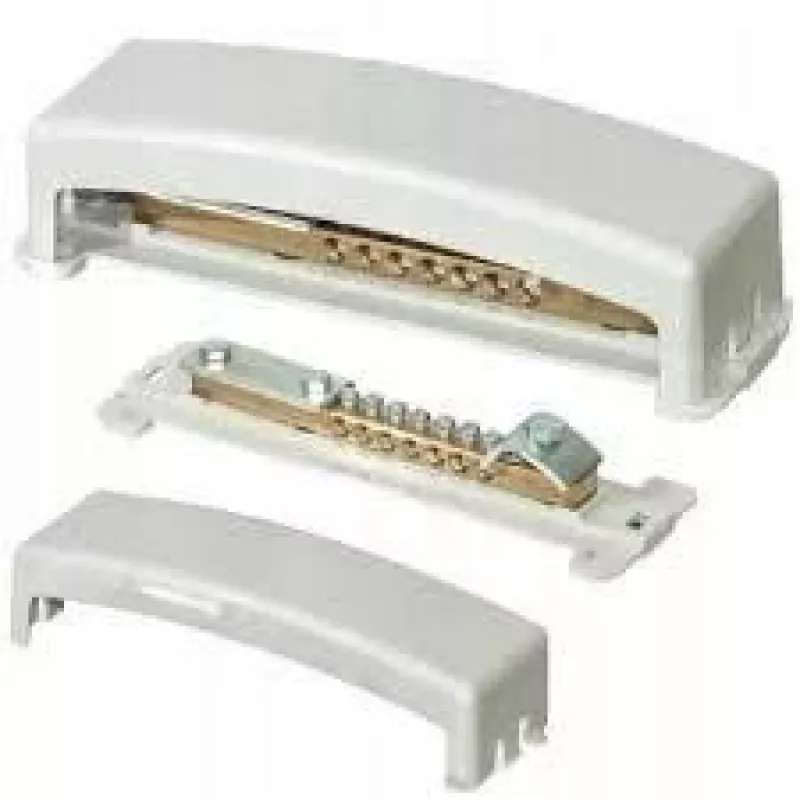

PAWBOL E.4104 Equipotential Bonding Bar, 8 Terminals, Grey

The PAWBOL E.4104 Equipotential Bonding Bar is a high-quality component designed for reliable equipotential bonding, grounding, and lightning protection systems. Manufactured by PAWBOL, this bonding bar ensures safe and efficient electrical connections in accordance with EN 62561-1 standards.

Advantages

This bonding bar offers robust construction with a brass bar and polystyrene housing, providing excellent conductivity and durability. With 8 terminals, it accommodates a wide range of conductor sizes, making it versatile for various installation requirements. The surface mount design simplifies installation, while the IP20 protection rating ensures safe operation in indoor environments.

Suitable for

• Equipotential bonding in electrical installations
• Grounding systems for buildings and structures
• Lightning protection systems
• Industrial and commercial electrical applications

Key specifications

• Product Type: Equipotential Bonding Bar
• Total Number of Terminals: 8
• Small Conductor Terminal Quantity: 5 (2.5 - 25 mm²)
• Large Conductor Terminal Quantity: 2 (2.5 - 50 mm²)
• Flat/Round Conductor Terminal Quantity: 1 (flat up to 30x4 mm, round 8-10 mm)
• Bar Material: Brass
• Base/Housing Material: Polystyrene
• Mounting Type: Surface Mount
• Protection Rating: IP20
• Colour: Grey
• Standards Compliance: EN 62561-1

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Verify conductor sizes and terminal compatibility before use. This product is intended for indoor use only.
