Patch panel EFB Elektronik 37736SW.12

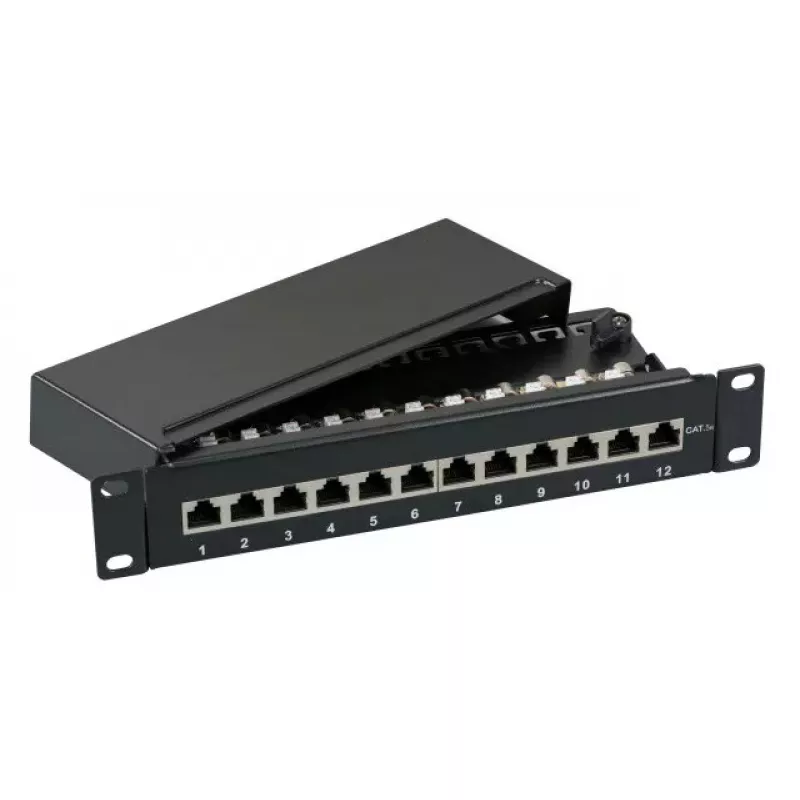

The EFB Elektronik 37736SW.12 patch panel is a 1U rack-mounted network interface designed to organize and centralize Ethernet connections in server rooms and network cabinets. It provides twelve RJ-45 ports with gold-plated contacts and supports data transfer rates up to 5000 Mbit/s. The unit’s black finish and 1U form factor make it compatible with standard 19-inch racks, enabling tidy cable management and quick access to patch points.

Advantages

The patch panel offers a compact 1U design that saves rack space while providing twelve accessible ports for horizontal or vertical cabling runs. Gold-plated contacts on the RJ-45 connectors improve signal reliability and resist corrosion, which helps maintain stable data transmission over time. Support for up to 5000 Mbit/s makes the panel suitable for higher-speed network segments and mixed-speed environments. Its black colour integrates with common rack equipment and helps maintain a uniform installation aesthetic.

Suitable for

• Small to medium enterprise network racks
• Server rooms and data closets
• Telecommunications and structured cabling installations
• Environments requiring organized patching and frequent port access

Key specifications

• Form factor: 1U rack-mounted
• Number of ports: 12 RJ-45 ports
• Connector type: RJ-45 with gold-plated contacts
• Maximum data transfer rate: 5000 Mbit/s
• Colour: Black

How to use

Install the patch panel in a standard 19-inch rack occupying 1U of vertical space and secure it with appropriate rack screws. Route horizontal cabling from network switches or devices to the rear or front of the panel as required by your cabling plan, and terminate each cable on the corresponding RJ-45 port. Label ports for identification and connect patch cords between the patch panel ports and active networking equipment to establish network links. Ensure cable bends comply with recommended bend radius for the cable class in use.

Recommendations

For best performance, pair the patch panel with quality shielded or unshielded Ethernet cabling rated for the intended network speed, and maintain organized cable management to reduce interference and ease maintenance. Periodically inspect gold-plated contacts for contamination and clean connectors with appropriate contact cleaner if needed.
