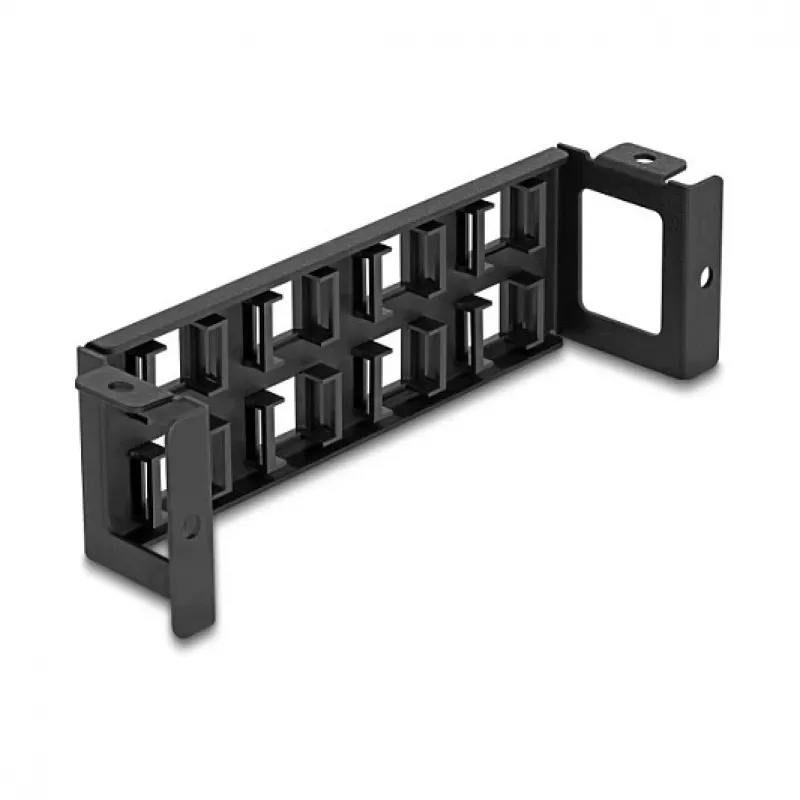

Patch panel DeLOCK 86517 Black Metal Plastic Wall mounting

The DeLOCK 86517 Black Metal Plastic Wall mounting patch panel is a compact, wall-mounted cable management unit designed for small network installations and tidy connection points. Its combination of metal and plastic construction provides a balance between durability and lightweight handling, and the black finish offers a discreet appearance suitable for offices, server rooms, or residential network closets. With a shallow depth and narrow width, the unit minimizes space usage while accommodating multiple connections.

Advantages

The panel's mixed metal and plastic construction ensures structural stability where needed while keeping overall weight low for easy wall mounting. Its black colour reduces visual impact in mounted installations and helps maintain a uniform look with other network hardware. The compact dimensions allow placement in restricted spaces without sacrificing the ability to manage multiple cable terminations. The device supports organized grouping of connections to simplify maintenance and reduce cable clutter.

Suitable for

• Small office or home network patching
• Wall-mounted network distribution points in server rooms or comms closets
• Temporary or permanent installations where space is limited
• Retrofit installations requiring a low-profile patch panel

Key specifications

• Ports quantity: 8
• Material: metal and plastic construction
• Colour: black
• Mounting type: wall mount
• Dimensions (W × H × D): 50 mm × 41.6 mm × 175 mm

How to use

Mount the patch panel securely to a flat vertical surface using appropriate screws or anchors for the wall material. Route network cables to the panel and terminate them according to the chosen connector type and wiring standard. Ensure cables are dressed neatly and fixed with cable ties or clips to prevent strain on connections. Label each port if necessary to simplify identification and ongoing maintenance.

Recommendations

Install the panel at an accessible height and allow clearance for cable routing and service. Use compatible connectors and standard wiring practices to ensure reliable signal transmission. Avoid over-tightening mounting hardware to prevent deformation of the panel housing.
